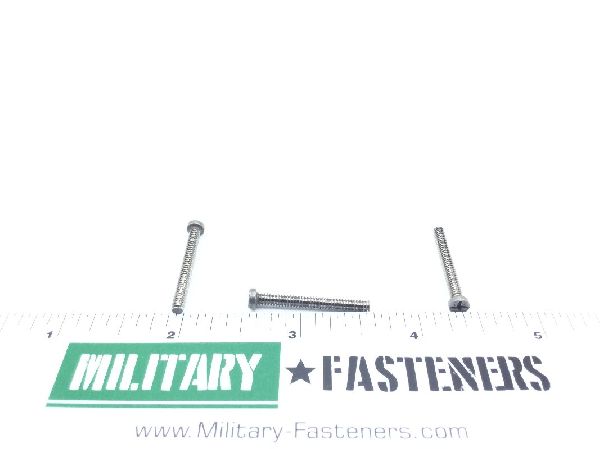

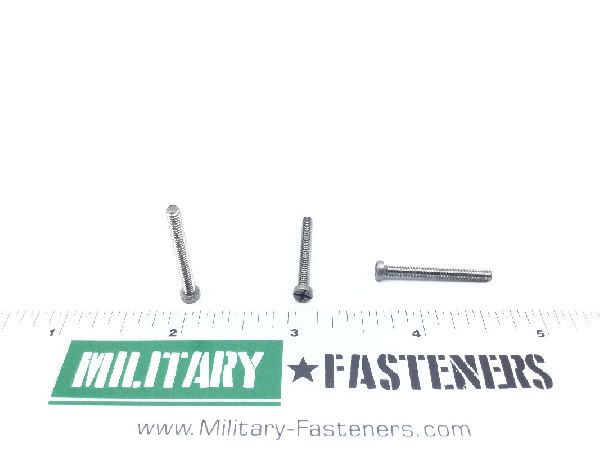

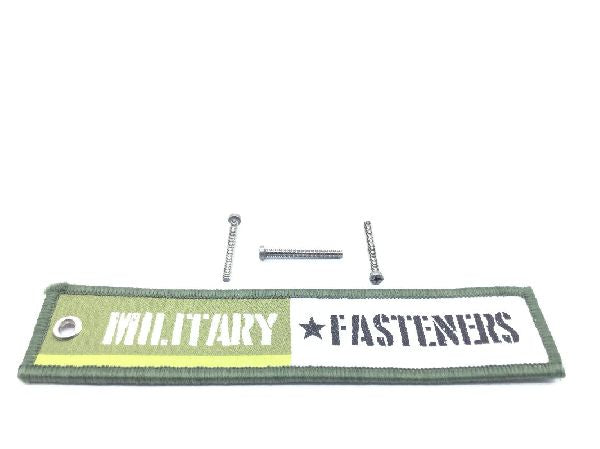

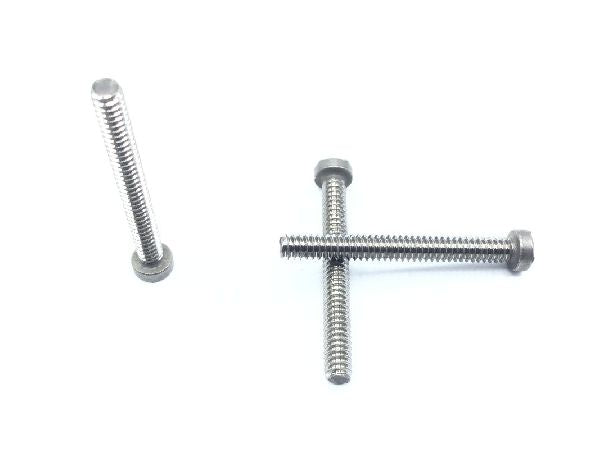

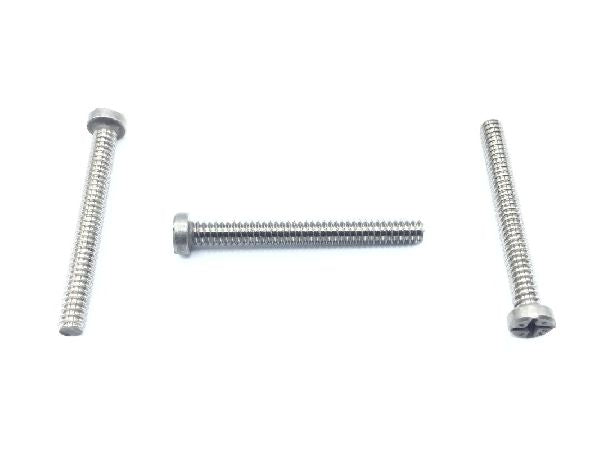

NAS1101E04-16 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $4.58

Units per Pack 10

Price per Pack $45.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $45.80

Add item to quote

Head Style

Flat chamfer

Thread Class

Fastener Length: Between 0.969 inches and 1.000 inches
Hardness Rating: Between 248.0 brinell standard and 341.0 brinell standard
Head Height: Between 0.059 inches and 0.069 inches
Internal Drive Style: Torque set
Min. Tensile Strength (psi): 140000 pounds per square inch
Screw Material: Iron alloy 660
Screw Material Specification: Ams 5735 assn standard single material response
Screw Surface Treatment: Passivate
Screw Surface Treatment Specification: Qq-p-35 federal specification single treatment response
Specification Data: 80205-nas1101 professional/industrial association standard
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.919 inches and 1.000 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unjc
Head Diameter: Between 0.178 inches and 0.183 inches
