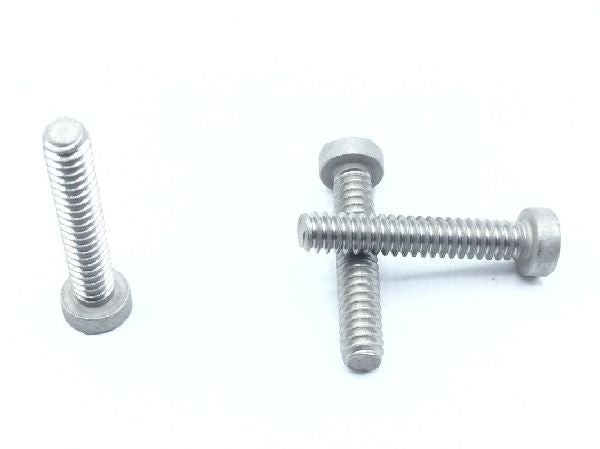

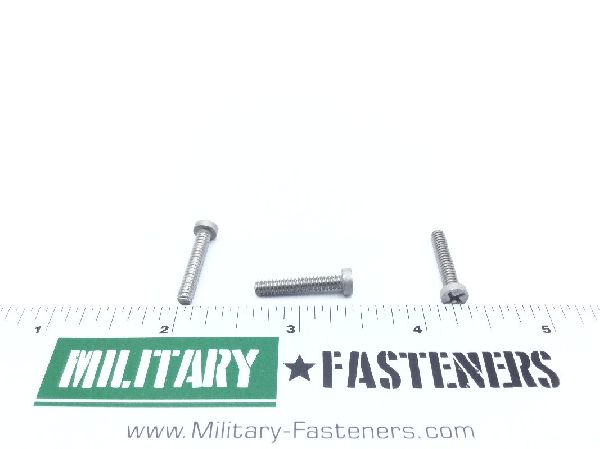

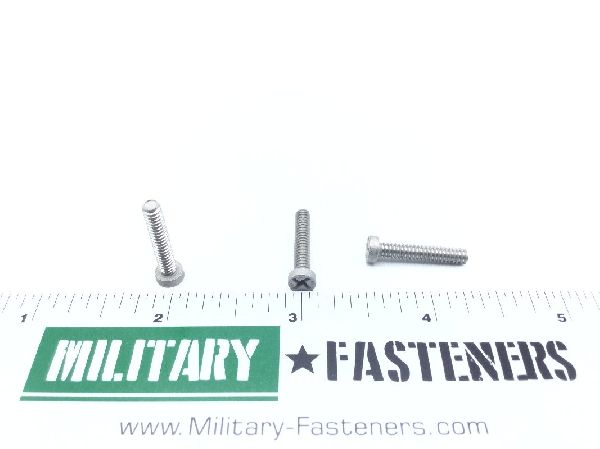

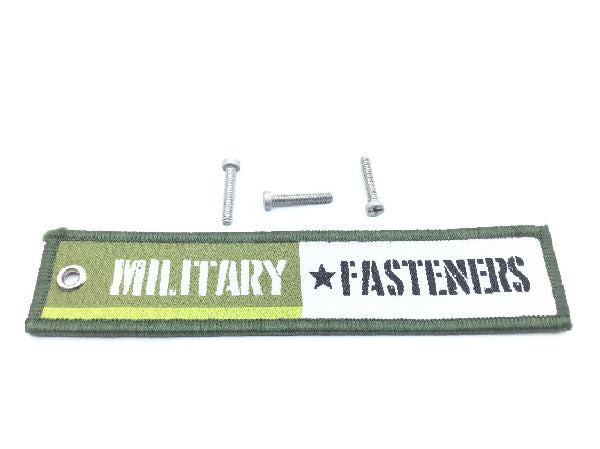

NAS1101E06-12 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat chamfer

Thread Class

Fastener Length: Between 0.719 inches and 0.750 inches
Head Height: Between 0.074 inches and 0.086 inches
Internal Drive Style: Torque set
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Iron alloy 660
Screw Material Specification: Ams5737 assn standard single material response
Screw Surface Treatment Specification: Qq-p-35 federal specification single treatment response
Specification Data: 80205-nas1101 professional/industrial association standard
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.657 inches and 0.750 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Head Diameter: Between 0.221 inches and 0.226 inches
