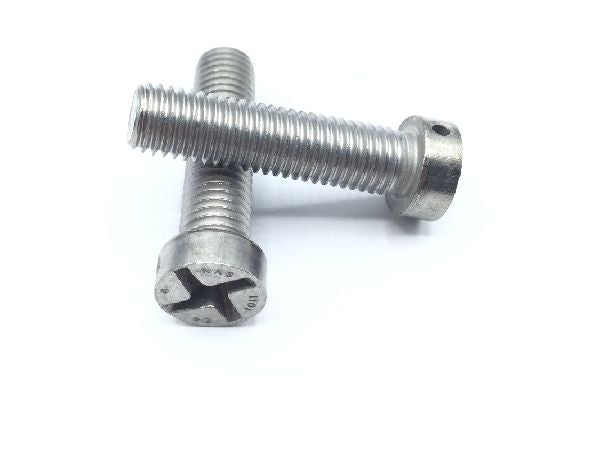

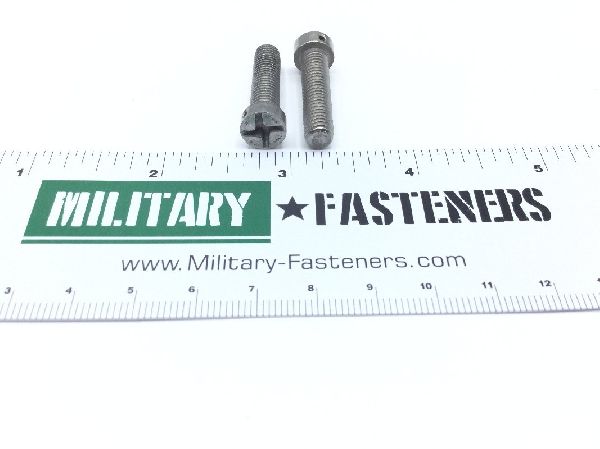

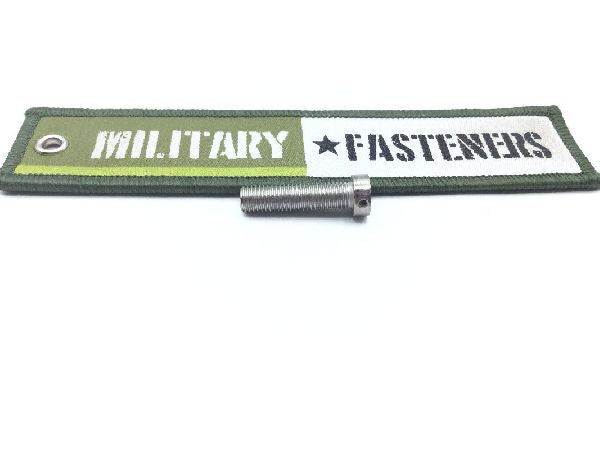

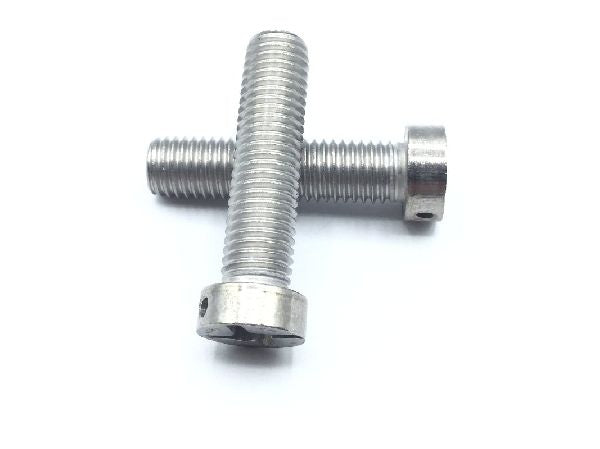

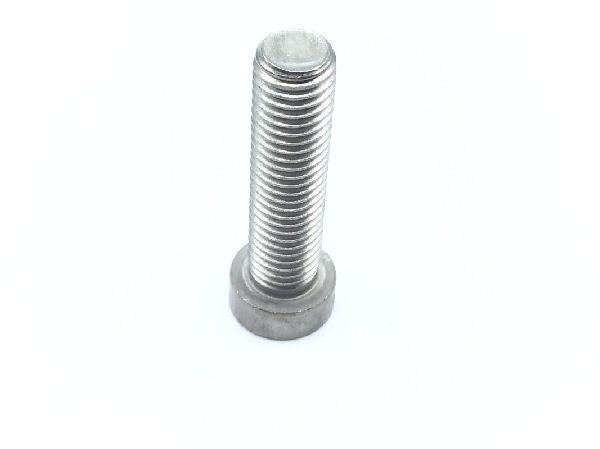

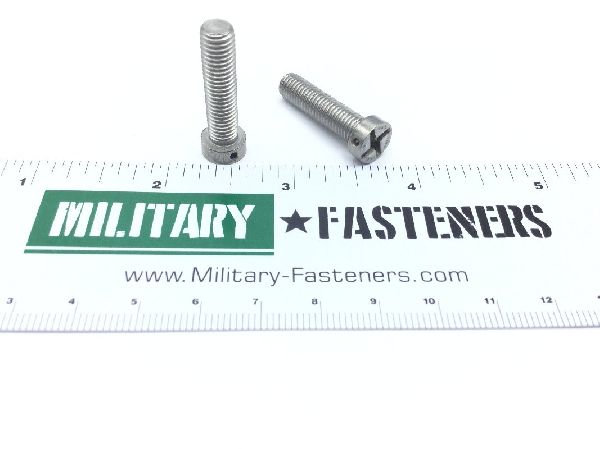

NAS1101E4H16 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $6.86

Units per Pack 10

Price per Pack $68.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $68.60

Add item to quote

Head Style

Flat fillister

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.219 inches and 0.250 inches
Head Height: Between 0.059 inches and 0.069 inches
Head Hole Configuration Style: Round
Hole Quantity: 2
Internal Drive Style: Torque set
Material Specification: Ams 5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1101 professional/industrial association standard
Surface Of Head Surface Finish: 32.0 microinches
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.200 inches and 0.250 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unjc
Thread Surface Finish: 32.0 microinches
Head Diameter: Between 0.178 inches and 0.183 inches
Hole Diameter: Between 0.034 inches and 0.042 inches
