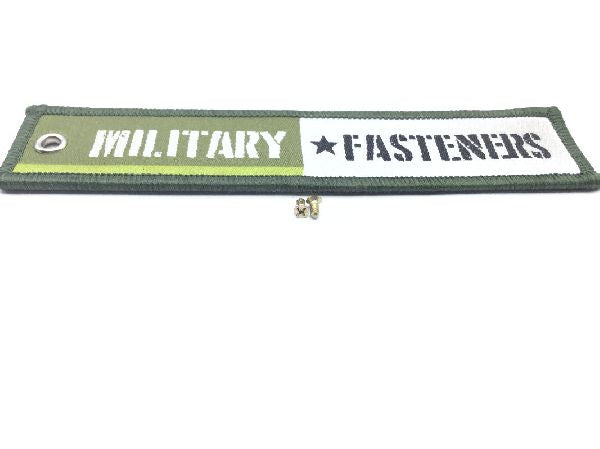

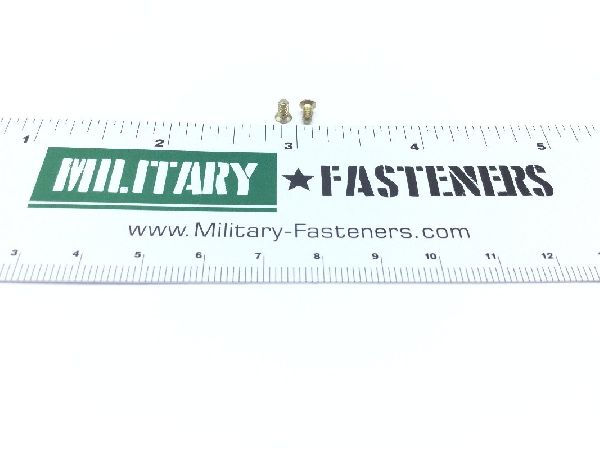

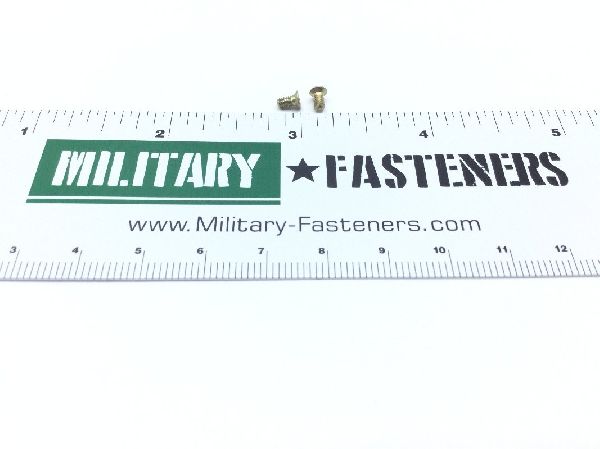

NAS1102-02-3 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.157 inches and 0.188 inches
Hardness Rating: Between 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style: Torque set
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Cl 2 federal specification single treatment response type 2 qq-p-416
Specification Data: 80205-nas1102 professional/industrial association standard
Thread Diameter: 0.086 inches
Thread Direction: Right-hand
Thread Length: Between 0.085 inches and 0.152 inches
Thread Qty Per Inch (tpi): 56
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.126 inches and 0.172 inches
