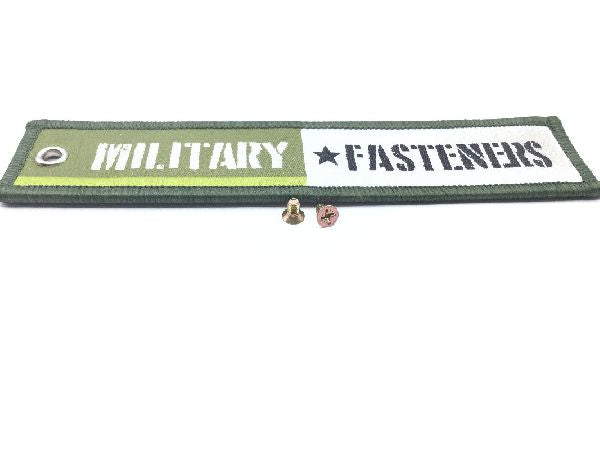

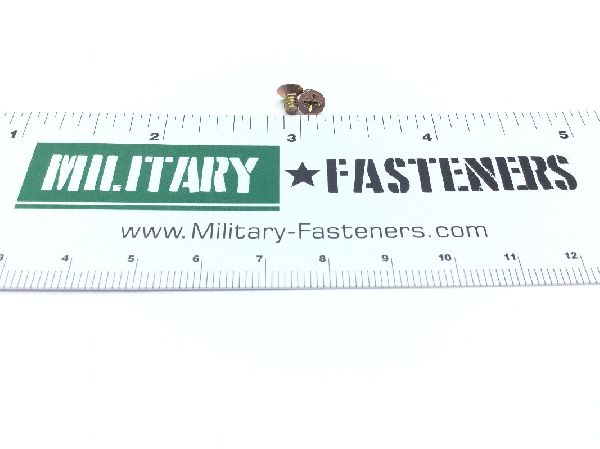

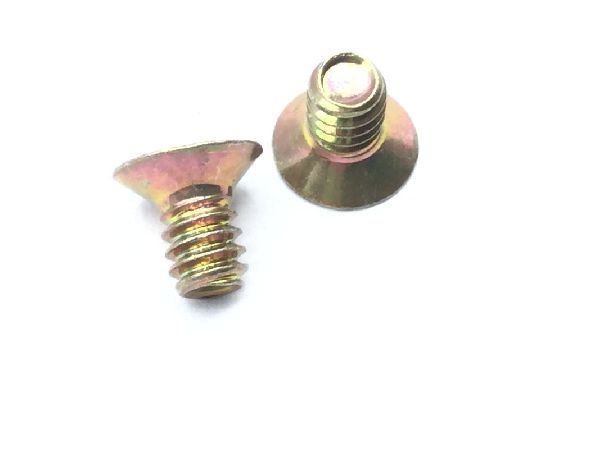

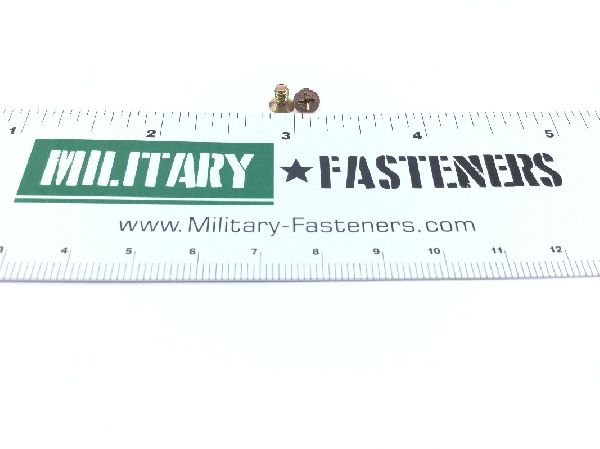

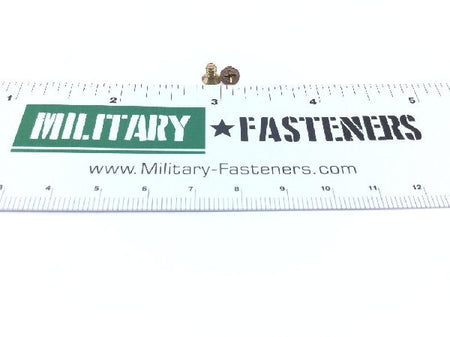

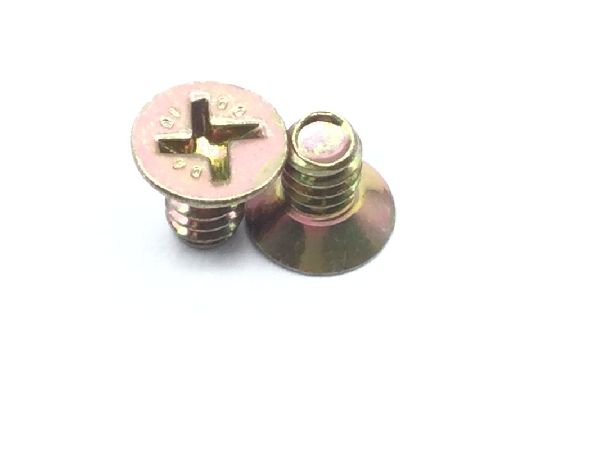

NAS1102-04-3 Machine Screw
- Product Series
- NAS
- ECCN
- EAR99
- Schedule
- 7318.15.2091
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Countersink Angle
- Between 99 degrees and 101 degrees
- Fastener Length
- Between 0.157 inches and 0.188 inches
- Hardness Rating
- Between 36 rockwell c and 40 rockwell c
- Internal Drive Style
- Torque set
- Min. Tensile Strength (psi)
- 160000 pounds per square inch
- Screw Material
- Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740
- Screw Surface Treatment
- Cadmium and chromate
- Screw Surface Treatment Specification
- Cl 3 federal specification all treatment responses type 2 qq-p-416
- Specification Data
- 80205-nas1102 professional/industrial association standard
- Thread Diameter
- 0.112 inches
- Thread Direction
- Right-hand
- Thread Length
- 0.138 inches
- Thread Qty Per Inch (tpi)
- 40
- Thread Series Designator
- Unc (coarse thread)
- Head Diameter
- Between 0.177 inches and 0.225 inches
