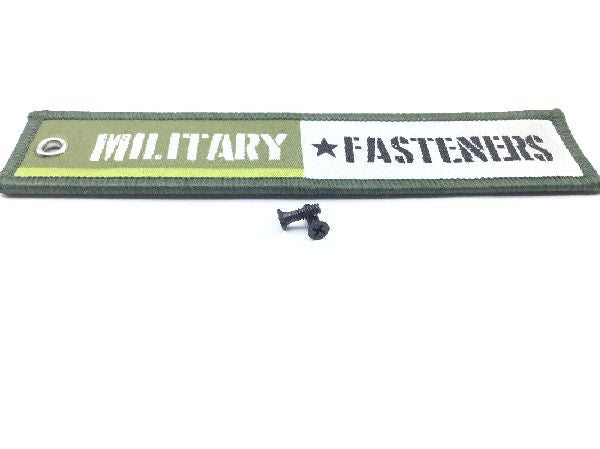

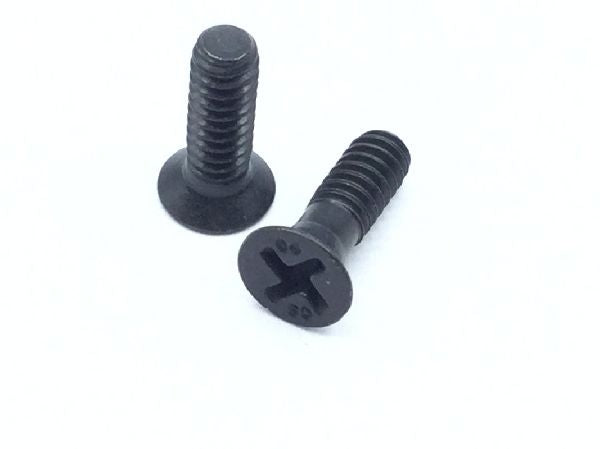

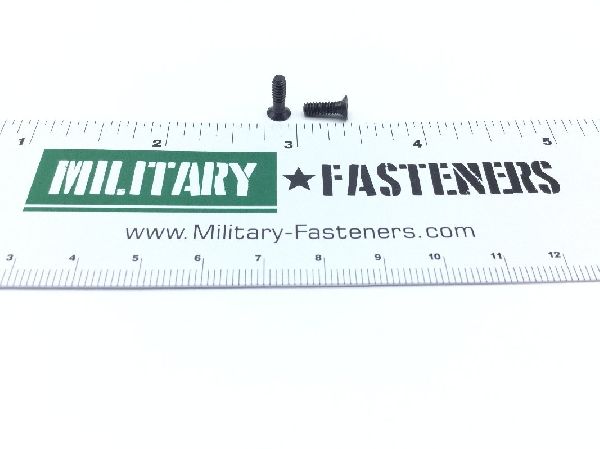

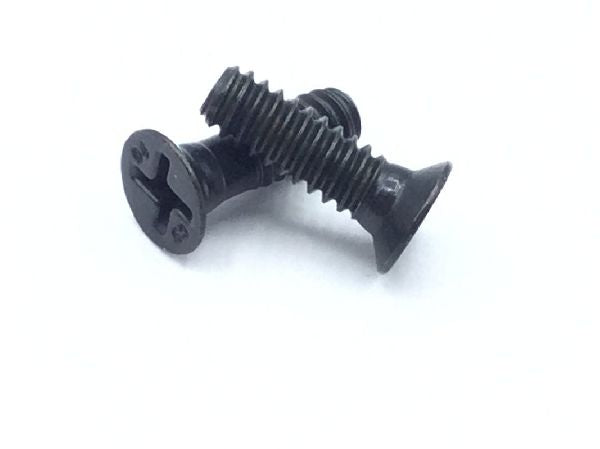

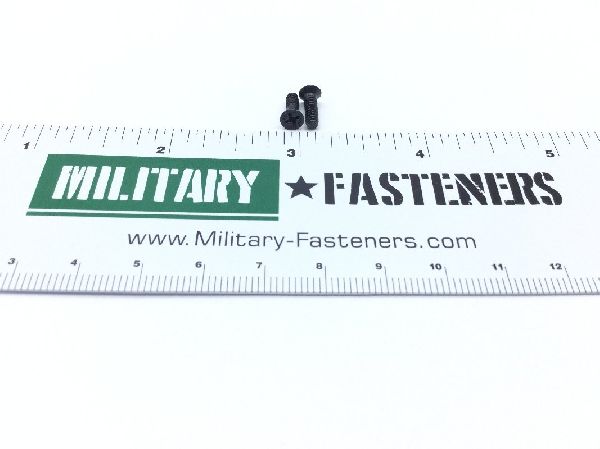

NAS1102-04-6B Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.81

Units per Pack 25

Price per Pack $45.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $45.25

Add item to quote

Head Style

Flat countersunk

Material

Steel comp

Surface Treatment

Class 3 federal specification all treatment responses type 2 qq-p-416

Thread Class

Color: Black
Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.344 inches and 0.375 inches
Hardness Rating: Between 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style: Torque set
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1102 professional/industrial association standard
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.299 inches and 0.330 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unjc
Head Diameter: Between 0.177 inches and 0.225 inches
