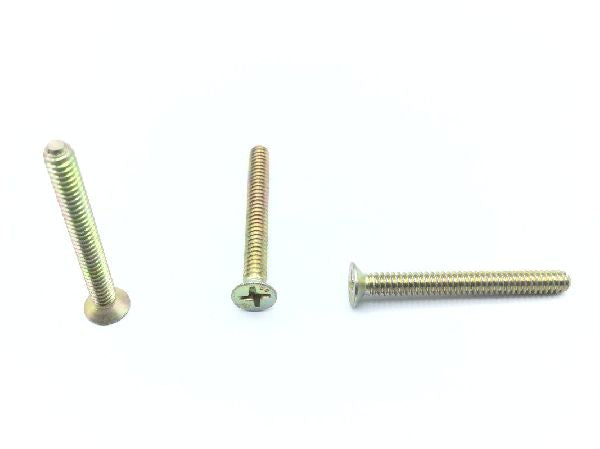

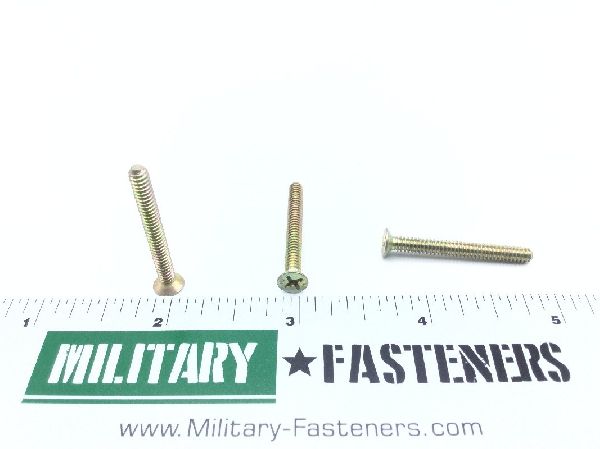

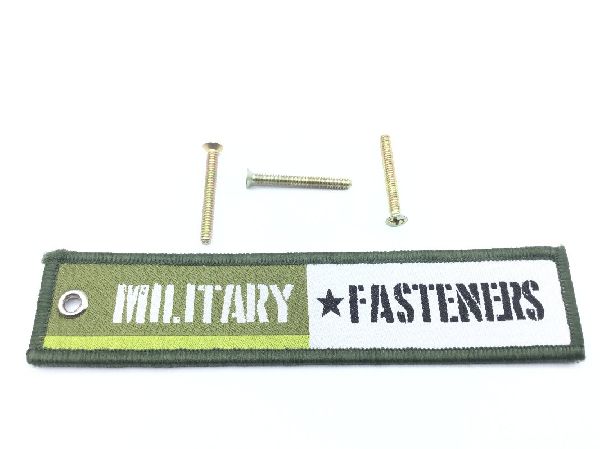

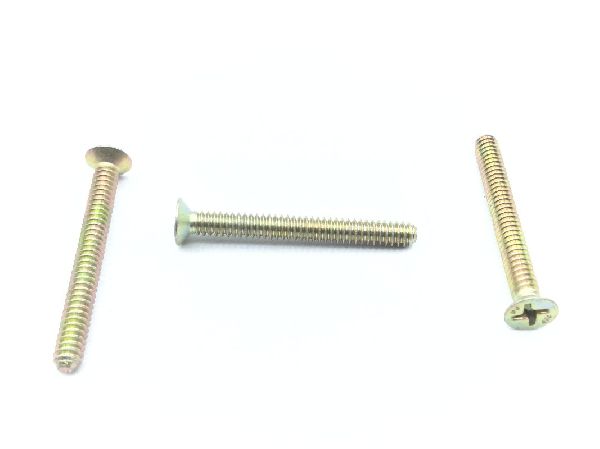

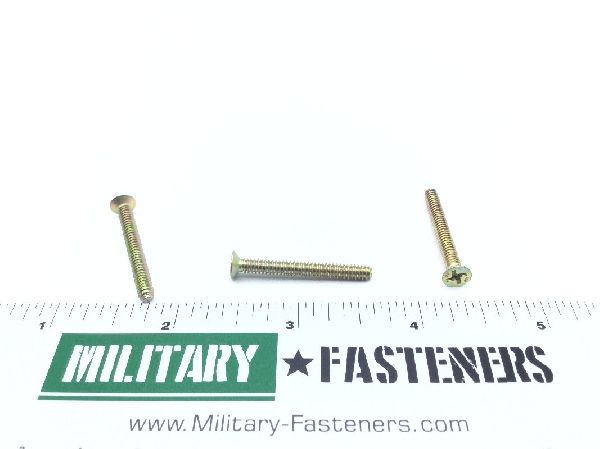

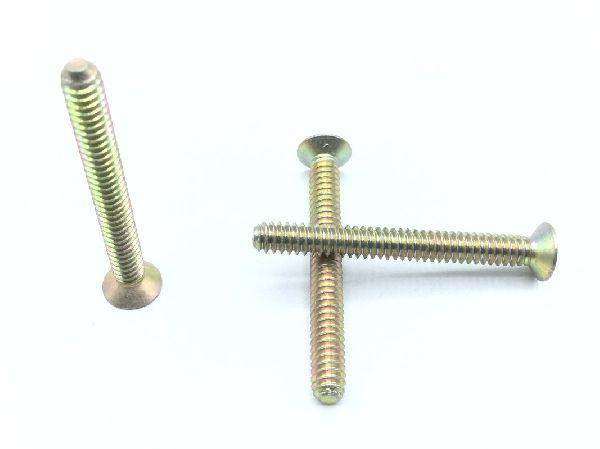

NAS1102-06-20 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $2.35

Units per Pack 25

Price per Pack $58.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $58.75

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: 1.250 inches
Hardness Rating: Between 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style: Torque set
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Steel comp e4340 or steel comp 8740 or steel comp 8735 or steel comp 6150 or steel comp 4140 or steel comp 4037
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Type 2 cl 3 federal specification all treatment responses qq-p-416
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 1.188 inches and 1.250 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.231 inches and 0.279 inches
