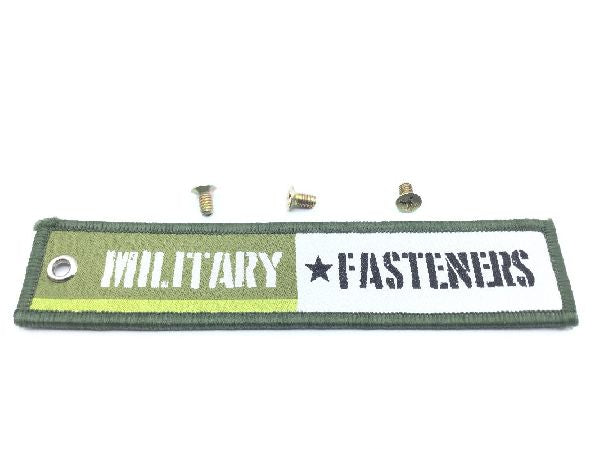

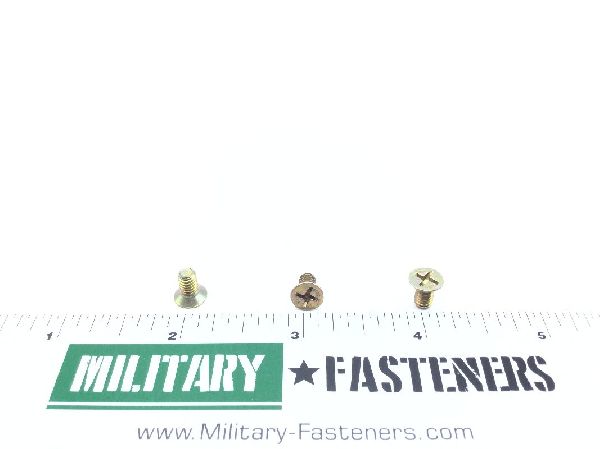

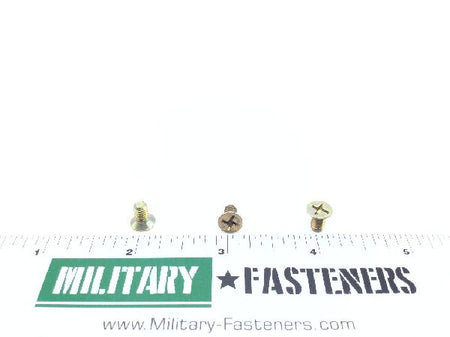

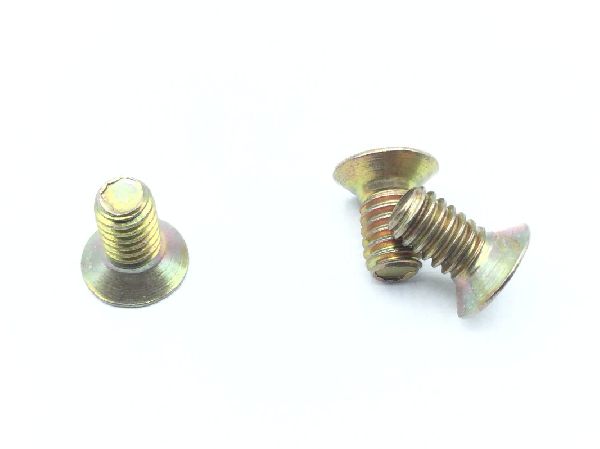

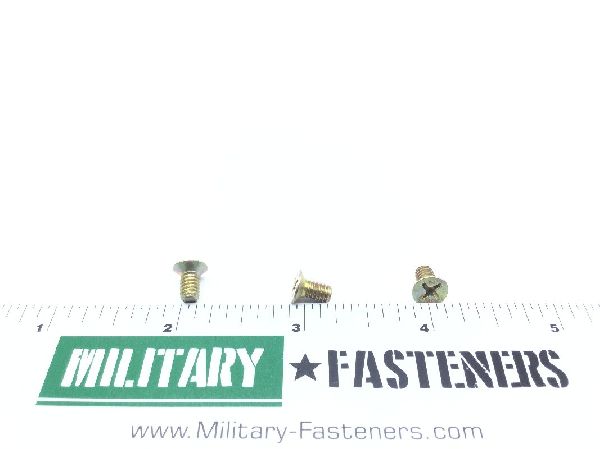

NAS1102-08-5 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.77

Units per Pack 50

Price per Pack $38.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $38.50

Add item to quote

Head Style

Flat countersunk

Material

Steel comp

Surface Treatment

Class 3 federal specification all treatment responses type 2 qq-p-416

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.281 inches and 0.312 inches
Hardness Rating: Between 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style: Torque set
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.250 inches and 0.312 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.270 inches and 0.332 inches
