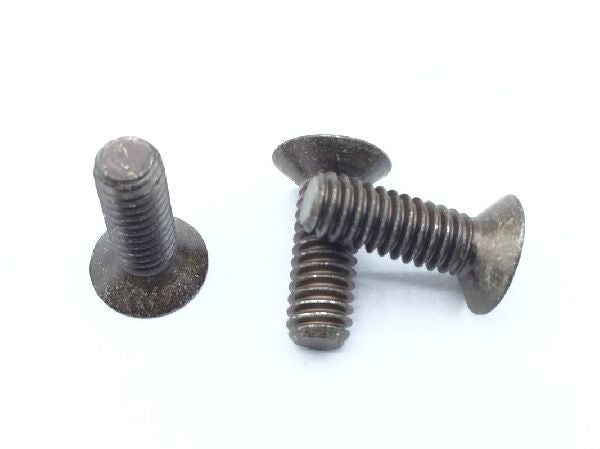

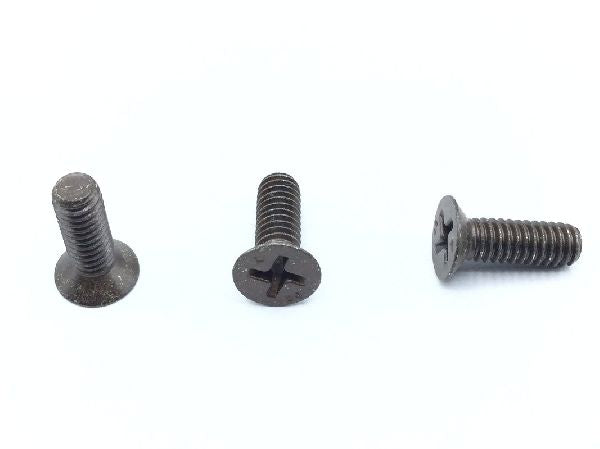

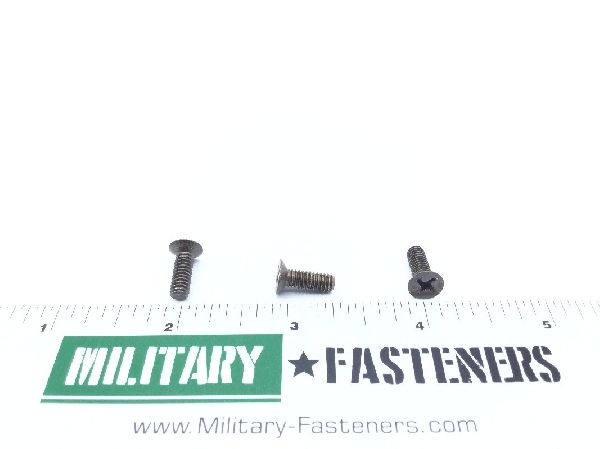

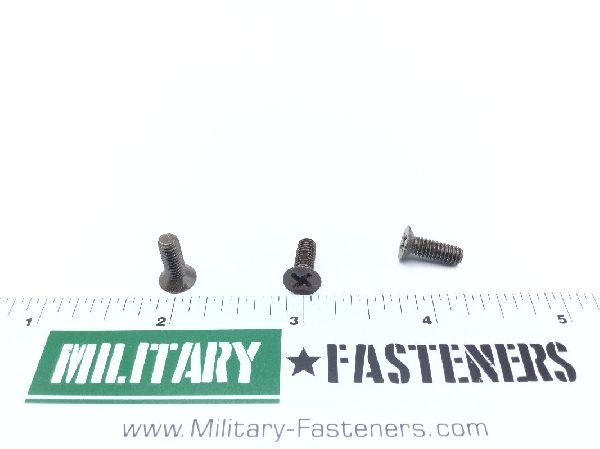

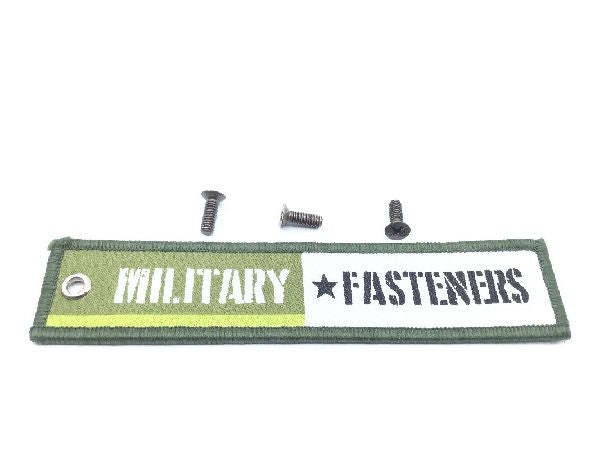

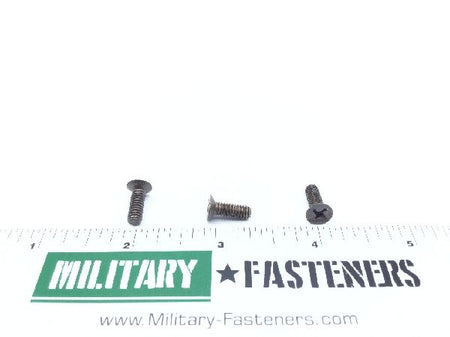

NAS1102-08-8B Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.83

Units per Pack 50

Price per Pack $41.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $41.50

Add item to quote

Head Style

Flat countersunk

Material

Steel

Surface Treatment

Type 2 class 3 federal specification all treatment responses qq-p-416

Thread Class

Color: Black
Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.469 inches and 0.50 inches
Hardness Rating: Between 36.0 rockwell and 40.0 rockwell
Internal Drive Style: Torque set
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1102 professional/industrial association standard
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.339 inches and 0.432 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Head Diameter: Between 0.27 inches and 0.332 inches
