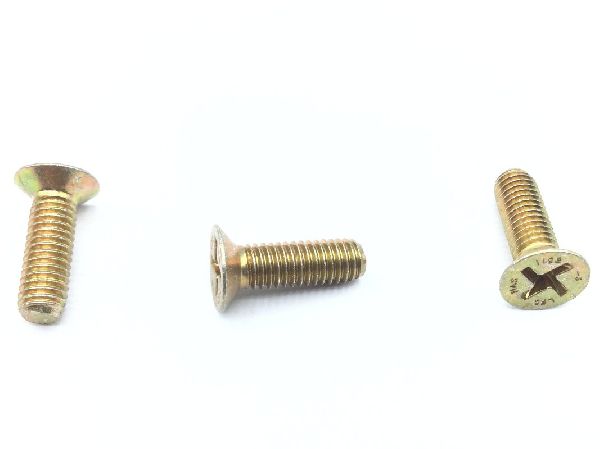

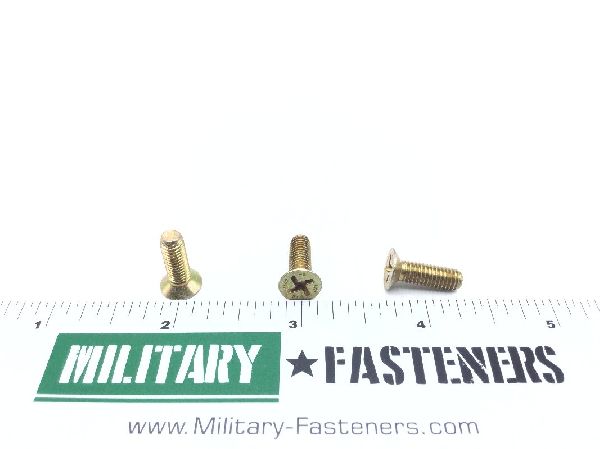

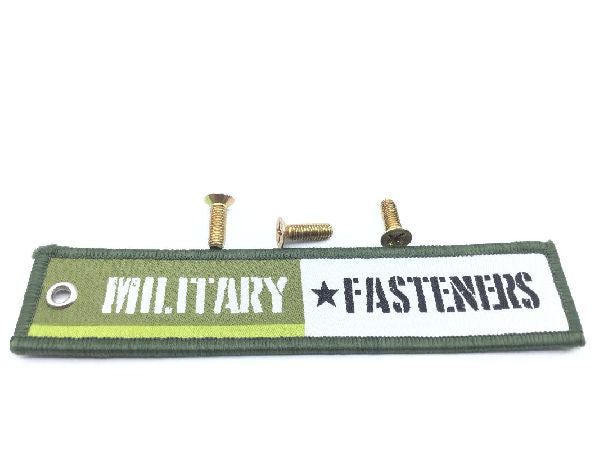

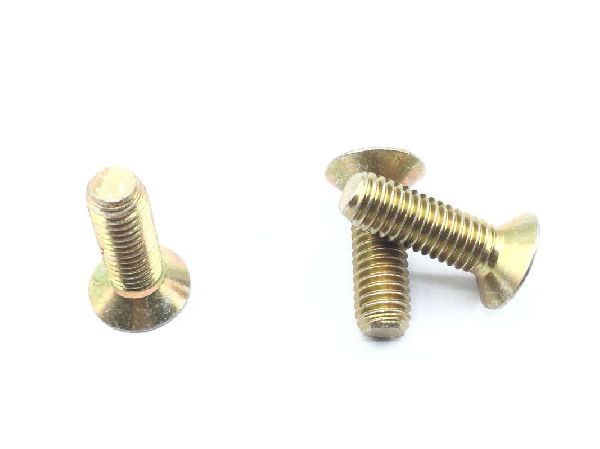

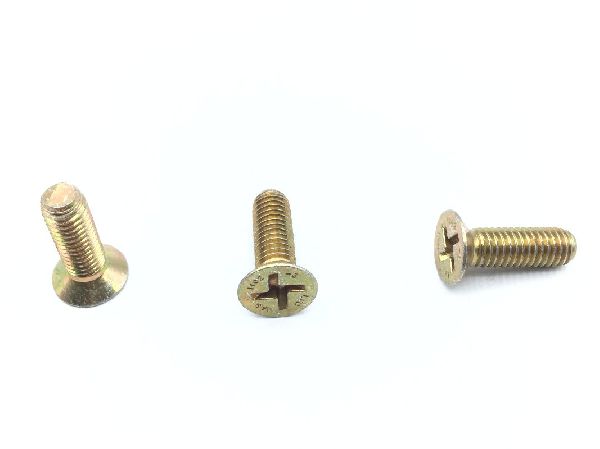

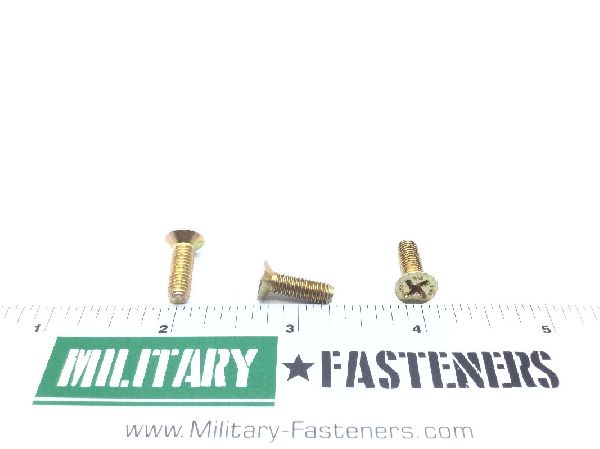

NAS1102-3-10 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.68

Units per Pack 50

Price per Pack $34.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $34.00

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 99 degrees and 101 degrees
Fastener Length: Between 0.594 inches and 0.625 inches
Hardness Rating: Between 36 rockwell and 40 rockwell
Internal Drive Style: Torque set
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Steel
Screw Surface Treatment Specification: Class 3 federal specification all treatment responses type 2 qq-b-416
Specification Data: 80205-nas1102 professional/industrial association standard
Thread Diameter: 0.19 inches
Thread Direction: Right-hand
Thread Length: Between 0.452 inches and 0.514 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.322 inches and 0.385 inches
