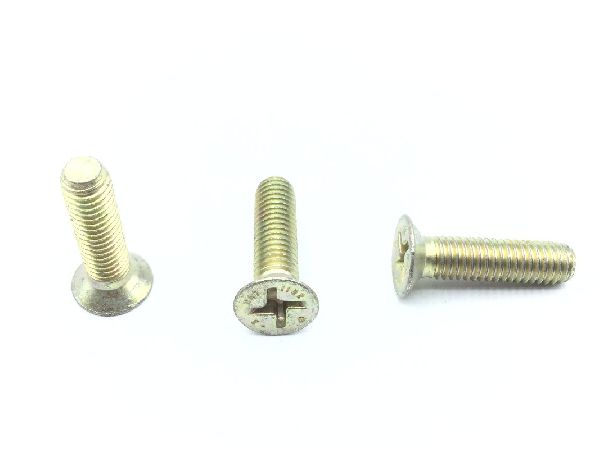

NAS1102-3-12 Machine Screw

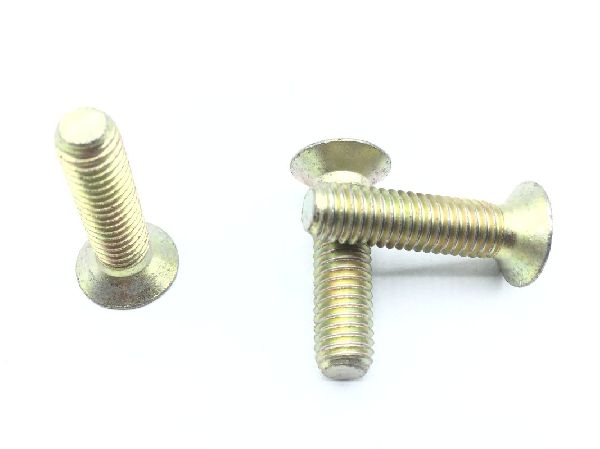

NAS1102-3-12 Machine Screw (2)

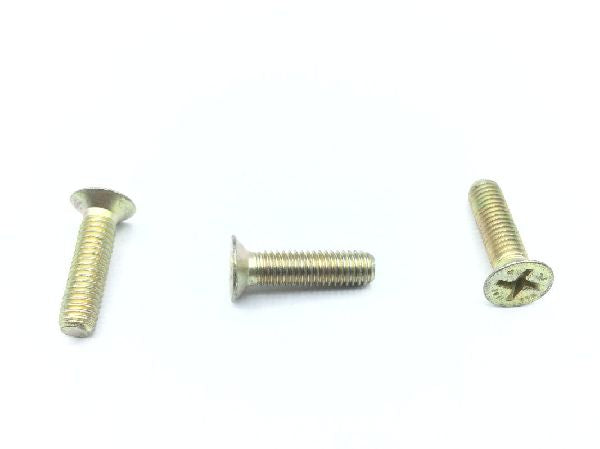

NAS1102-3-12 Machine Screw (3)

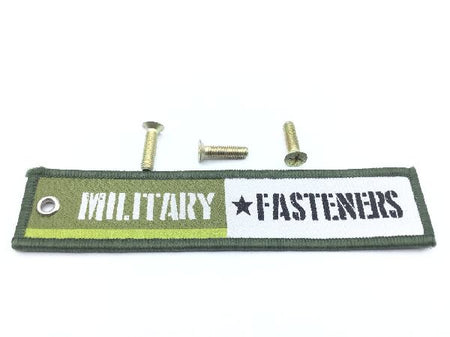

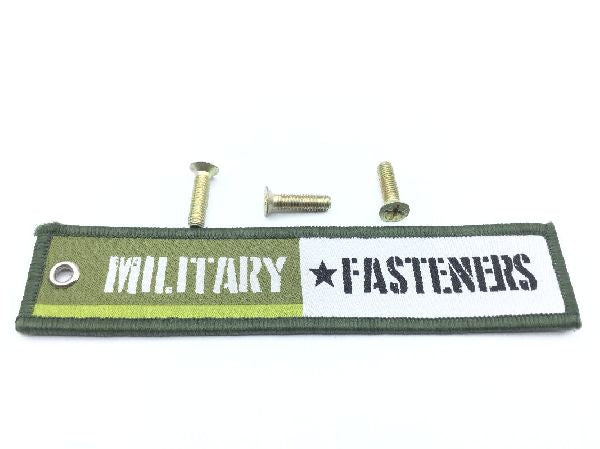

NAS1102-3-12 Machine Screw (4)

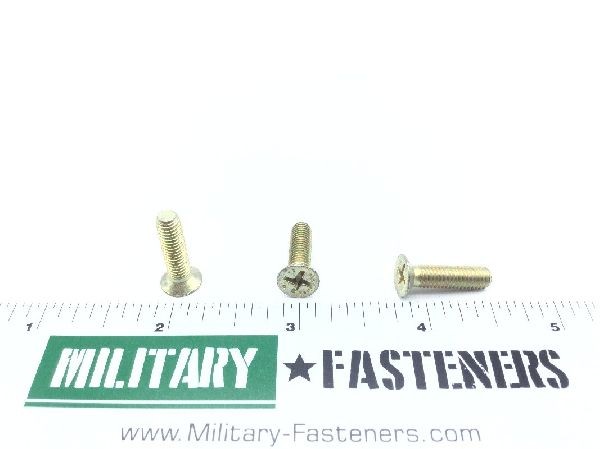

NAS1102-3-12 Machine Screw (5)

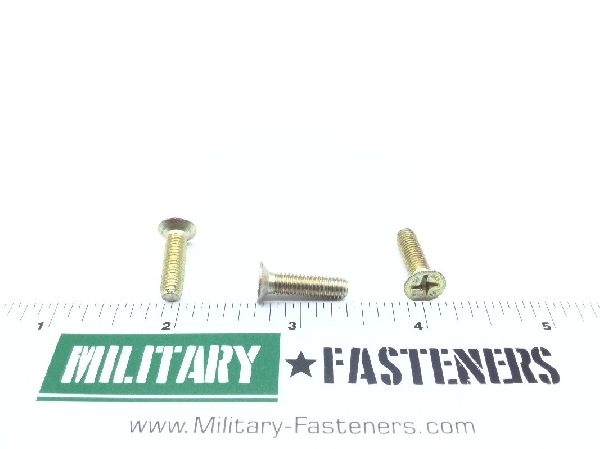

NAS1102-3-12 Machine Screw (6)
NAS1102-3-12 Machine Screw
NAS1102-3-12 Machine Screw (2)
NAS1102-3-12 Machine Screw (3)
NAS1102-3-12 Machine Screw (4)
NAS1102-3-12 Machine Screw (5)
NAS1102-3-12 Machine Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1102-3-12 Machine Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.2091
Price per Unit $0.39
Units per Pack 100
Price per Pack $39.00
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:
Total Packs 1
Total Price $39.00
Add item to quote
Head Style
Flat countersunk
Material
Steel comp e4340 or steel comp 8740 or steel comp 8735 or steel comp 6150 or steel comp 4140 or steel comp 4037
Surface Treatment
Class 3 federal specification all treatment responses type 2 qq-b-416
Thread Class
3a
Countersink Angle
Between 99.0 degrees and 101.0 degrees
Fastener Length
0.750 inches
Hardness Rating
Between 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style
Torque set
Min. Tensile Strength (psi)
160000 pounds per square inch
Thread Diameter
0.190 inches
Thread Direction
Right-hand
Thread Length
Between 0.688 inches and 0.750 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unf (fine thread)
Head Diameter
Between 0.322 inches and 0.385 inches
