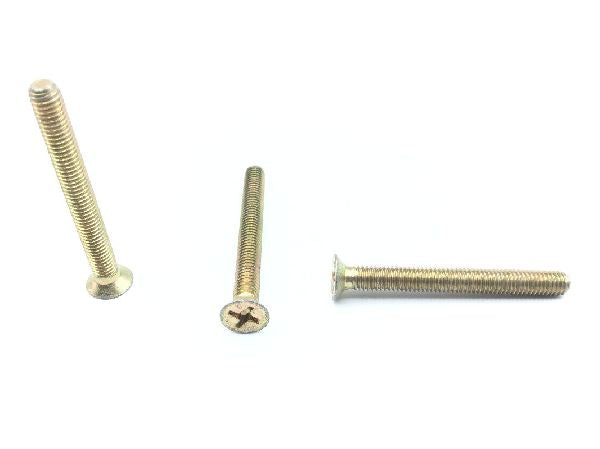

NAS1102-3-28 Machine Screw

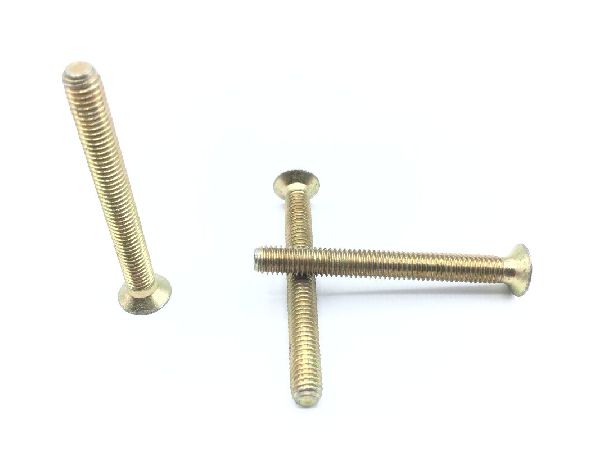

NAS1102-3-28 Machine Screw (2)

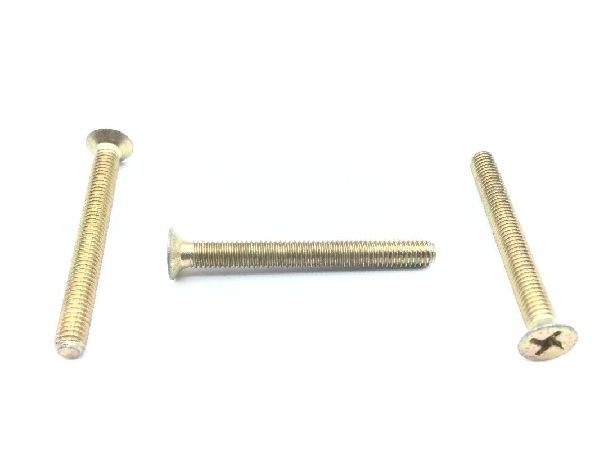

NAS1102-3-28 Machine Screw (3)

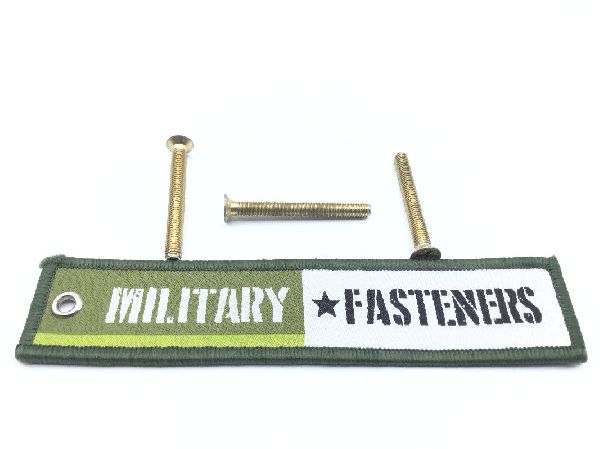

NAS1102-3-28 Machine Screw (4)

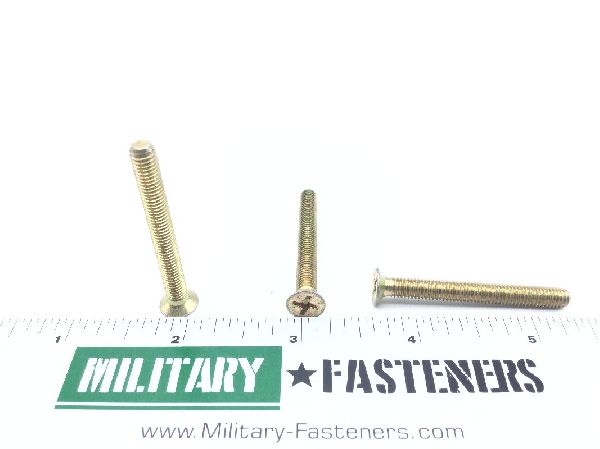

NAS1102-3-28 Machine Screw (5)

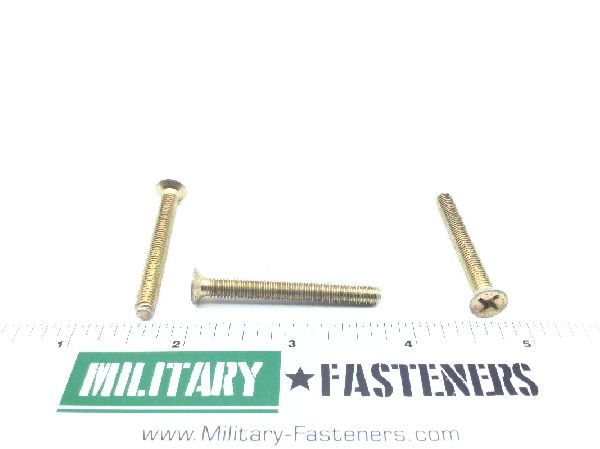

NAS1102-3-28 Machine Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1102-3-28 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.94

Units per Pack 25

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Head Style

Flat countersunk

Material

Steel comp

Surface Treatment

Type 2 cl 3 federal specification all treatment responses qq-p-416

Thread Class

3a

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: 1.750 inches
Hardness Rating: Between 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style: Torque set
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 1.688 inches and 1.750 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.322 inches and 0.385 inches
