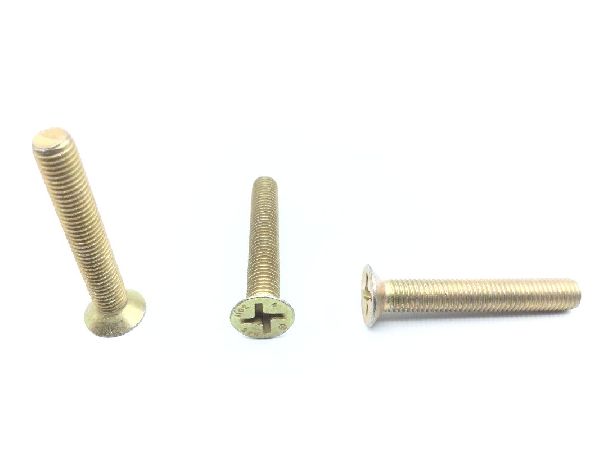

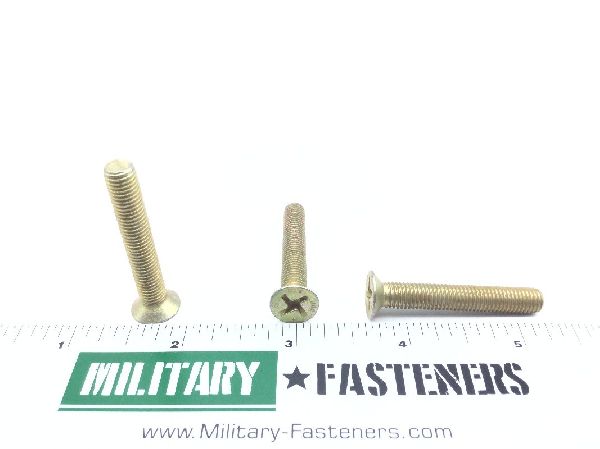

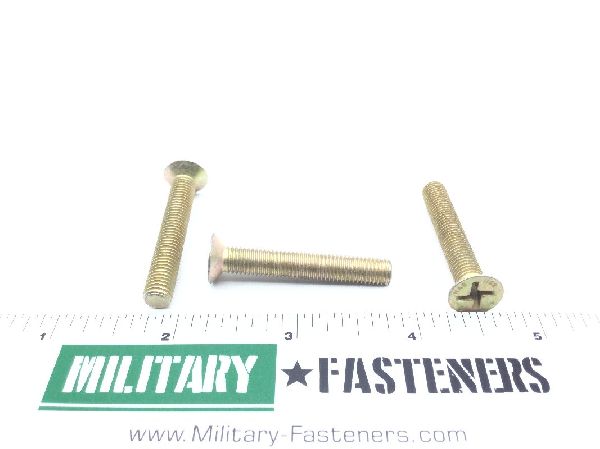

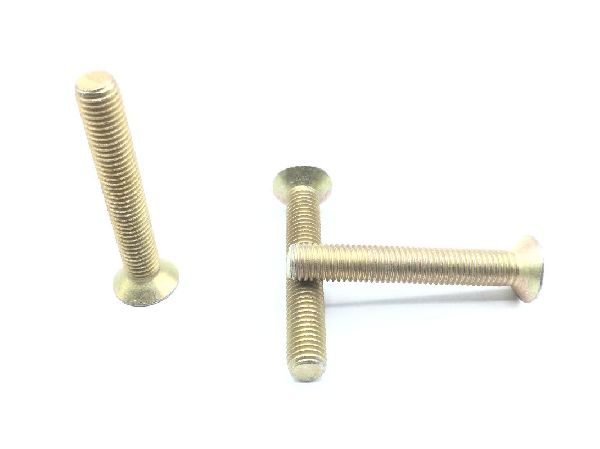

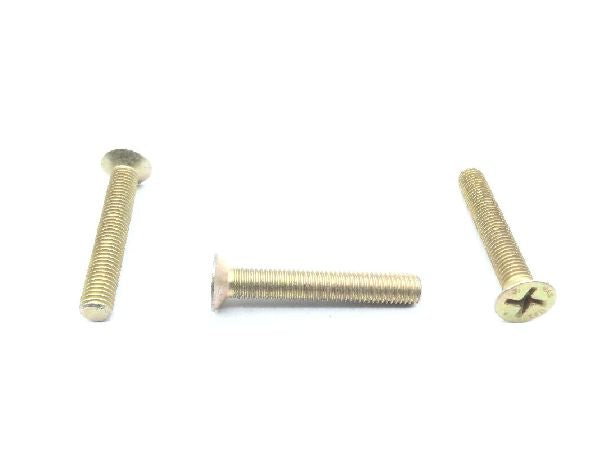

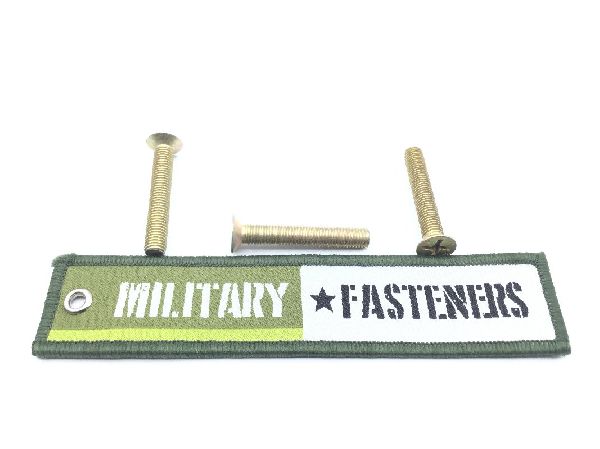

NAS1102-4-26 Machine Screw
NAS1102-4-26 Machine Screw (2)
NAS1102-4-26 Machine Screw (3)
NAS1102-4-26 Machine Screw (4)
NAS1102-4-26 Machine Screw (5)
NAS1102-4-26 Machine Screw (6)
NAS1102-4-26 Machine Screw
NAS1102-4-26 Machine Screw (2)
NAS1102-4-26 Machine Screw (3)
NAS1102-4-26 Machine Screw (4)
NAS1102-4-26 Machine Screw (5)
NAS1102-4-26 Machine Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1102-4-26 Machine Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.2091
Price per Unit $4.04
Units per Pack 10
Price per Pack $40.40
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:
Total Packs 1
Total Price $40.40
Add item to quote
Head Style
Flat countersunk
Material
Steel
Surface Treatment
Class 3 federal specification all treatment responses type 2 qq-p-416
Thread Class
3a
Countersink Angle
Between 99.0 degrees and 101.0 degrees
Fastener Length
Between 1.563 inches and 1.625 inches
Hardness Rating
Between 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style
Torque set
Min. Tensile Strength (psi)
160000 pounds per square inch
Thread Diameter
0.250 inches
Thread Direction
Right-hand
Thread Length
Between 1.542 inches and 1.625 inches
Thread Qty Per Inch (tpi)
28
Thread Series Designator
Unf (fine thread)
Head Diameter
Between 0.442 inches and 0.507 inches
