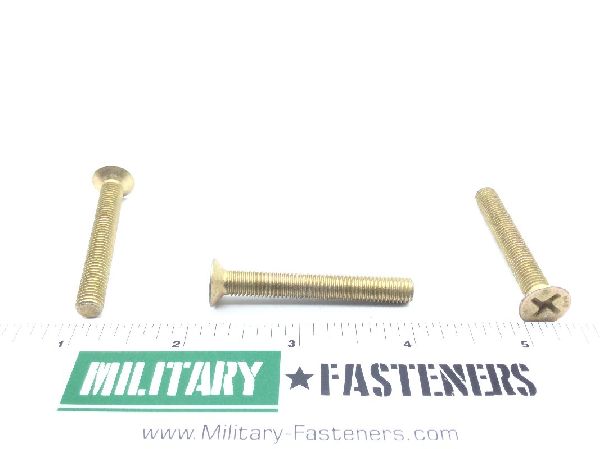

NAS1102-4-30 Screw

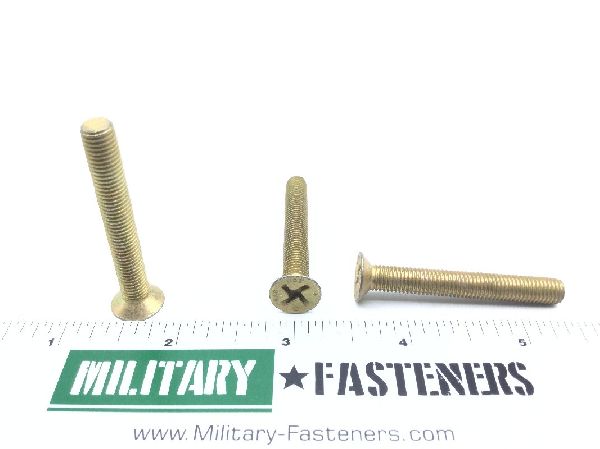

NAS1102-4-30 Screw (2)

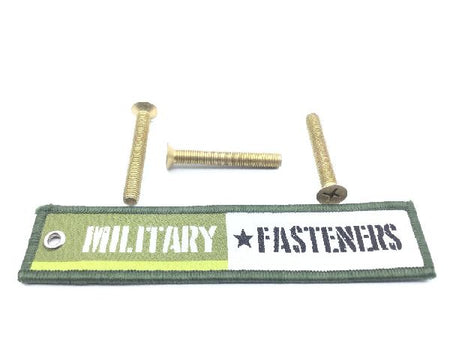

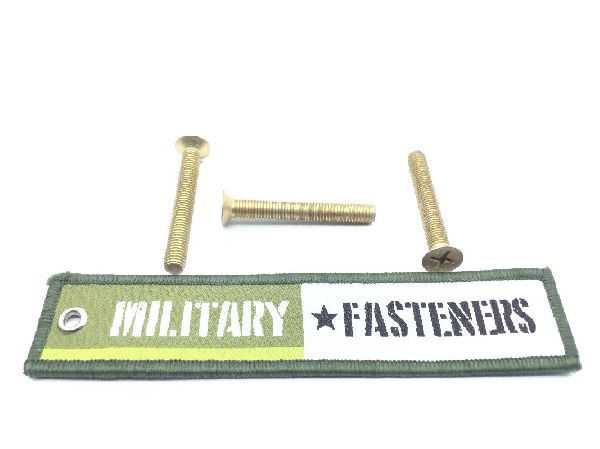

NAS1102-4-30 Screw (3)

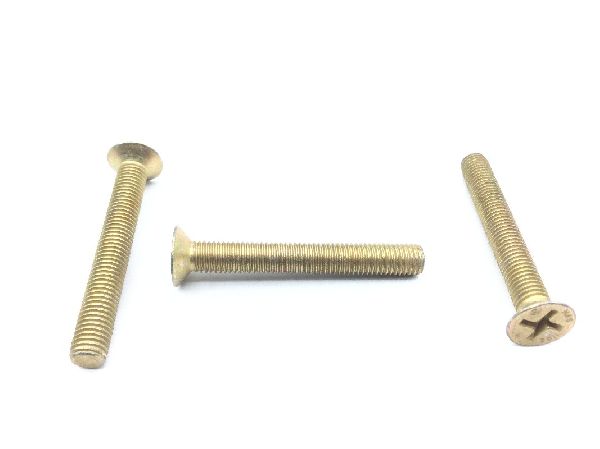

NAS1102-4-30 Screw (4)

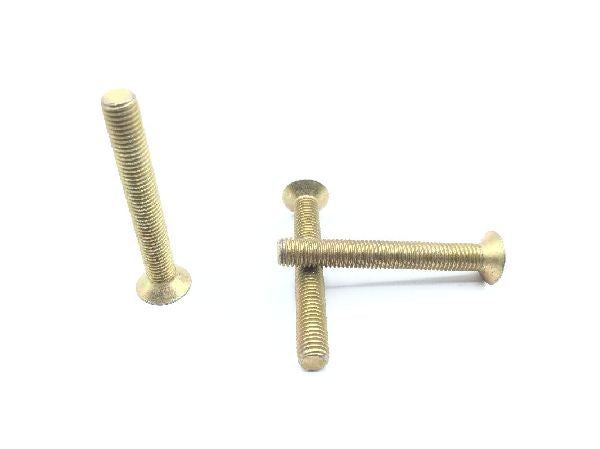

NAS1102-4-30 Screw (5)

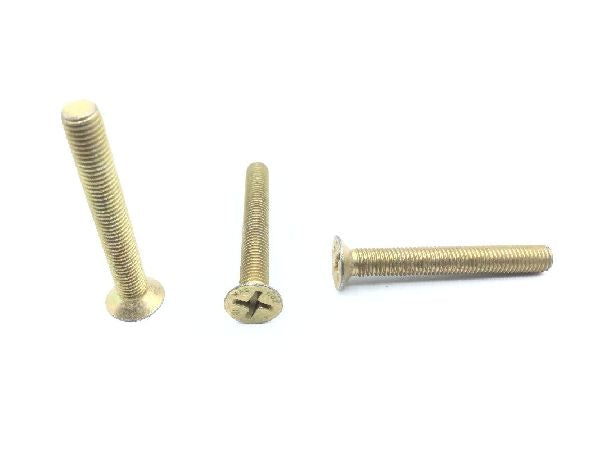

NAS1102-4-30 Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1102-4-30 Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.2091
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flat countersunk
Thread Class
3a
Countersink Angle
Between 99.0 degrees and 101.0 degrees
Fastener Length
Between 1.813 inches and 1.875 inches
Hardness Rating
Between 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style
Torque set
Min. Tensile Strength (psi)
160000 pounds per square inch
Screw Material
Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740
Screw Surface Treatment
Cadmium and chromate
Screw Surface Treatment Specification
Cl 3 federal specification all treatment responses type 2 qq-p-416
Specification Data
80205-nas1102 professional/industrial association standard
Thread Diameter
0.250 inches
Thread Direction
Right-hand
Thread Length
Between 1.636 inches and 1.669 inches
Thread Qty Per Inch (tpi)
28
Thread Series Designator
Unjf (fine thread with external controlled root radius)
Head Diameter
Between 0.442 inches and 0.507 inches
