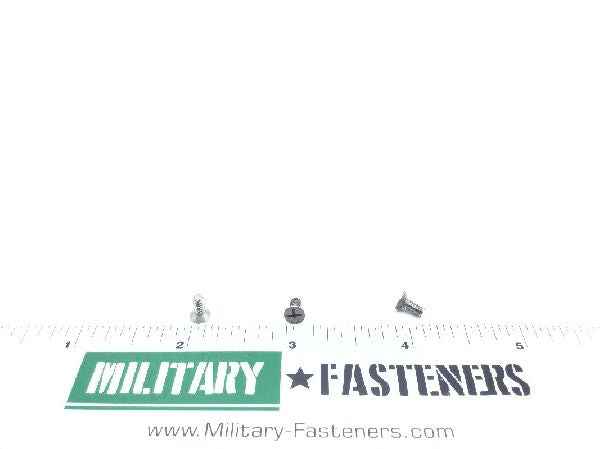

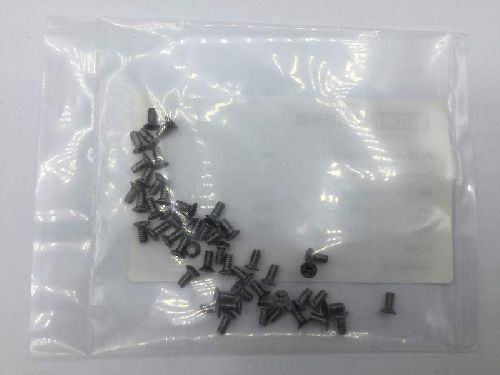

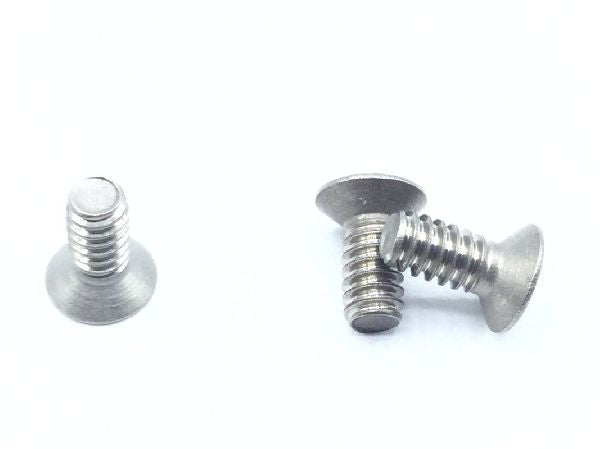

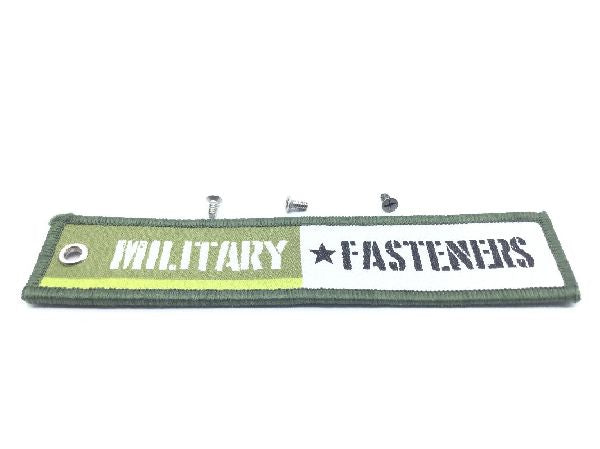

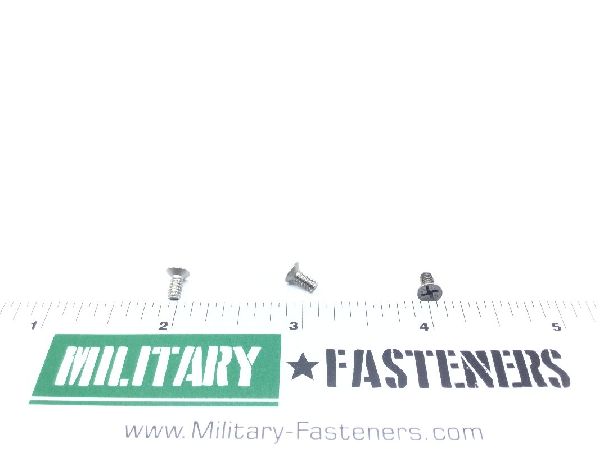

NAS1102E04-4 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.45

Units per Pack 25

Price per Pack $36.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $36.25

Add item to quote

Head Style

Flat countersunk

Thread Class

Thread Quantity Per Inch (tpi)

Countersink Angle: 100 degrees
Fastener Length: Between 0.219 inches and 0.250 inches
Internal Drive Style: Torque set
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Iron alloy 660
Screw Material Specification: Ams 5737 assn standard single material response
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Class federal specification all treatment responses type 2 qq-p-416
Specification Data: 80205-nas1102 professional/industrial association standard
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.124 inches and 0.205 inches
Thread Series Designator: Unjc
Head Diameter: Between 0.177 inches and 0.225 inches
