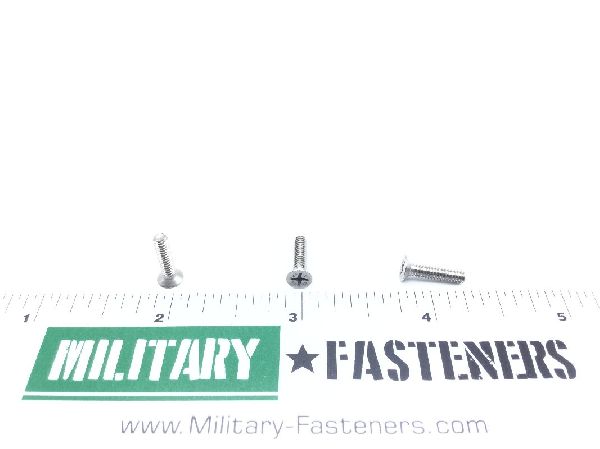

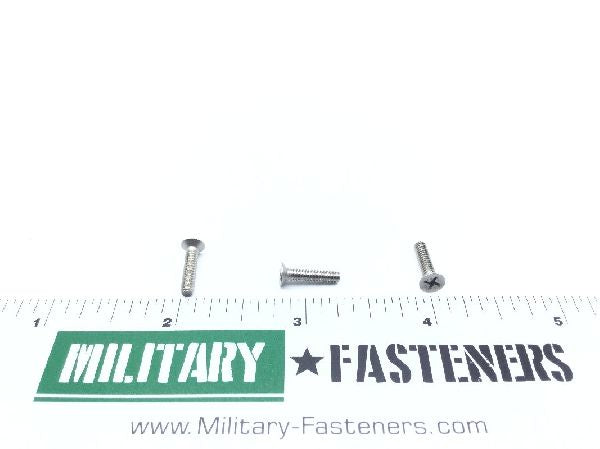

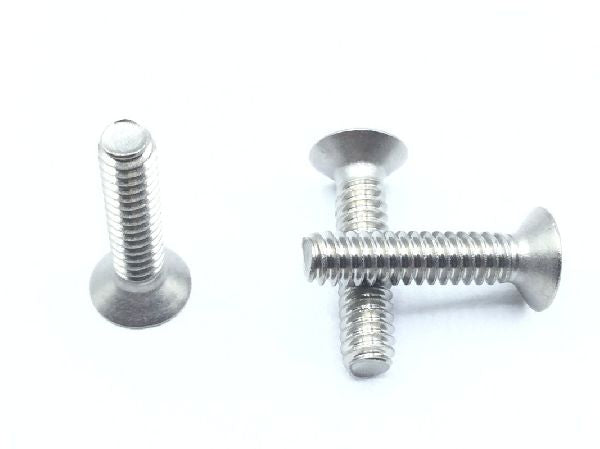

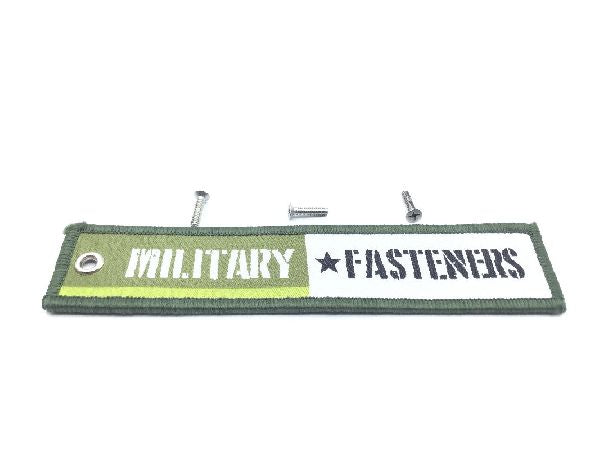

NAS1102E04-8 Machine Screw

NSN: 5305-00-235-0379
Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.36

Units per Pack 25

Price per Pack $34.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $34.00

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.469 inches and 0.500 inches
Internal Drive Style: Torque set
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Iron alloy 660
Screw Surface Treatment: Passivate
Screw Surface Treatment Specification: Qq-p-35 federal specification single treatment response
Specification Data: 80205-nas1102 professional/industrial association standard
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.374 inches and 0.455 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unjc
Head Diameter: Between 0.177 inches and 0.225 inches
