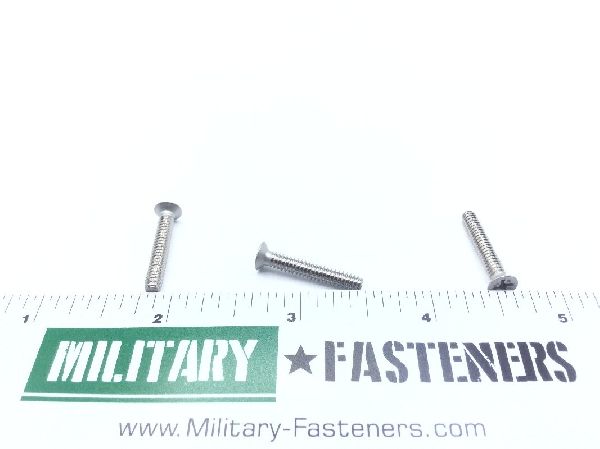

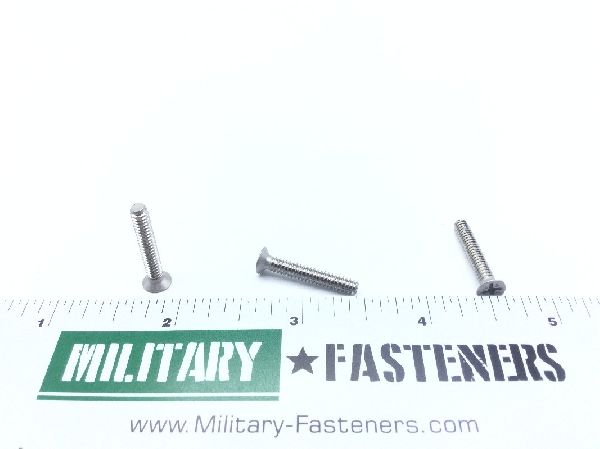

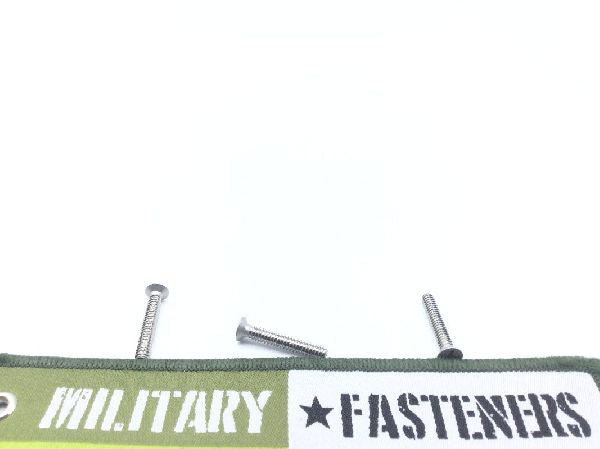

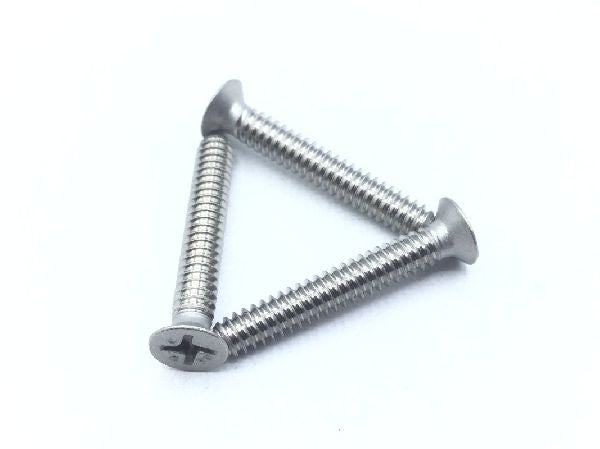

NAS1102E06-14 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk

Material

Iron alloy 660

Surface Treatment

Cl federal specification all treatment responses type 2 qq-p-416

Thread Class

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.844 inches and 0.875 inches
Internal Drive Style: Torque set
Material Specification: Ams 5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1102 professional/industrial association standard
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.725 inches and 0.818 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Head Diameter: Between 0.231 inches and 0.279 inches
