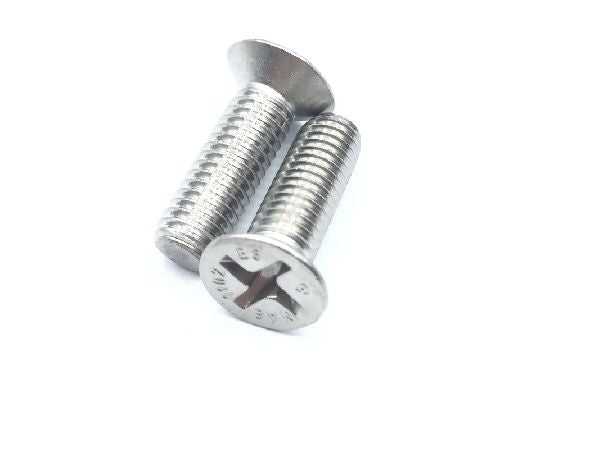

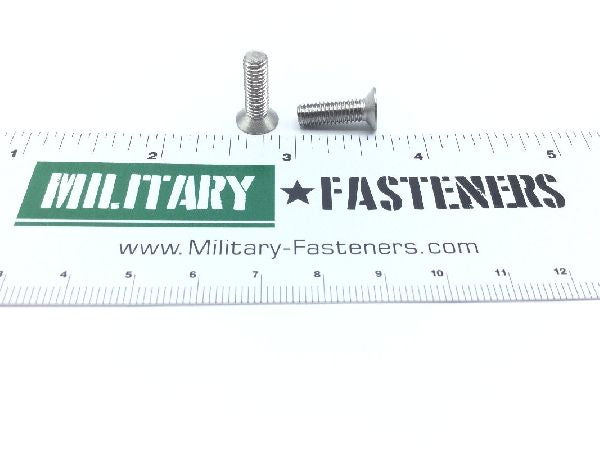

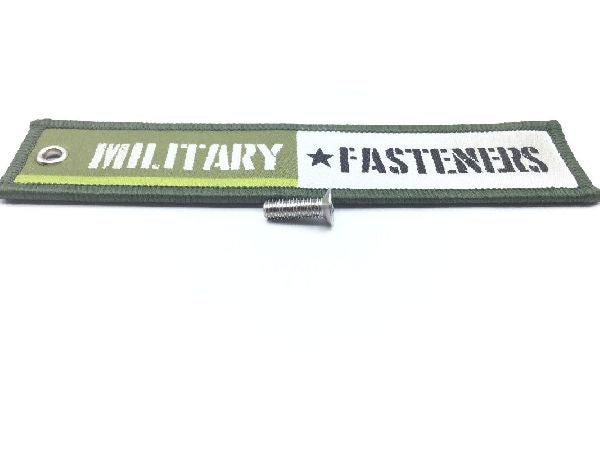

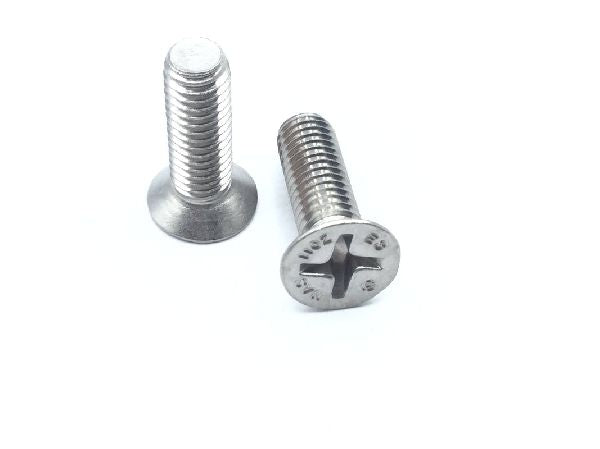

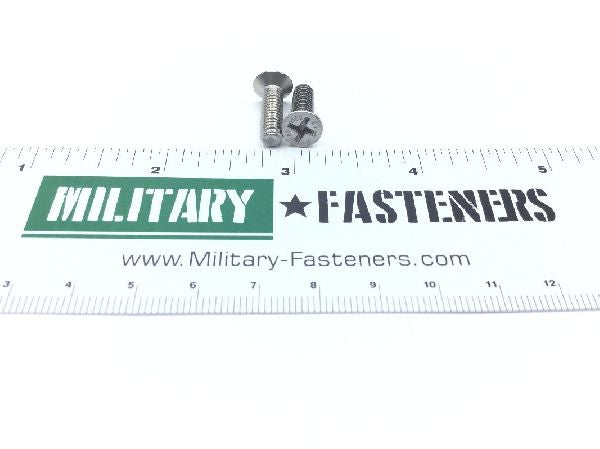

NAS1102E3-10 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.96

Units per Pack 25

Price per Pack $49.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $49.00

Add item to quote

Head Style

Flat countersunk

Material

Iron alloy 660

Surface Treatment

Cl federal specification all treatment responses type 2 qq-p-416

Thread Class

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.594 inches and 0.625 inches
Internal Drive Style: Torque set
Material Specification: Ams 5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1102 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.452 inches and 0.545 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.322 inches and 0.385 inches
