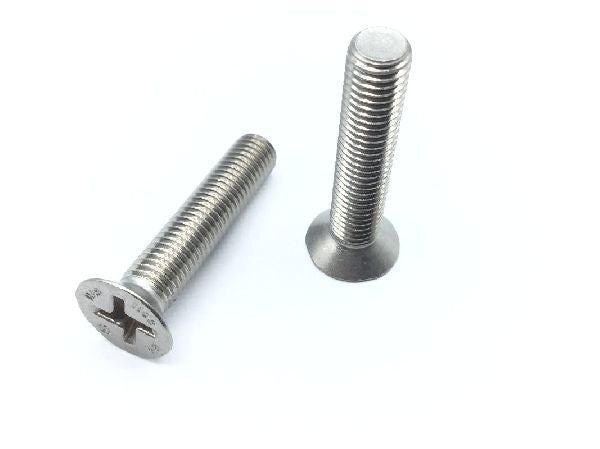

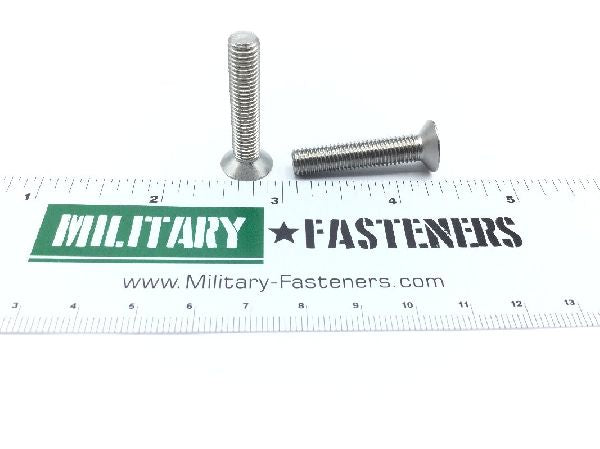

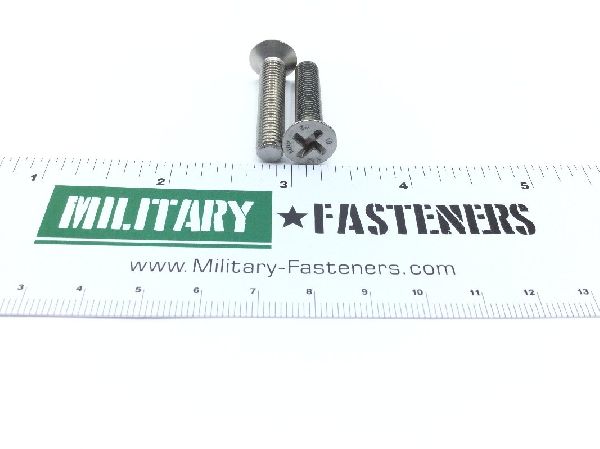

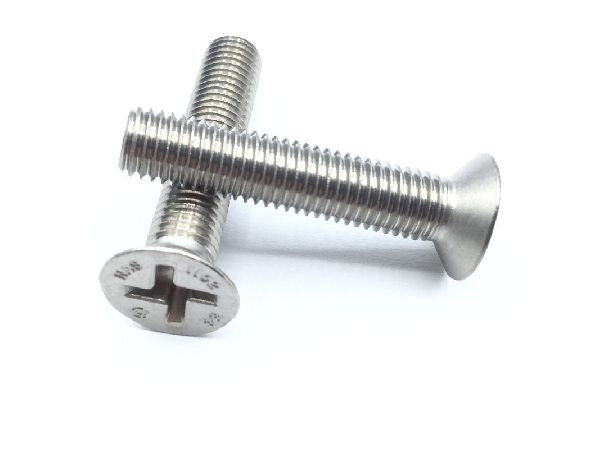

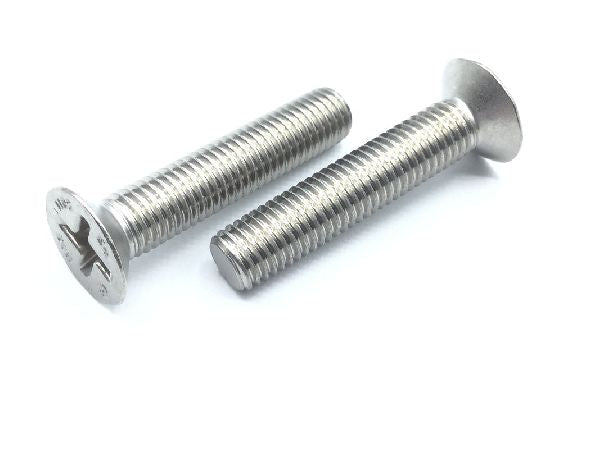

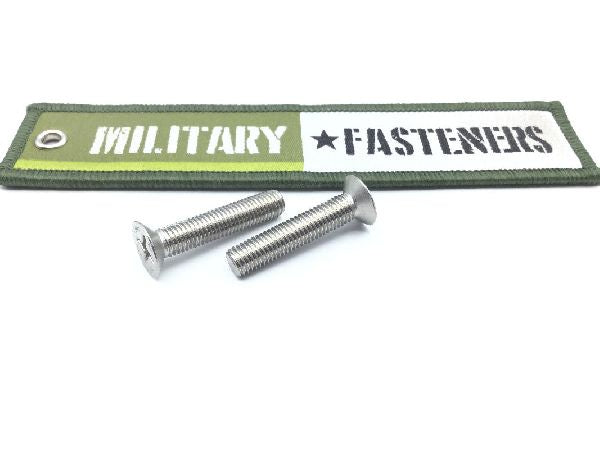

NAS1102E4-20 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 1.188 inches and 1.250 inches
Internal Drive Style: Torque set
Material Specification: Ams5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 1.011 inches and 1.144 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.442 inches and 0.507 inches
