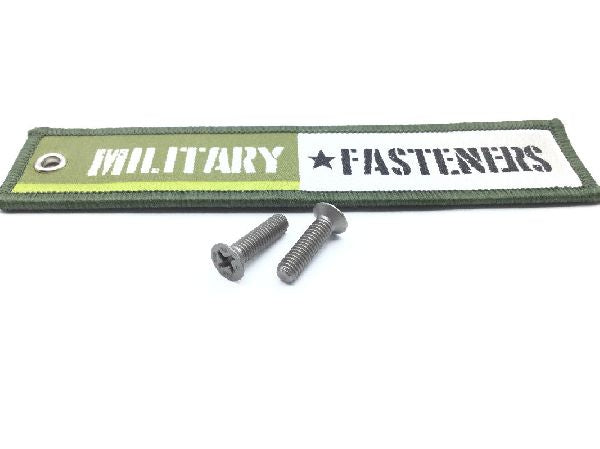

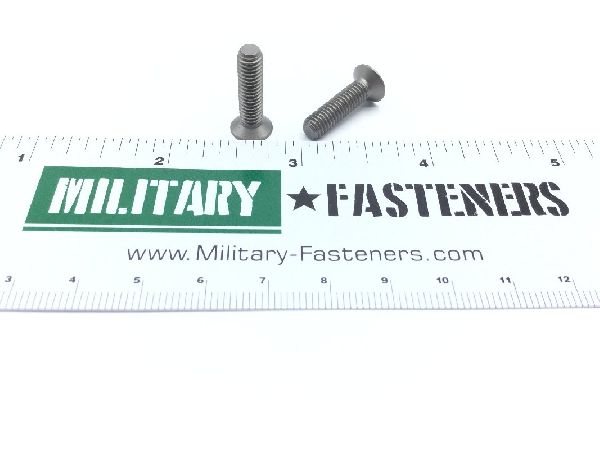

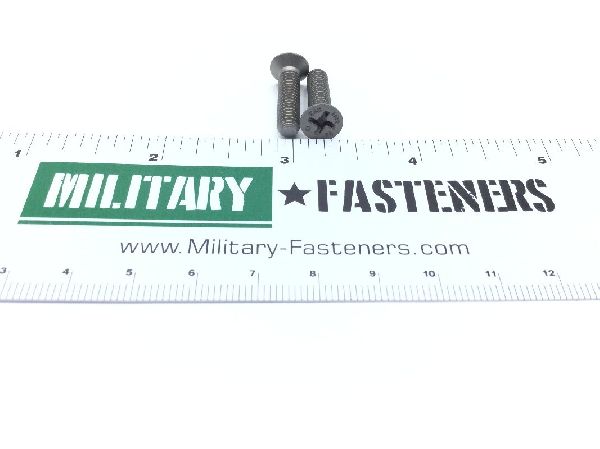

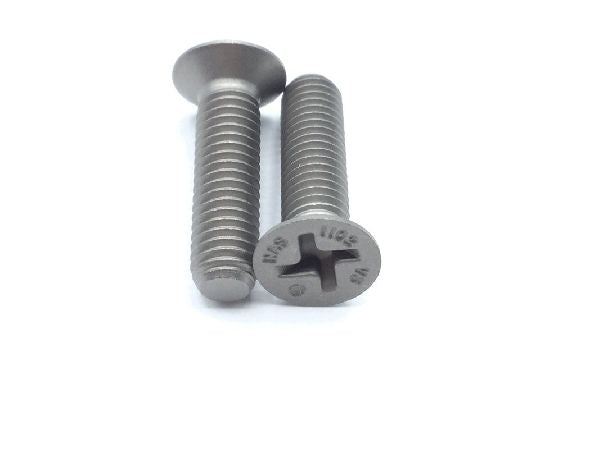

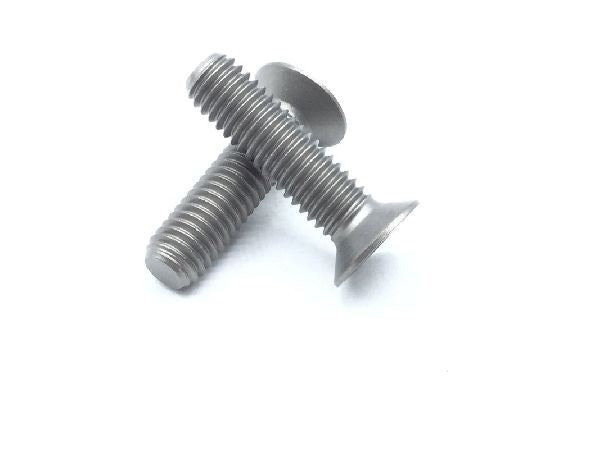

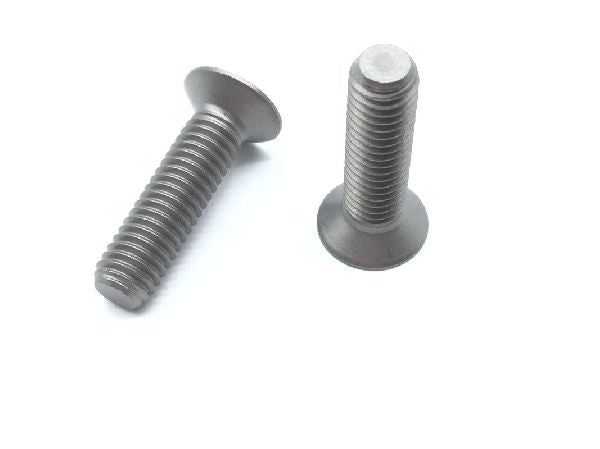

NAS1102V3-12 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $5.51

Units per Pack 10

Price per Pack $55.10

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $55.10

Add item to quote

Head Style

Flat countersunk

Material

Titanium

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.719 inches and 0.750 inches
Internal Drive Style: Torque set
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material Specification: Nas621 comp 6al-4v assn standard single material response
Specification Data: 80205-nas1102 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.577 inches and 0.670 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.371 inches and 0.385 inches
