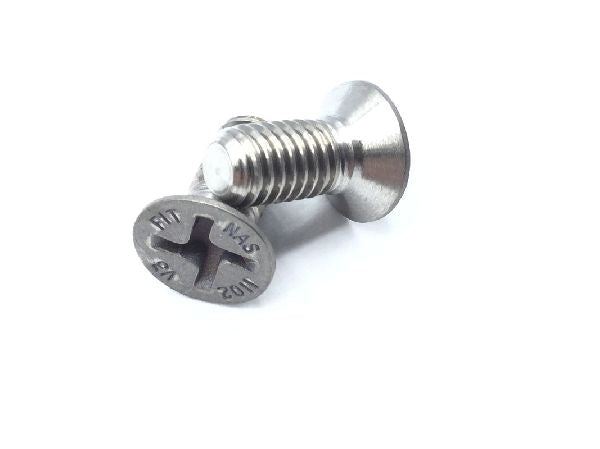

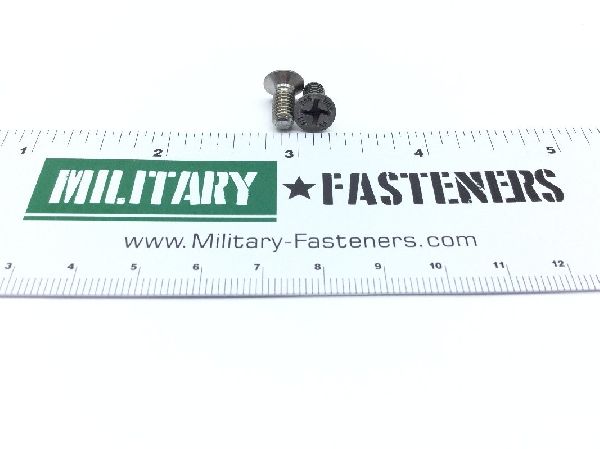

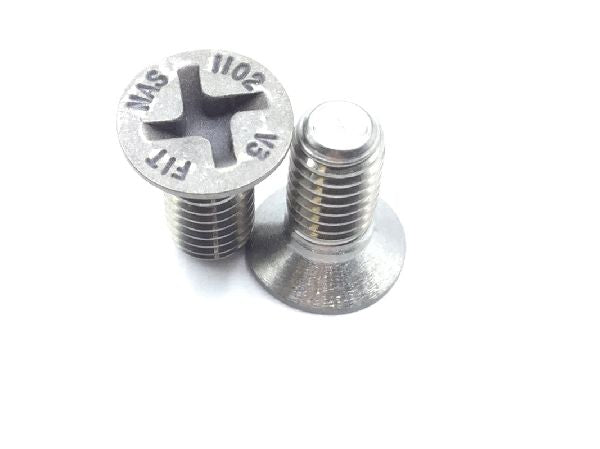

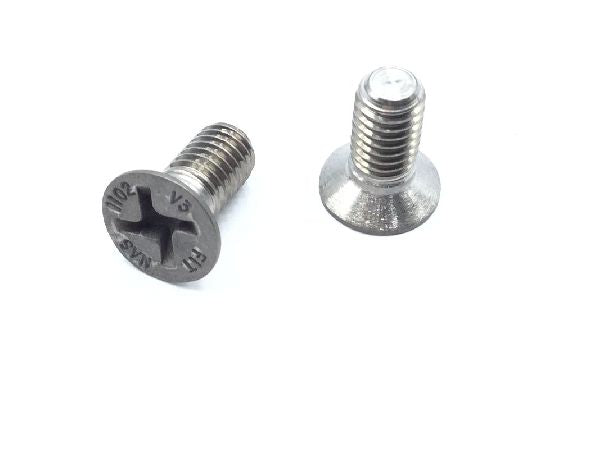

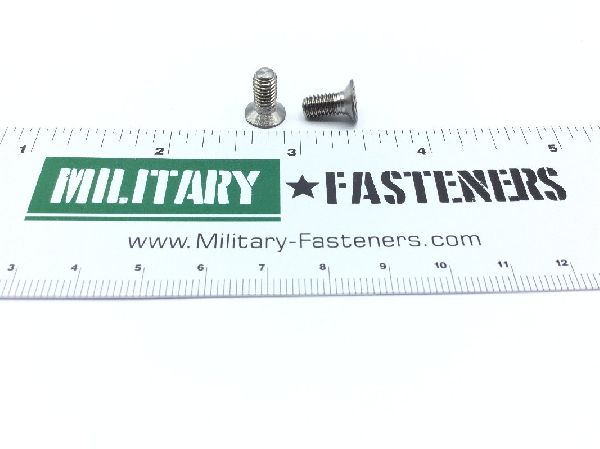

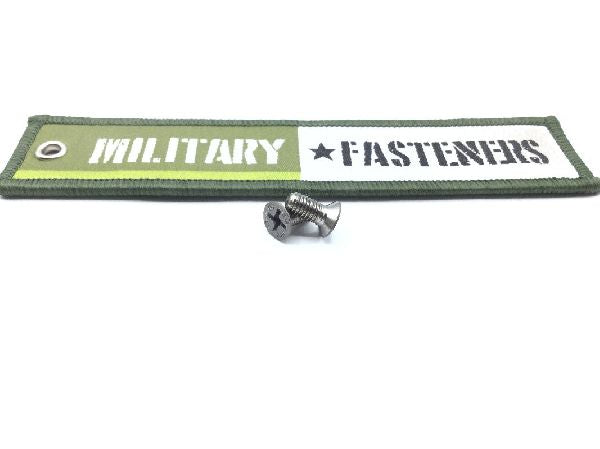

NAS1102V3-7 Machine Screw

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.407 inches and 0.438 inches
Internal Drive Style: Torque set
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Titanium alloy
Screw Material Specification: Nas 621 comp 6al-4v assn standard 1st material response or ams 4928 assn standard 2nd material response
Specification Data: 80205-nas1102 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.265 inches and 0.358 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.322 inches and 0.385 inches
