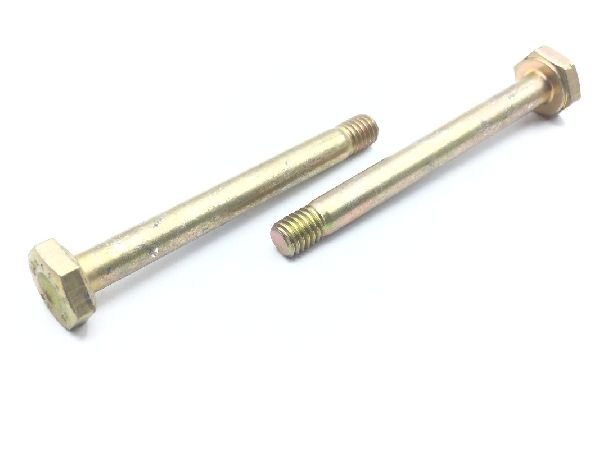

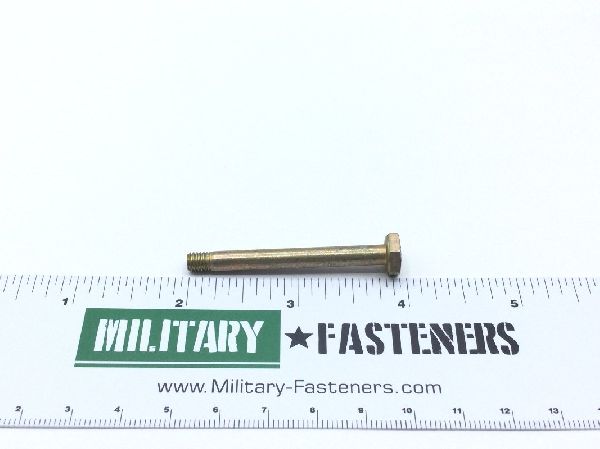

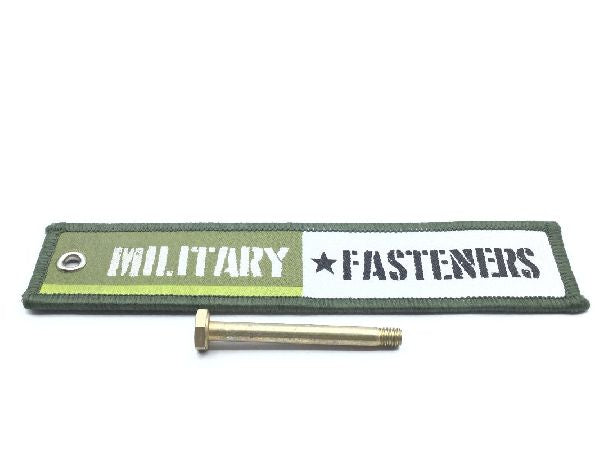

NAS1103-25 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $0.90

Units per Pack 50

Price per Pack $45.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $45.00

Add item to quote

Head Style

Dished hexagon

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740

Surface Treatment

Ty2 cl3 federal specification single treatment response qq-p-416

Thread Class

Fastener Length: 1.838 inches
Grip Diameter: 0.1885 inches
Grip Length: 1.562 inches
Hardness Rating: 36.0 rockwell c
Head Height: 0.110 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.276 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Between Flats: 0.367 inches
