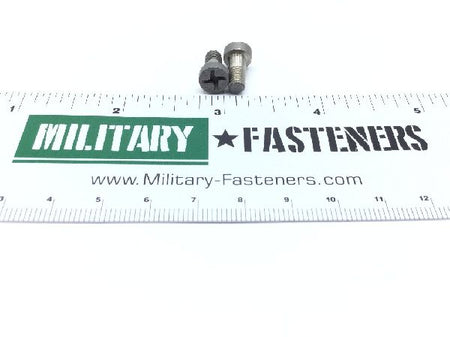

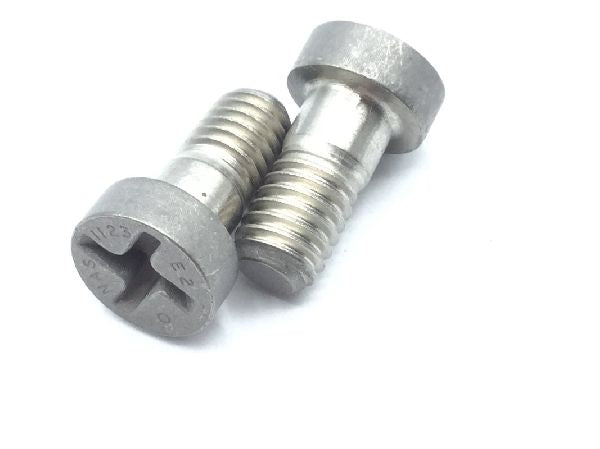

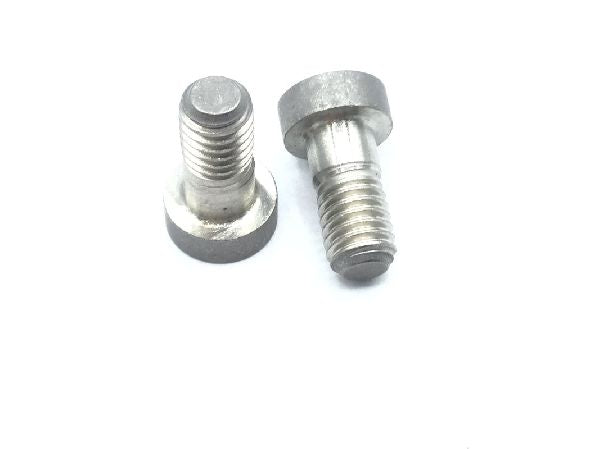

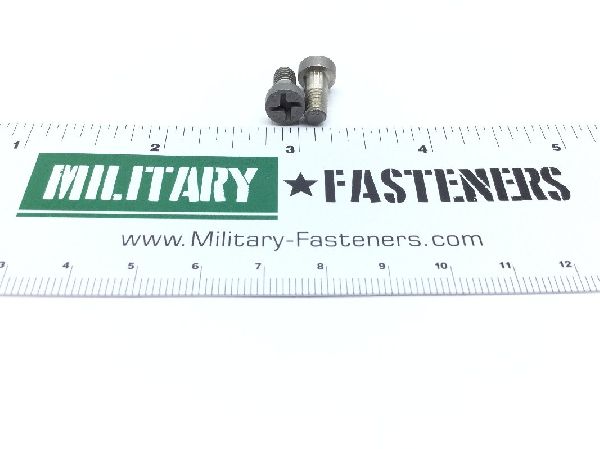

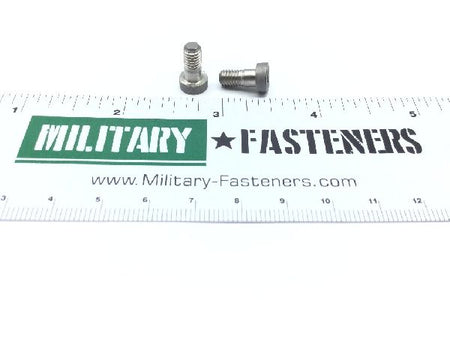

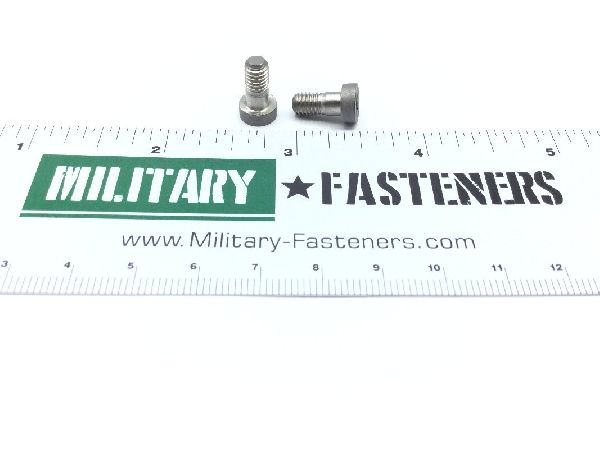

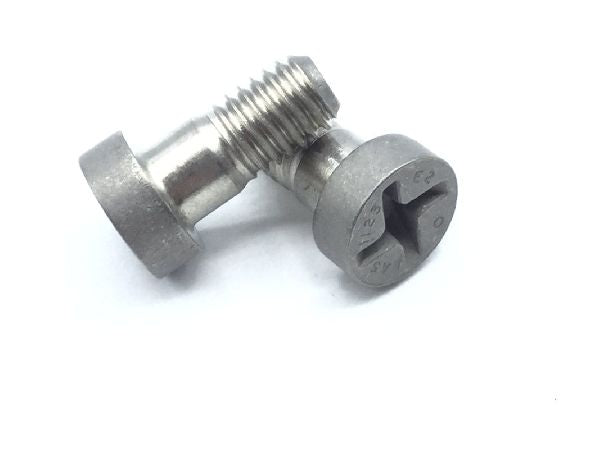

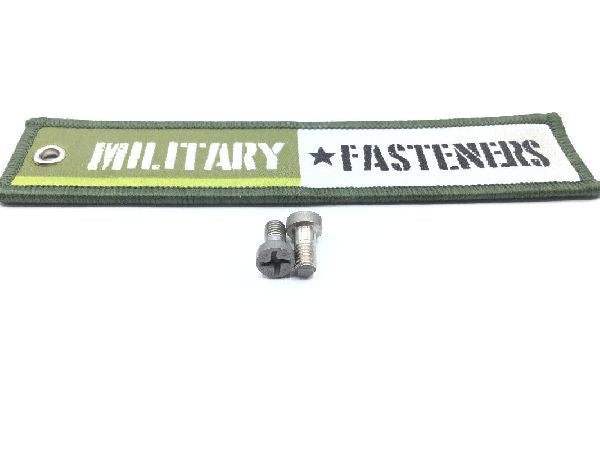

NAS1123E2 Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $4.08

Units per Pack 10

Price per Pack $40.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $40.80

Add item to quote

Head Style

Flat chamfer

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.386 inches and 0.416 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 0.115 inches and 0.135 inches
Head Height: Between 0.103 inches and 0.118 inches
Internal Drive Style: Offset cruciform (torque set)
Material Specification: Ams 5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1123 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.251 inches and 0.301 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.306 inches and 0.313 inches
