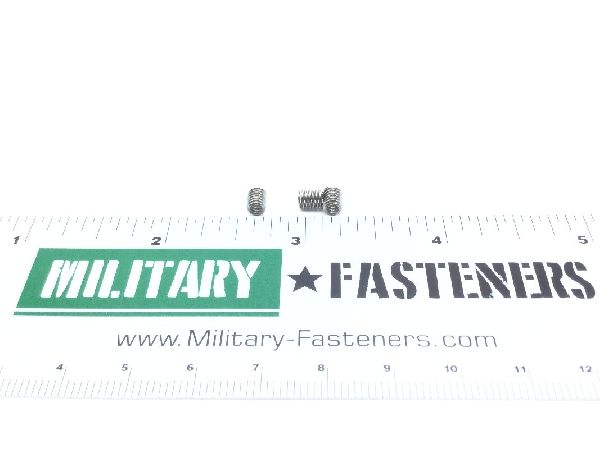

NAS1130-04-20 Screw Thread Insert

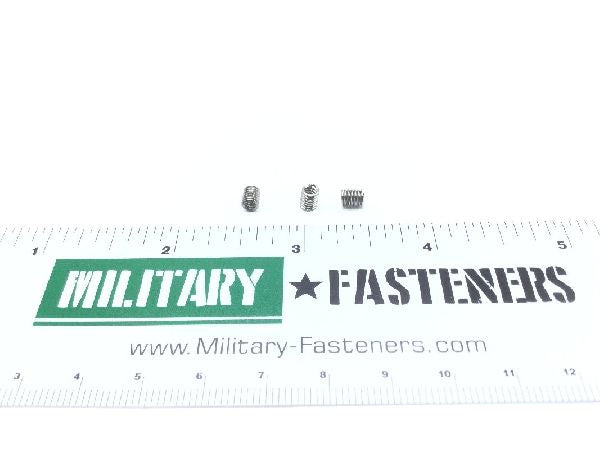

NAS1130-04-20 Screw Thread Insert (2)

NAS1130-04-20 Screw Thread Insert (3)

NAS1130-04-20 Screw Thread Insert (4)

NAS1130-04-20 Screw Thread Insert (5)

NAS1130-04-20 Screw Thread Insert (6)

NAS1130-04-20 Screw Thread Insert (7)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1130-04-20 Screw Thread Insert

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.73

Units per Pack 50

Price per Pack $36.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $36.50

Add item to quote

Material

Steel

Thread Class

2b

Thread Size

0.112 inches

Insert Size: 0.144 in. min. and 0.159 in. max dia
Length: 0.224 inches
Material Specification: Ams 7425 assn standard single material response
Style Designator: Coil
Thread Direction: Right-hand
Thread Length: 0.224 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
