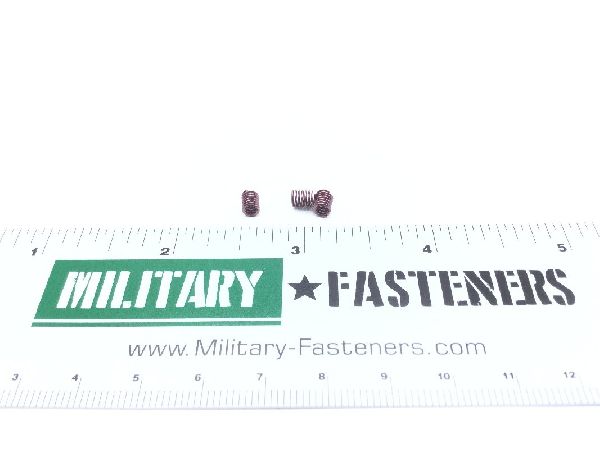

NAS1130-04L20 Screw Thread Insert

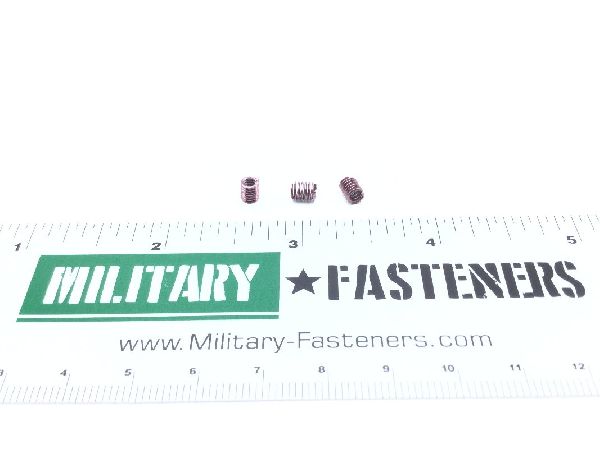

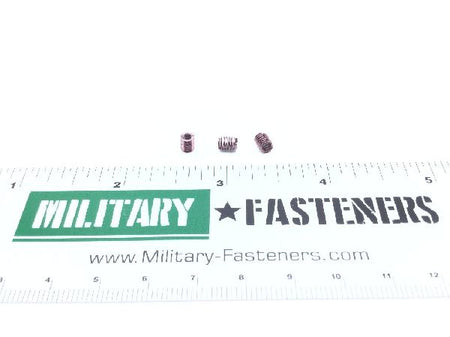

NAS1130-04L20 Screw Thread Insert (2)
NAS1130-04L20 Screw Thread Insert (3)
NAS1130-04L20 Screw Thread Insert (4)
NAS1130-04L20 Screw Thread Insert (5)
NAS1130-04L20 Screw Thread Insert
NAS1130-04L20 Screw Thread Insert (2)
NAS1130-04L20 Screw Thread Insert (3)
NAS1130-04L20 Screw Thread Insert (4)
NAS1130-04L20 Screw Thread Insert (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1130-04L20 Screw Thread Insert

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.9000
Price per Unit $0.77
Units per Pack 50
Price per Pack $38.50
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:
Total Packs 1
Total Price $38.50
Add item to quote
Material
Steel
Thread Class
2b
Thread Size
0.112 inches
Features
Self-locking
Features Provided
Self-locking
Insert Size
0.144 in. min and 0.159 in. max diameter
Length
0.224 inches
Material Specification
Ams 7245 assn standard single material response
Specification Data
80205-nas1130 professional/industrial association standard
Style Designator
Coil
Thread Direction
Right-hand
Thread Length
0.224 inches
Thread Qty Per Inch (tpi)
40
Thread Series Designator
Unc (coarse thread)
