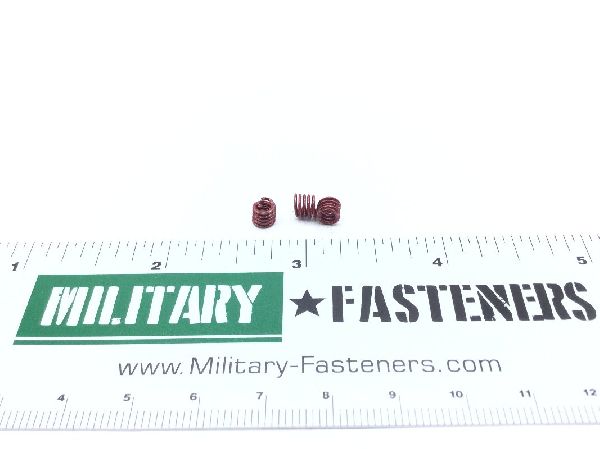

NAS1130-06L15 Screw Thread Insert

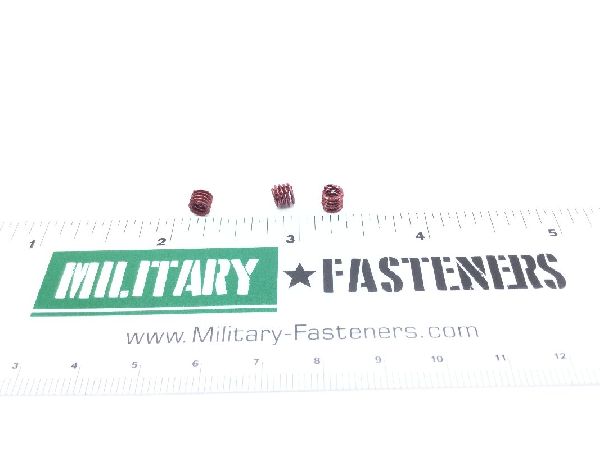

NAS1130-06L15 Screw Thread Insert (2)

NAS1130-06L15 Screw Thread Insert (3)

NAS1130-06L15 Screw Thread Insert (4)

NAS1130-06L15 Screw Thread Insert (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1130-06L15 Screw Thread Insert

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.97

Units per Pack 50

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Material

Steel comp 304 actuator arm

Thread Class

2b

Thread Size

0.138 inches

Insert Size: 0.178 in. min and 0.195 in. max dia
Length: 0.207 inches
Special Features: Self-locking
Specification Data: 80205-nas1130 professional/industrial association standard
Style Designator: Coil
Thread Direction: Right-hand
Thread Length: 0.207 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
