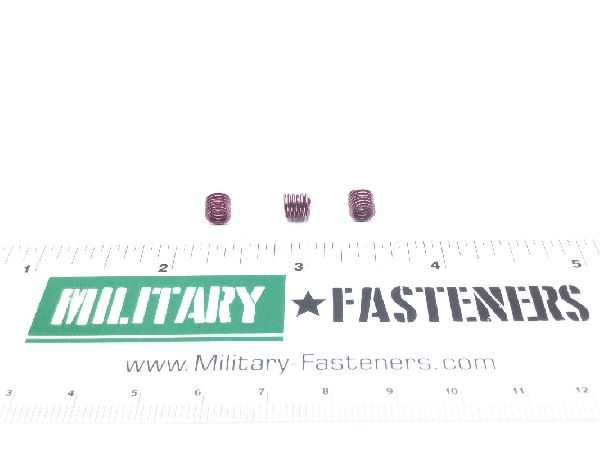

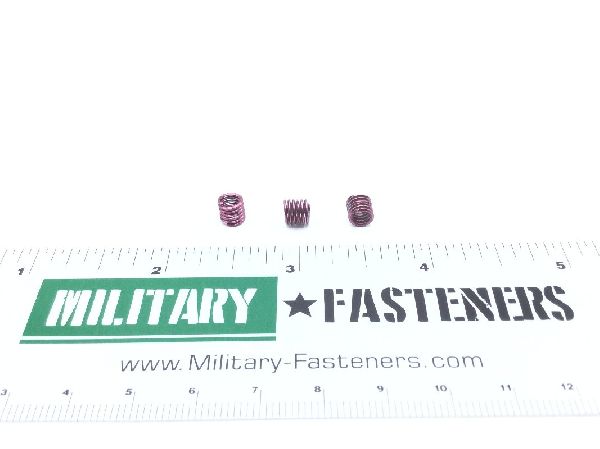

NAS1130-08L15 Screw Thread Insert
NAS1130-08L15 Screw Thread Insert (2)
NAS1130-08L15 Screw Thread Insert (3)
NAS1130-08L15 Screw Thread Insert (4)
NAS1130-08L15 Screw Thread Insert (5)
NAS1130-08L15 Screw Thread Insert
NAS1130-08L15 Screw Thread Insert (2)
NAS1130-08L15 Screw Thread Insert (3)
NAS1130-08L15 Screw Thread Insert (4)
NAS1130-08L15 Screw Thread Insert (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1130-08L15 Screw Thread Insert

Product Series
NAS
ECCN
EAR99
Schedule
7616.10.1000
Price per Unit $0.75
Units per Pack 50
Price per Pack $37.50
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:
Total Packs 1
Total Price $37.50
Add item to quote
Material
Steel comp 304
Thread Size
0.164 inches
Insert Size
0.205 in. min. and 0.220 in. max. dia.
Length
0.246 inches
Style Designator
Coil
Thread Direction
Right-hand
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unc (coarse thread)
