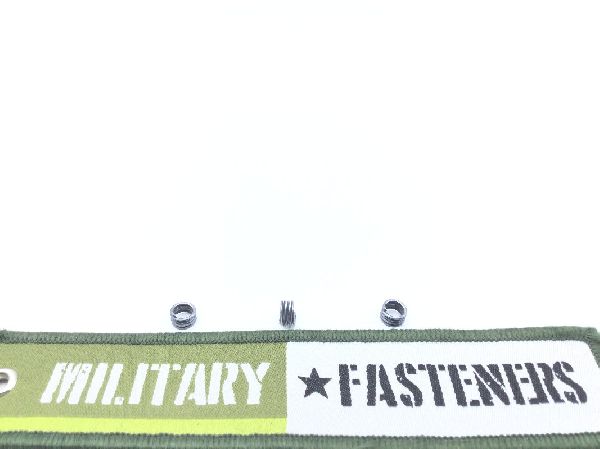

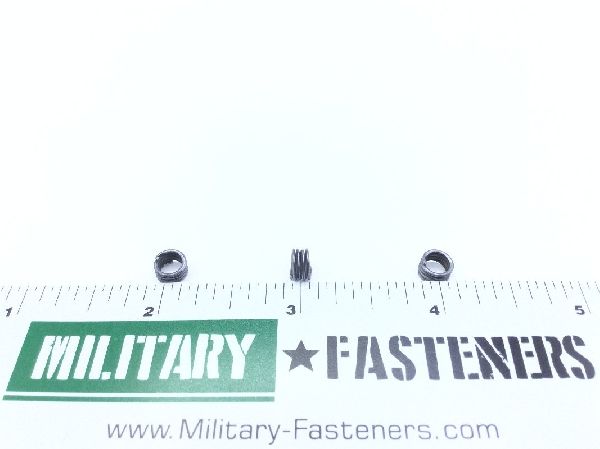

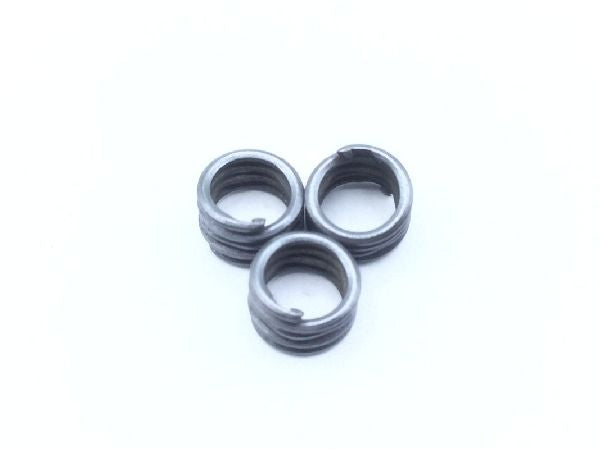

NAS1130-3L10D Screw Thread Insert

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.36

Units per Pack 25

Price per Pack $34.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $34.00

Add item to quote

Material

Steel comp

Thread Class

3b

Thread Size

0.19 inches

Features: Self-locking
Features Provided: Self-locking
Insert Size: 0.236 inch min and 0.256 inch max diameter
Length: 0.19 inches
Material Specification: Ams 7425 assn standard single material response
Style Designator: Coil
Thread Direction: Right-hand
Thread Length: 0.19 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
