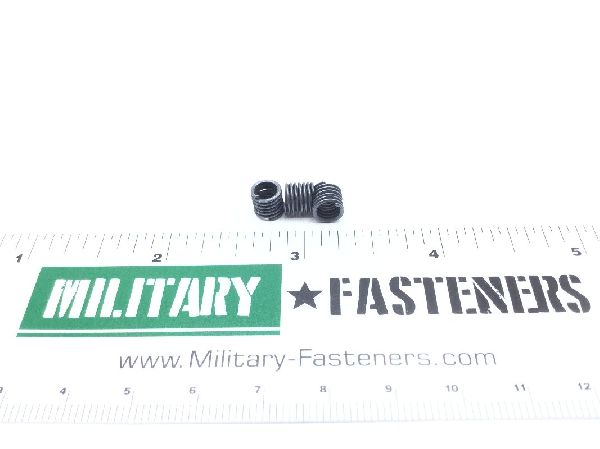

NAS1130-3L15D Screw Thread Insert

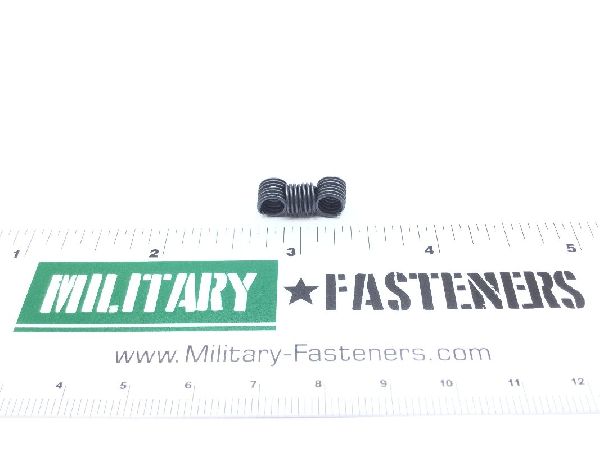

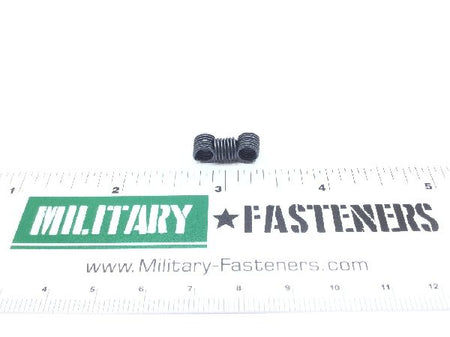

NAS1130-3L15D Screw Thread Insert (2)

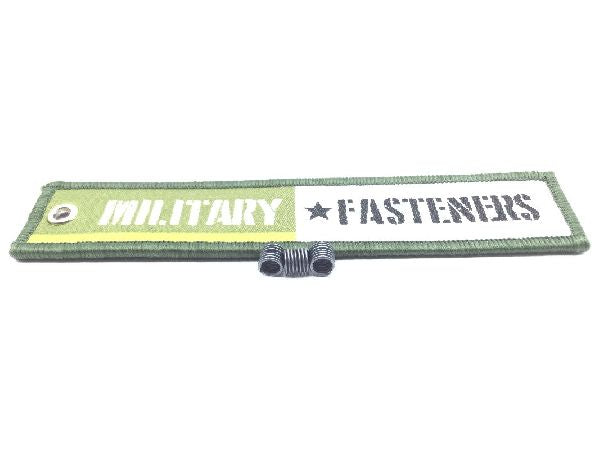

NAS1130-3L15D Screw Thread Insert (3)

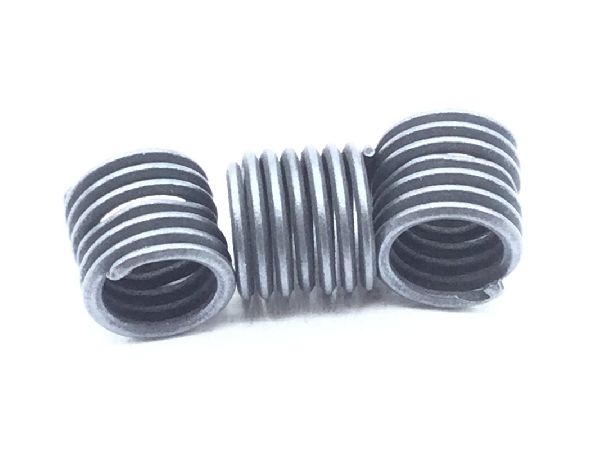

NAS1130-3L15D Screw Thread Insert (4)

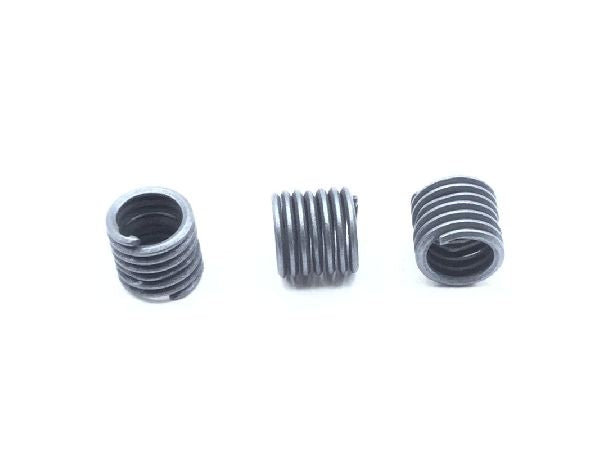

NAS1130-3L15D Screw Thread Insert (5)
NAS1130-3L15D Screw Thread Insert (6)
NAS1130-3L15D Screw Thread Insert
NAS1130-3L15D Screw Thread Insert (2)
NAS1130-3L15D Screw Thread Insert (3)
NAS1130-3L15D Screw Thread Insert (4)
NAS1130-3L15D Screw Thread Insert (5)
NAS1130-3L15D Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1130-3L15D Screw Thread Insert

Product Series
NAS
ECCN
EAR99
Schedule
7318.16.0085
Price per Unit $0.84
Units per Pack 50
Price per Pack $42.00
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:
Total Packs 1
Total Price $42.00
Add item to quote
Material
Steel comp 304
Thread Class
3b
Thread Size
0.190 inches
Features
Self-locking
Features Provided
Self-locking
Insert Size
0.236 in. min and 0.256 inch max diameter
Length
0.285 inches
Material Specification
Ams 7245 assn standard single material response
Specification Data
80205-nas1130 professional/industrial association standard
Style Designator
Coil
Thread Direction
Right-hand
Thread Length
0.285 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unf (fine thread)
