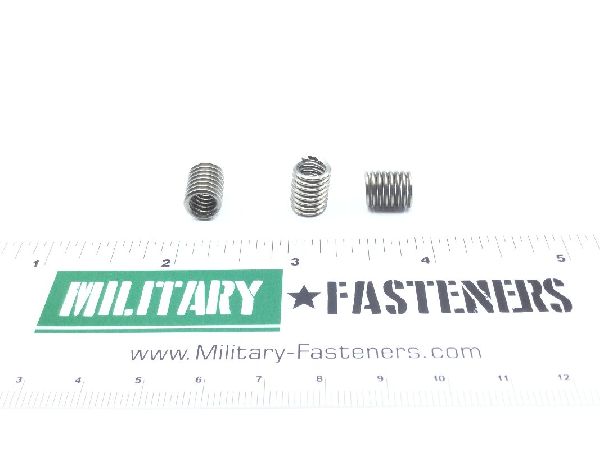

NAS1130-4-20 Screw Thread Insert

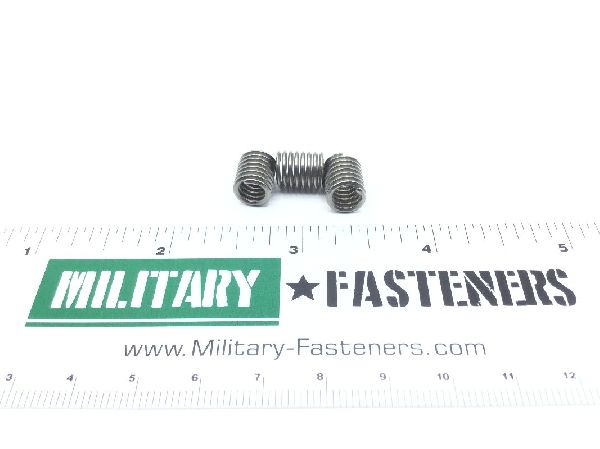

NAS1130-4-20 Screw Thread Insert (2)

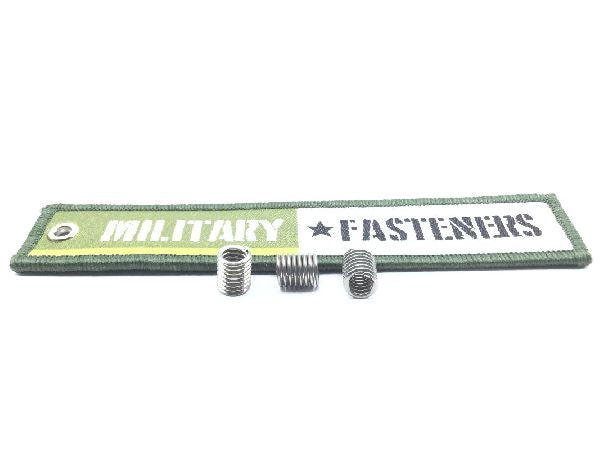

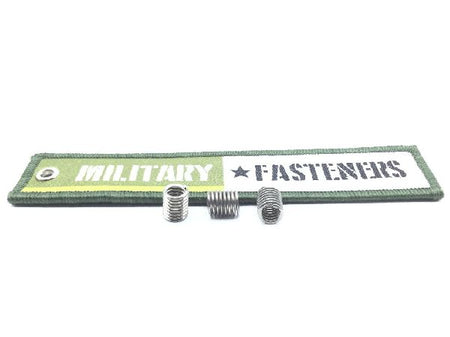

NAS1130-4-20 Screw Thread Insert (3)

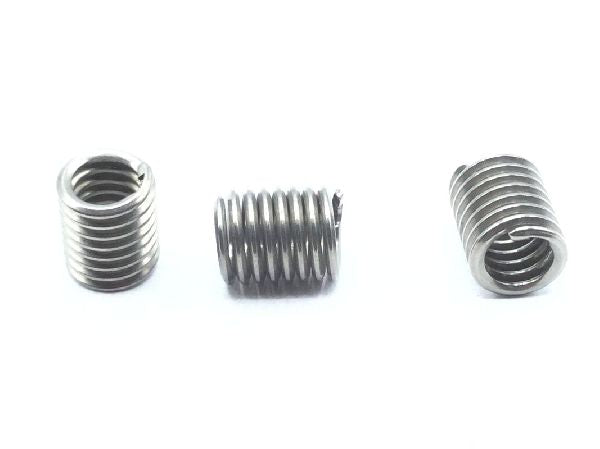

NAS1130-4-20 Screw Thread Insert (4)

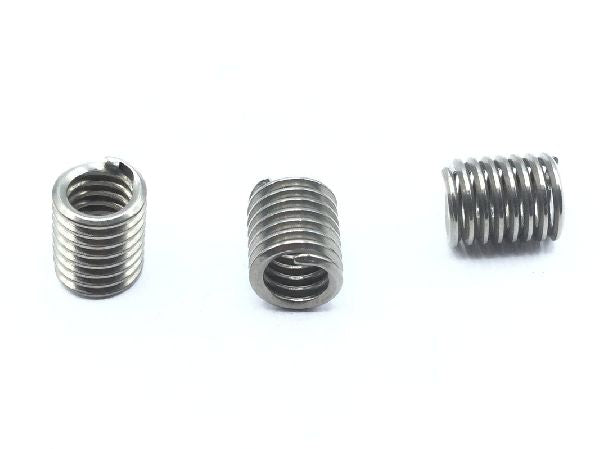

NAS1130-4-20 Screw Thread Insert (5)

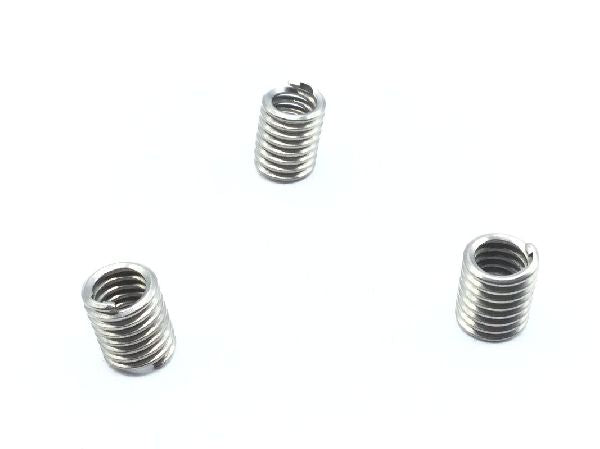

NAS1130-4-20 Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1130-4-20 Screw Thread Insert

Product Series
NAS
ECCN
EAR99
Schedule
7318.16.0085
Price per Unit $0.90
Units per Pack 50
Price per Pack $45.00
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:
Total Packs 1
Total Price $45.00
Add item to quote
Material
Steel comp 302 or steel comp 304
Thread Size
0.112 inches
Insert Size
0.159 in.max 0.144 in.min
Length
0.224 inches
Material Specification
Aisi/sae assn standard single material response
Special Features
Staggered coils' grip location
Style Designator
Coil
Thread Direction
Right-hand
Thread Length
0.224 inches
Thread Qty Per Inch (tpi)
40
Thread Series Designator
Unc (coarse thread)
