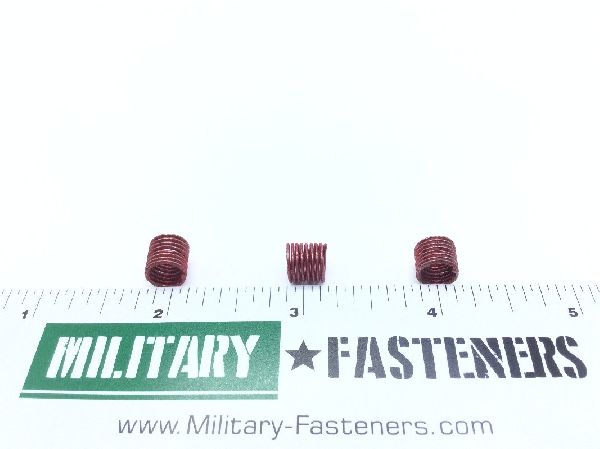

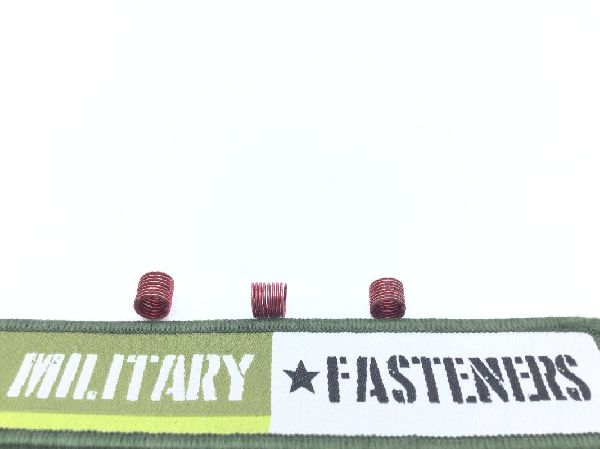

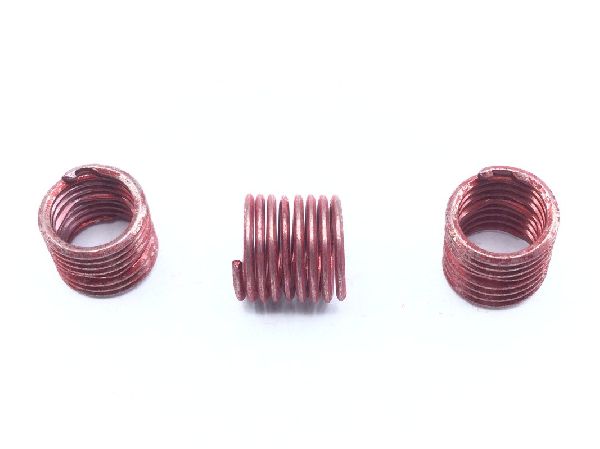

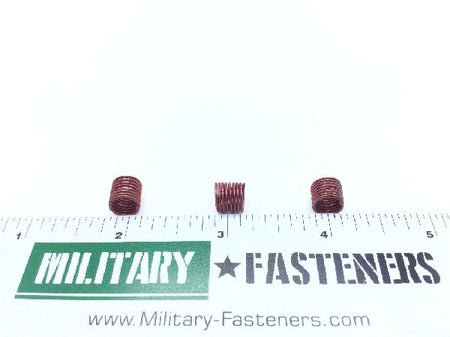

NAS1130-4FL15 Screw Thread Insert

Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.1000

Price per Unit $0.47

Units per Pack 100

Price per Pack $47.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $47.00

Add item to quote

Material

Steel comp 304

Thread Class

2a

Thread Size

0.250 inches

Insert Size: 0.250x28
Length: 0.375 inches
Mounting Method: Threaded hole
Part Name Assigned By Controlling Agency: Insert screw thread tangless self locking
Special Features: Item is self locking
Style Designator: Coil
Thread Direction: Right-hand
Thread Length: 0.375 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
