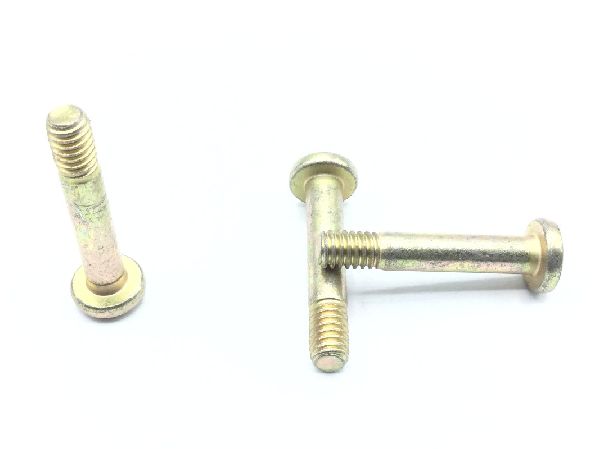

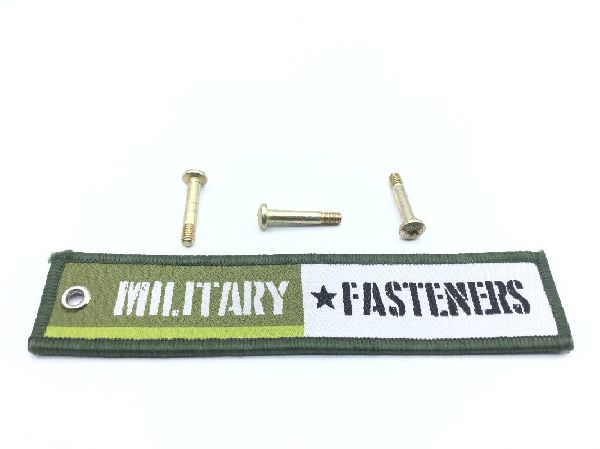

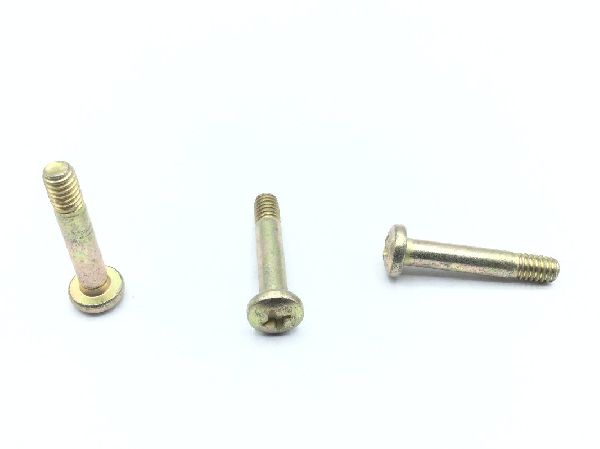

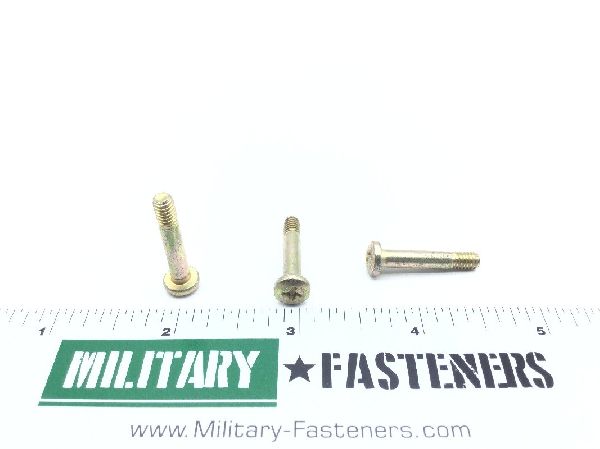

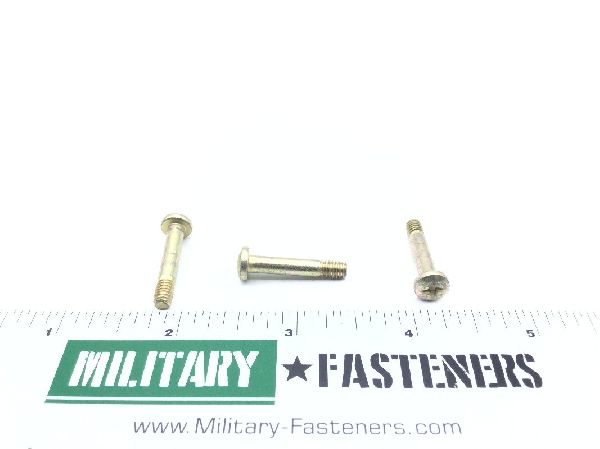

NAS1132-10 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.39

Units per Pack 25

Price per Pack $34.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $34.75

Add item to quote

Head Style

Pan

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Fastener Length: Between 0.886 inches and 0.916 inches
Grip Diameter: Between 0.1625 inches and 0.1635 inches
Grip Length: 0.625 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.105 inches and 0.115 inches
Internal Drive Style: Offset cruciform (torque set)
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1132 professional/industrial association standard
Surface Finish: 32.0 microinches bearing surface of head
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 0.276 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Head Diameter: Between 0.289 inches and 0.322 inches
