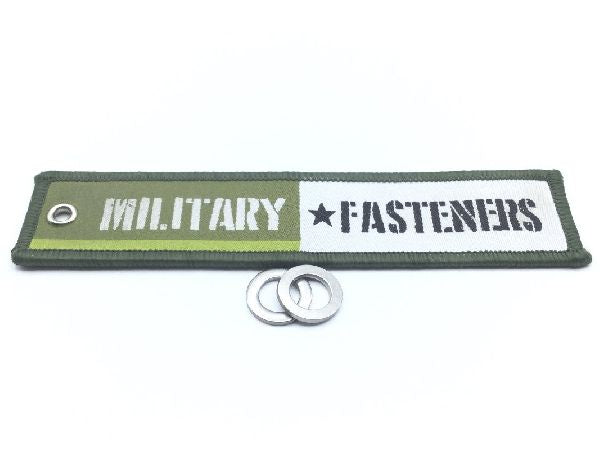

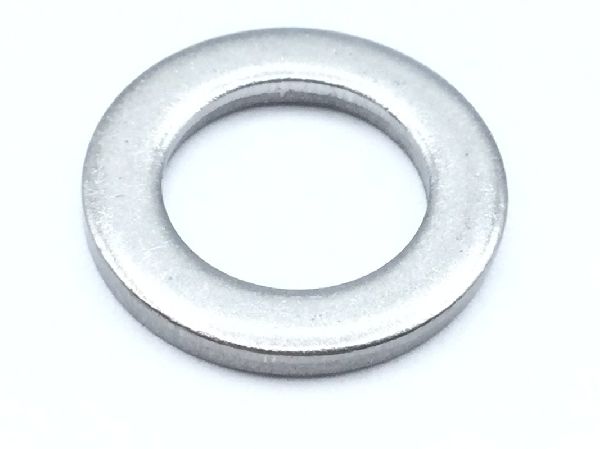

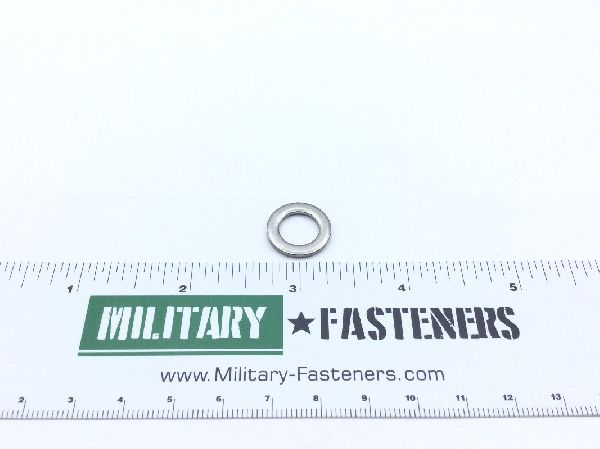

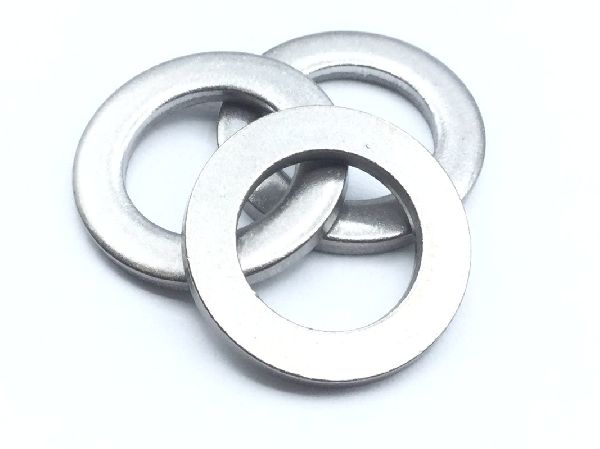

NAS1149C0663R Flat Washer

Product Series: NAS
ECCN: EAR99
Schedule: 8112.29.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Stainless steel or steel comp 321 or steel comp 347 or steel comp 348

Center Hole Shape: Round
Cross Sectional Shape: Rectangular
Edge Shape: Round
Material Specification: Mil-s-5059 military specification 1st material response and mil-s-6721 military specification 2nd material response and mil-s-6721 military specification 3rd material response and mil-s-6721 military specification 4th material response
Nondefinitive Specification/std Data: A type and 2 grade and b class
Overall Diameter: Between 0.620 inches and 0.645 inches
Thickness: Between 0.053 inches and 0.073 inches
Hole Diameter: Between 0.380 inches and 0.400 inches
