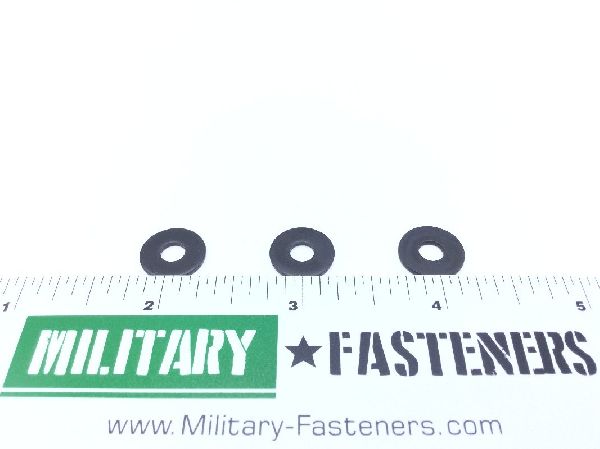

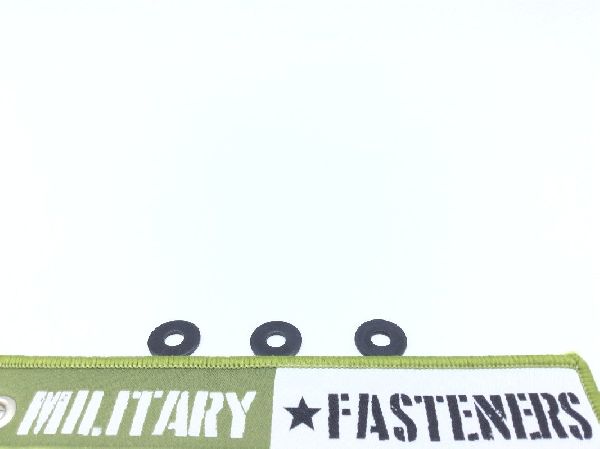

NAS1149CN949B Flat Washer

Product Series: NAS
ECCN: EAR99
Schedule: 8112.29.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Stainless Steel

Surface Treatment

Mil-c-13924 military specification single treatment response

Center Hole Shape: 1 round
Cross Sectional Shape: Rectangular
Edge Shape: Round
Material Specification: Mil-s-5059 military specification single material response or mil-s-6721 military specification single material response
Nondefinitive Specification/std Data: A type and 1 grade and b class
Overall Diameter: Between 0.495 inches and 0.52 inches
Thickness: Between 0.039 inches and 0.059 inches
Hole Diameter: Between 0.178 inches and 0.198 inches
