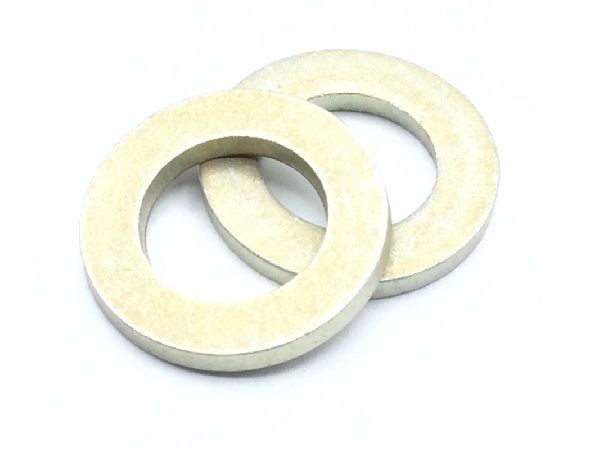

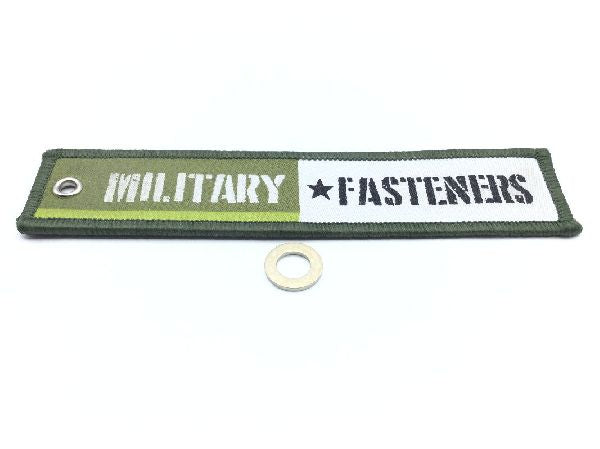

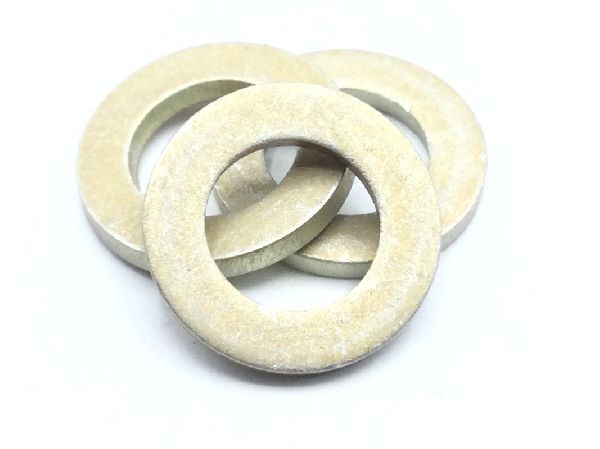

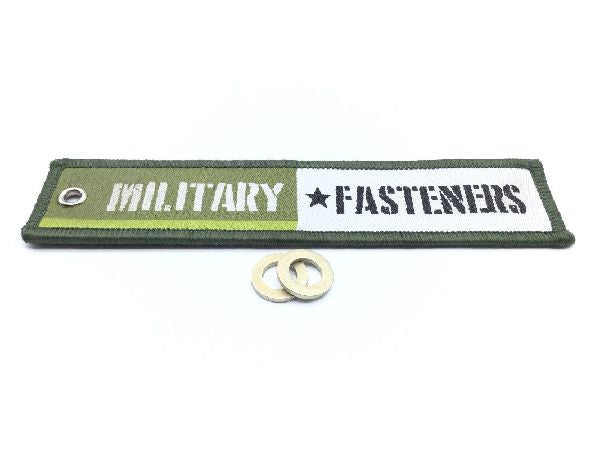

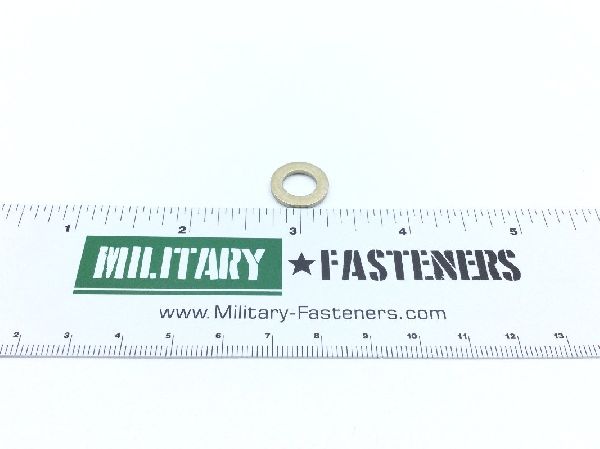

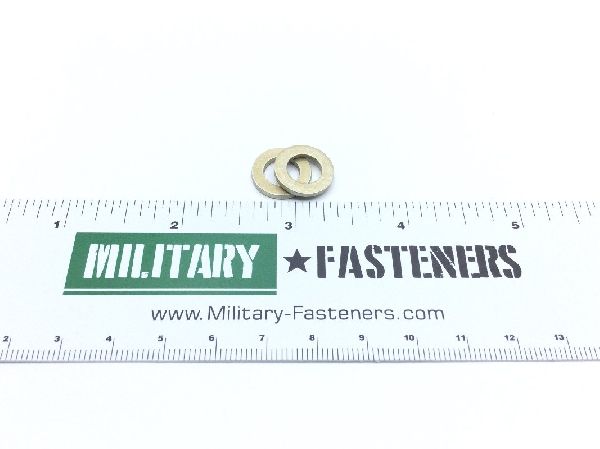

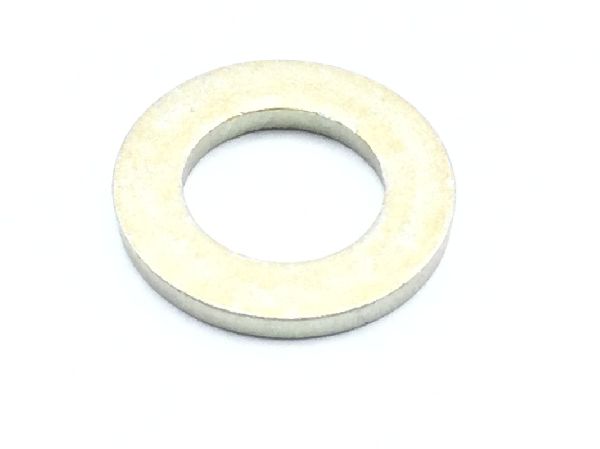

NAS1149D0563J Flat Washer

NAS1149D0563J Flat Washer (2)

NAS1149D0563J Flat Washer (3)

NAS1149D0563J Flat Washer (4)

NAS1149D0563J Flat Washer (5)

NAS1149D0563J Flat Washer (6)

NAS1149D0563J Flat Washer (7)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1149D0563J Flat Washer

Product Series: NAS
ECCN: EAR99
Schedule: 7318.22.0000

Price per Unit $0.26

Units per Pack 100

Price per Pack $26.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $26.00

Add item to quote

Material

Aluminum alloy 2024

Surface Treatment

Class 3 military specification single treatment response mil-c-5541

Center Hole Shape: Round
Cross Sectional Shape: Rectangular
Edge Shape: Round
End Application: Rg-33 auv mrap
Material Specification: Temper t4 federal specification single material response temper t3 federal specification single material response or qq-a-250/5 qq-a-250/5
Nondefinitive Specification/std Data: A type and 1 grade and d class
Overall Diameter: Between 0.557 inches and 0.582 inches
Thickness: Between 0.057 inches and 0.069 inches
Hole Diameter: Between 0.318 inches and 0.338 inches
