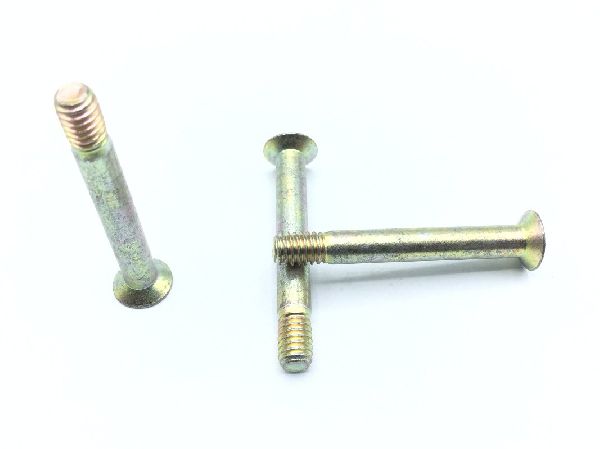

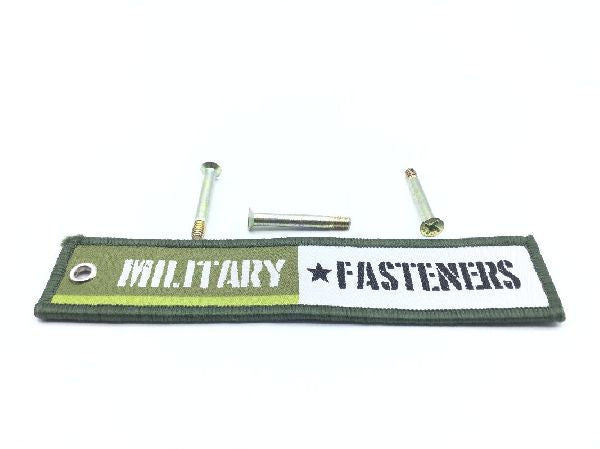

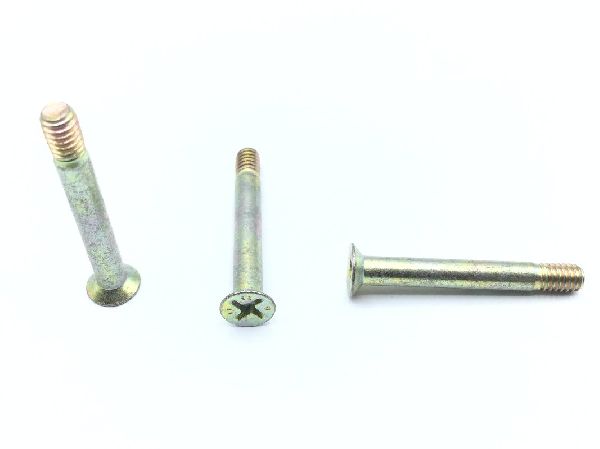

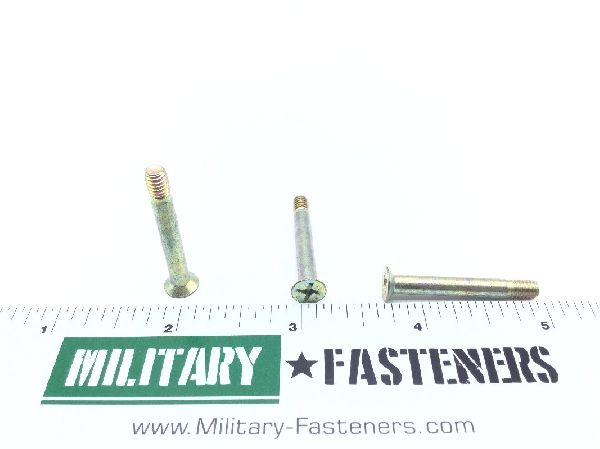

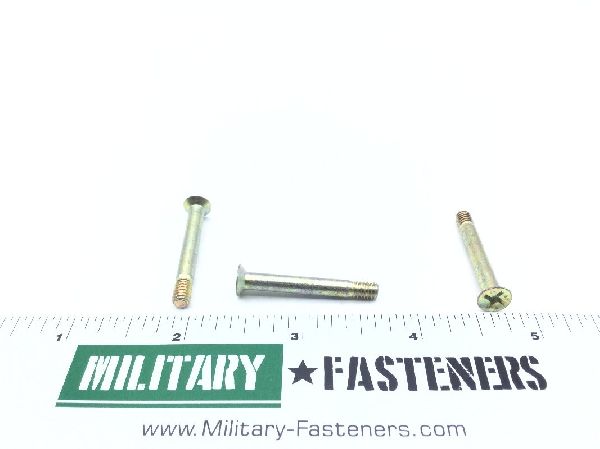

NAS1152-16 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $6.93

Units per Pack 5

Price per Pack $34.65

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $34.65

Add item to quote

Head Style

Flat countersunk

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 1.261 inches and 1.291 inches
Grip Diameter: Between 0.1625 inches and 0.1635 inches
Grip Length: 1.000 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style: Offset cruciform (torque set)
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1152 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 0.276 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Head Diameter: Between 0.280 inches and 0.327 inches
