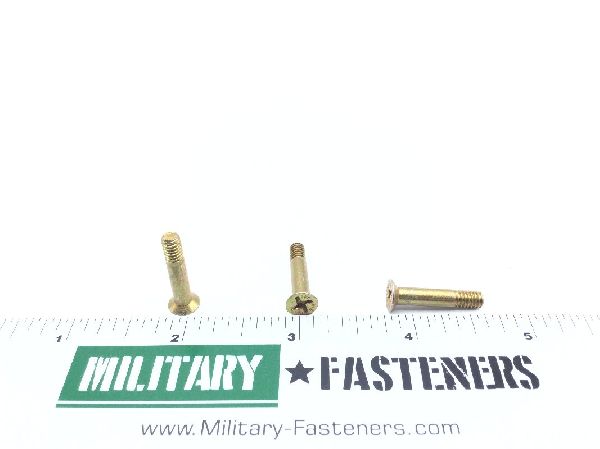

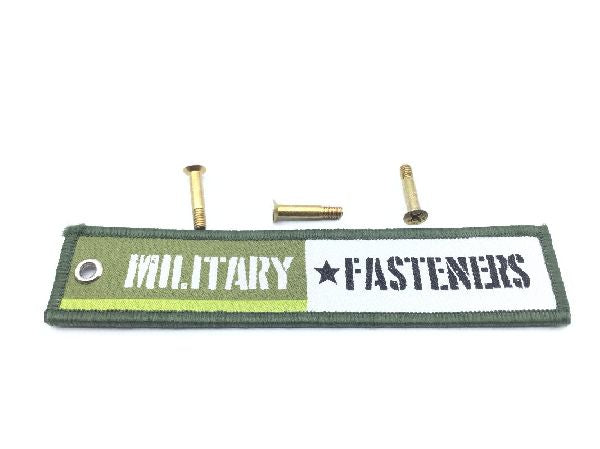

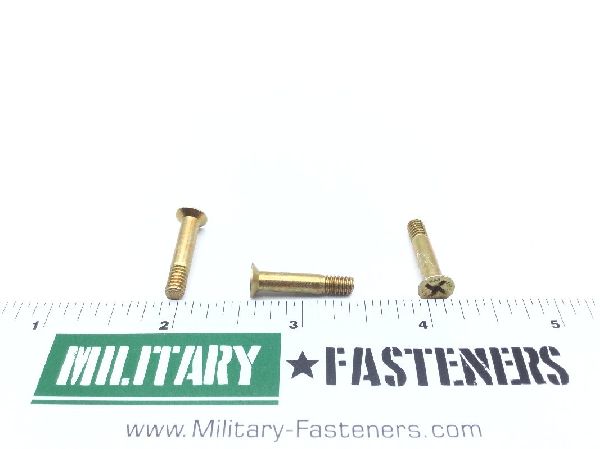

NAS1152-9 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk

Material

Steel comp 4140 or steel comp 4340 or steel comp 8740

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: 0.838 inches
Grip Diameter: Between 0.162 inches and 0.163 inches
Grip Length: 0.562 inches
Internal Drive Style: Offset cruciform (torque set)
Material Specification: Mil-s-5626 military specification 1st material response or mil-s-8844 military specification 2nd material response or mil-s-6049 military specification 3rd material response
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 0.276 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Head Diameter: Between 0.280 inches and 0.337 inches
