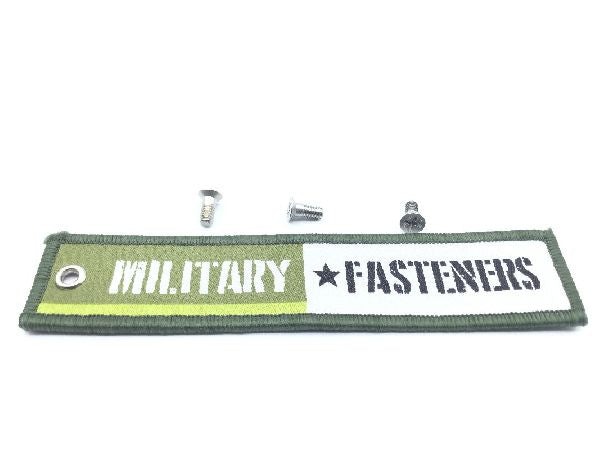

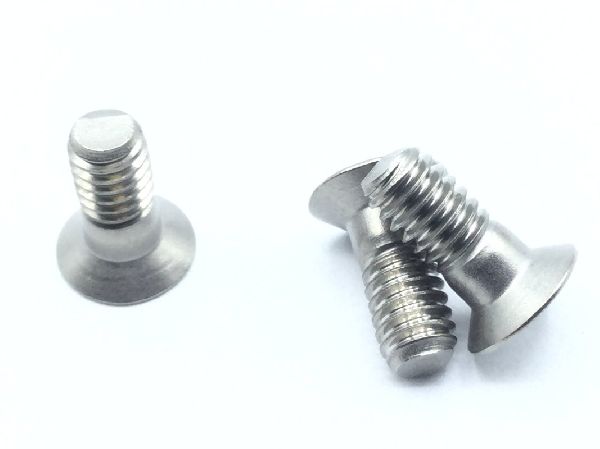

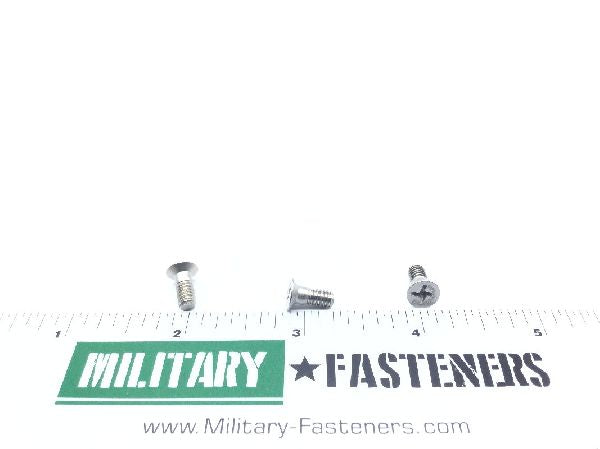

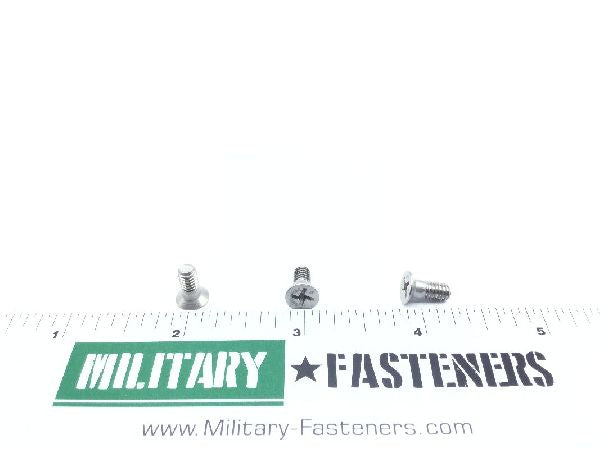

NAS1152E2 Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.386 inches and 0.416 inches
Grip Diameter: Between 0.1625 inches and 0.1635 inches
Grip Length: Between 0.115 inches and 0.135 inches
Internal Drive Style: Offset cruciform (torque set)
Material Specification: Ams 5732 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1152 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.251 inches and 0.301 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Head Diameter: Between 0.328 inches and 0.337 inches
