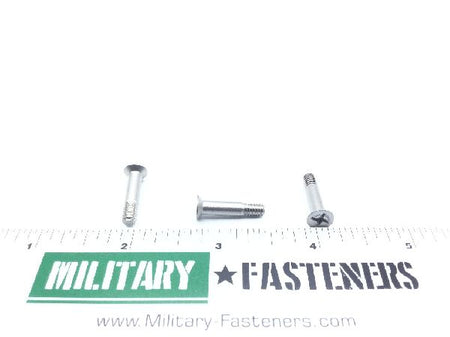

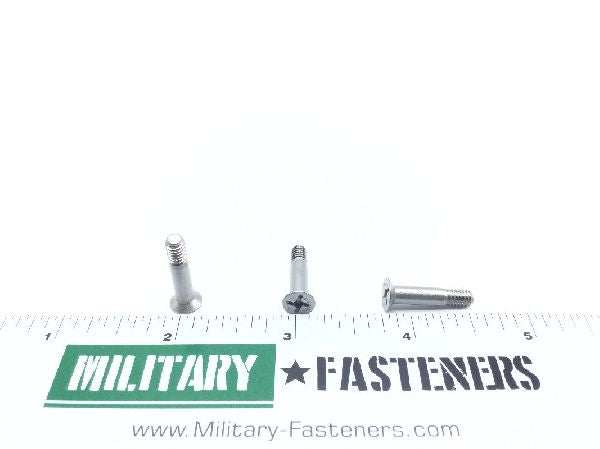

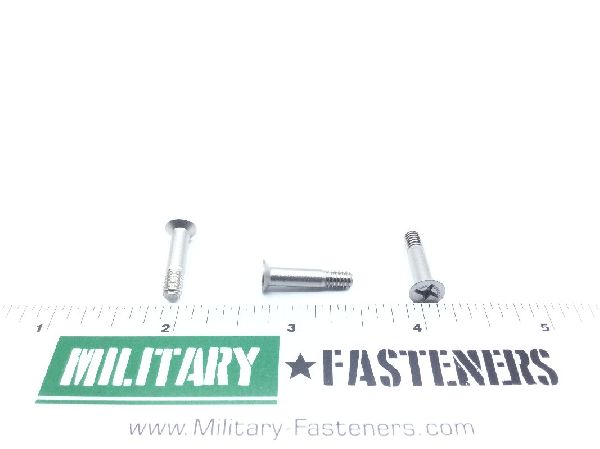

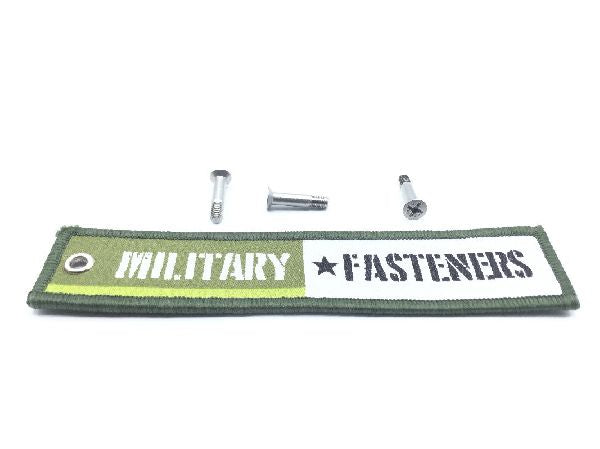

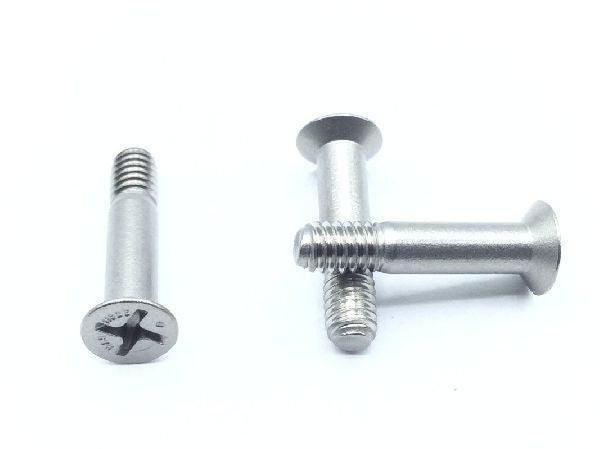

NAS1152E8 Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $7.62

Units per Pack 5

Price per Pack $38.10

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $38.10

Add item to quote

Head Style

Flat countersunk

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.761 inches and 0.791 inches
Grip Diameter: Between 0.1621 inches and 0.1627 inches
Grip Length: Between 0.490 inches and 0.510 inches
Internal Drive Style: Offset cruciform (torque set)
Material Specification: Ams 5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1152 professional/industrial association standard
Surface Finish: 32.0 microinches grip
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.251 inches and 0.301 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Head Diameter: Between 0.280 inches and 0.337 inches
