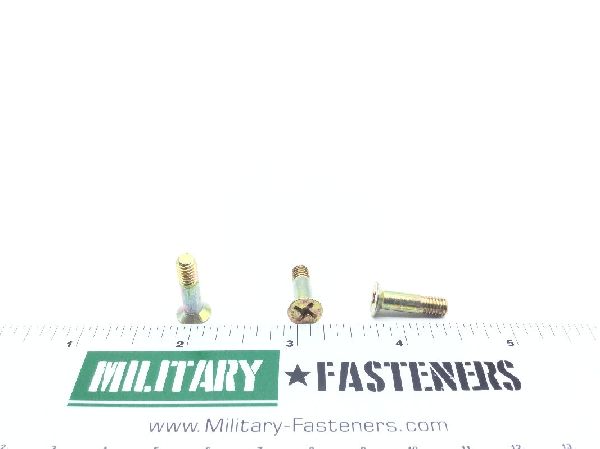

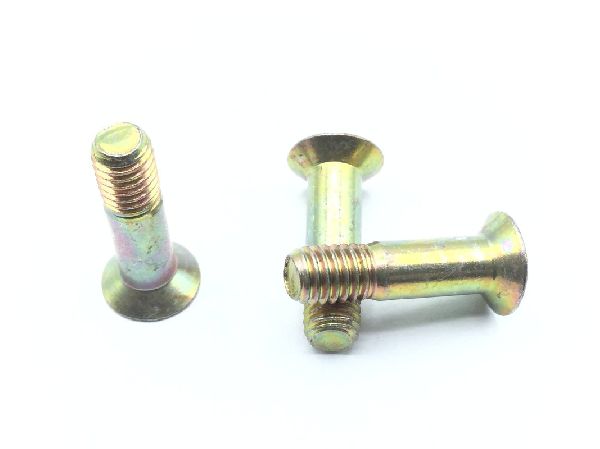

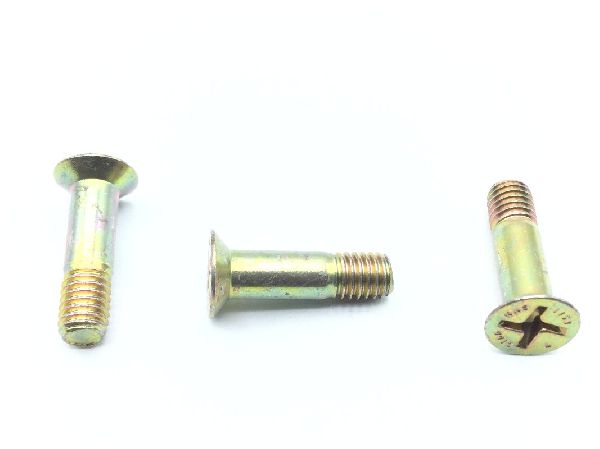

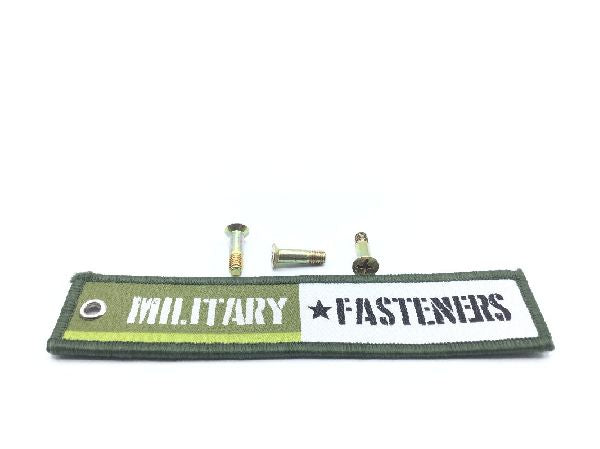

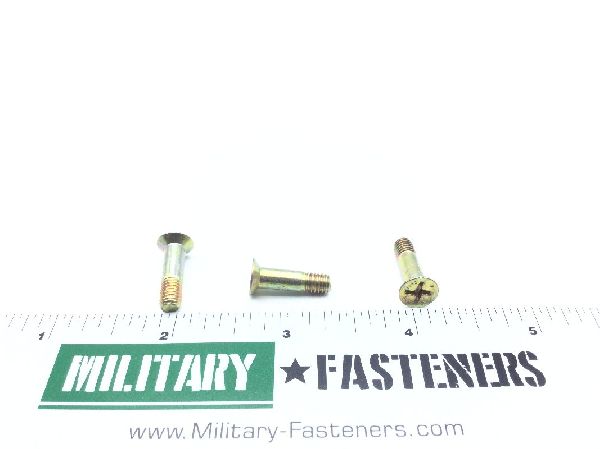

NAS1153-7 Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.70

Units per Pack 50

Price per Pack $35.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $35.00

Add item to quote

Head Style

Flat countersunk

Material

Steel comp e4340 or steel comp 8740 or steel comp 8735 or steel comp 6150 or steel comp 4140 or steel comp 4037

Surface Treatment

Qq-p-416 type 2 class 2 federal specification single treatment response

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.699 inches and 0.729 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 0.428 inches and 0.448 inches
Internal Drive Style: Offset cruciform (torque set)
Min. Tensile Strength (psi): 160000 pounds per square inch
Special Features: Internal drive ribbed
Specification Data: 80205-nas1153 professional/industrial association standard
Surface Finish: 32.0 microinches grip
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.189 inches and 0.301 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.328 inches and 0.385 inches
