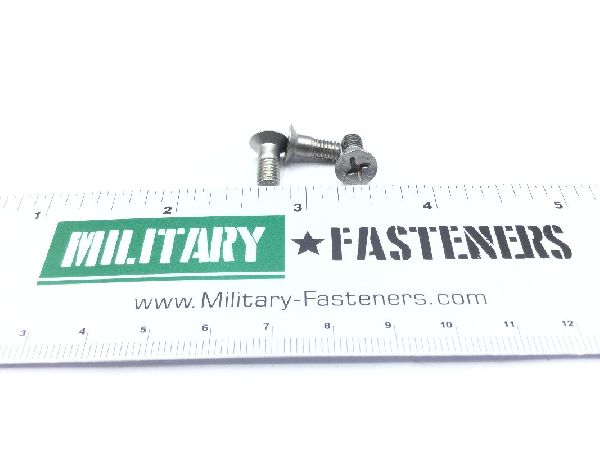

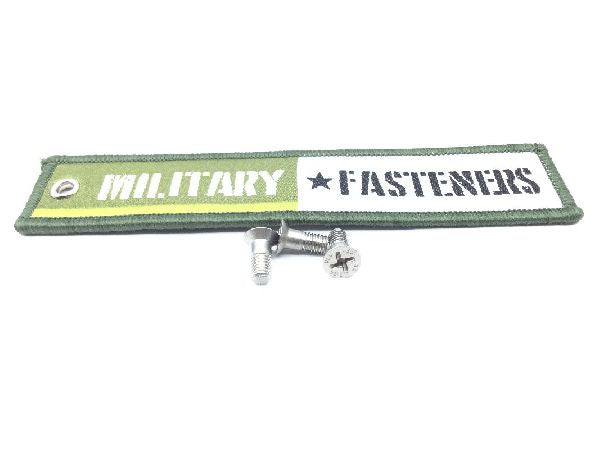

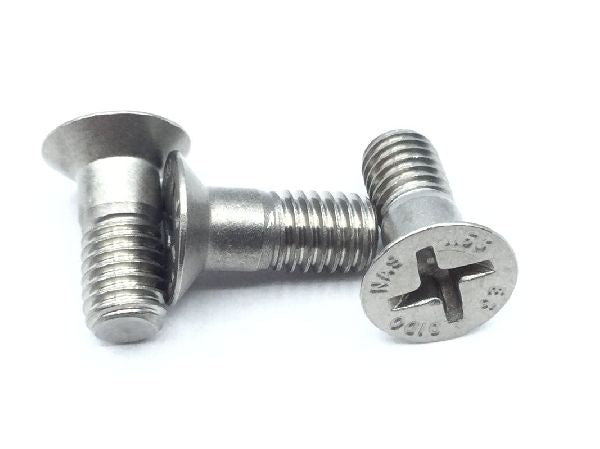

NAS1153E3 Close Tolerance Bolt

NSN: 5305-01-082-2048
Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $1.58

Units per Pack 25

Price per Pack $39.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $39.50

Add item to quote

Head Style

Flat countersunk

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.449 inches and 0.479 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 0.178 inches and 0.198 inches
Internal Drive Style: Offset cruciform (torque set)
Material Specification: Ams 5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1153 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.251 inches and 0.301 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.328 inches and 0.385 inches
