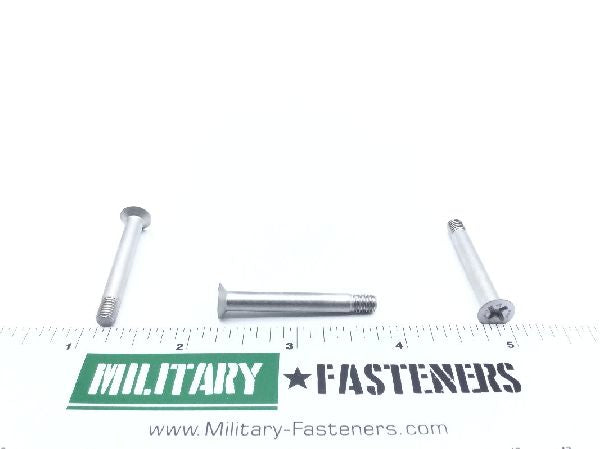

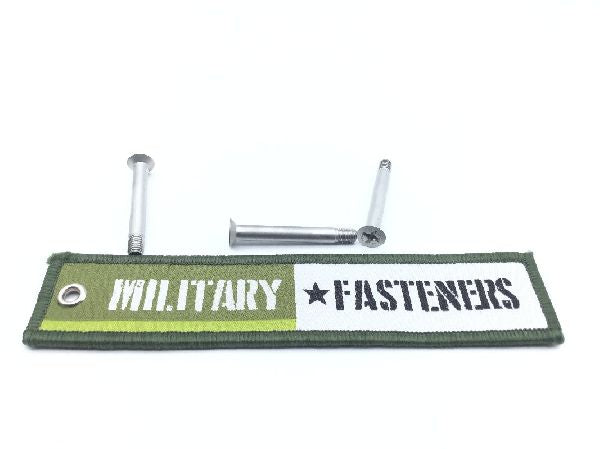

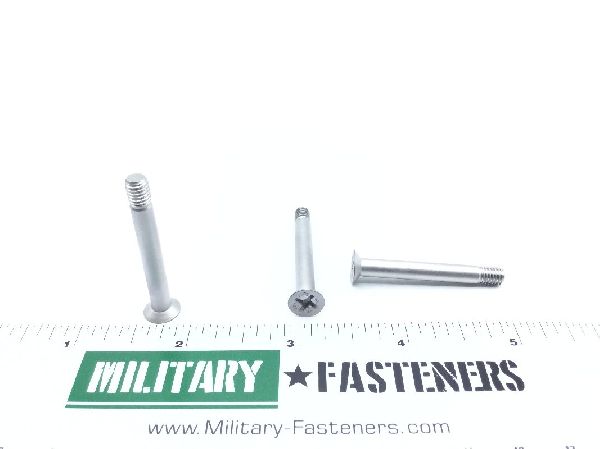

NAS1153V20 Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $5.98

Units per Pack 10

Price per Pack $59.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $59.80

Add item to quote

Head Style

Flat countersunk

Material

Titanium alloy

Thread Class

Countersink Angle: Between 99 degrees and 101 degrees
Fastener Length: Between 1.511 inches and 1.541 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 1.24 inches and 1.26 inches
Internal Drive Style: Offset cruciform (torque set)
Material Specification: Comp 6al-4v assn standard single material response nas621
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1153 professional/industrial association standard
Surface Finish: 32.0 microinches grip
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.251 inches and 0.301 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.328 inches and 0.385 inches
