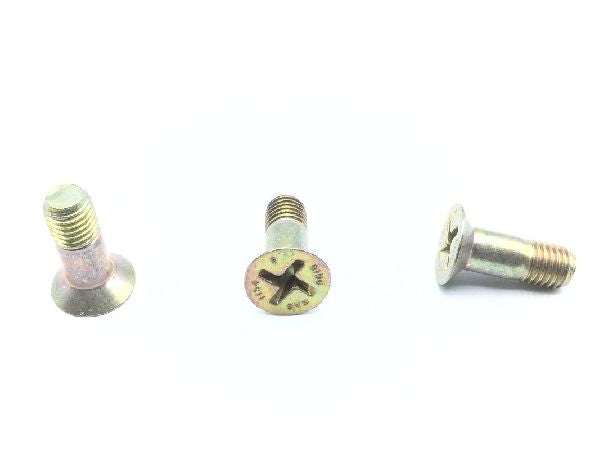

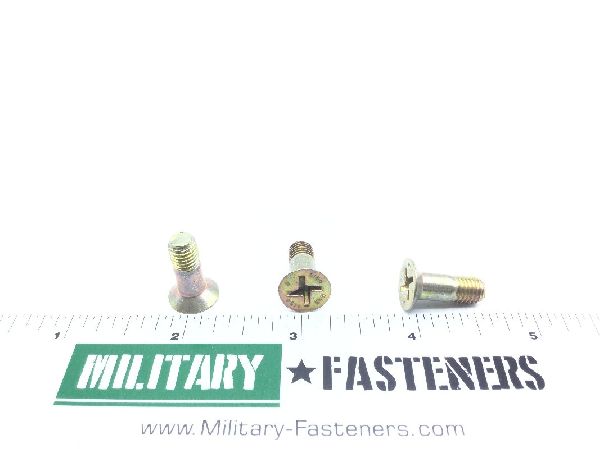

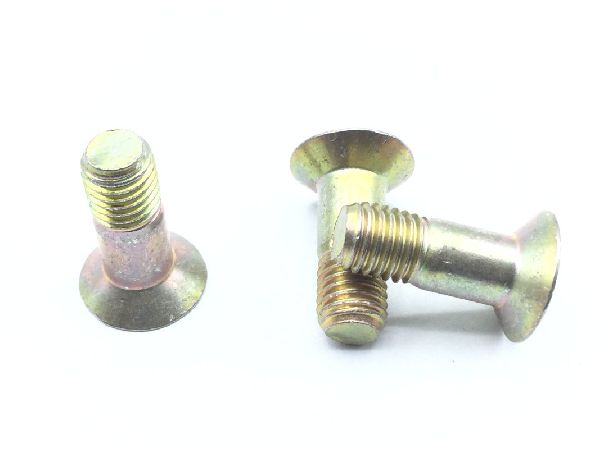

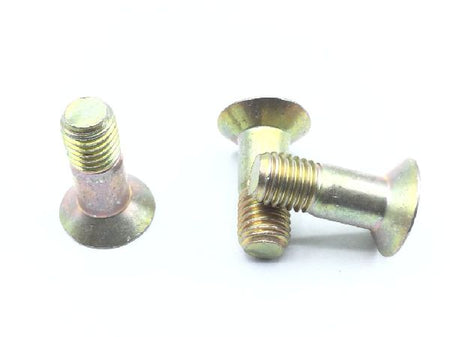

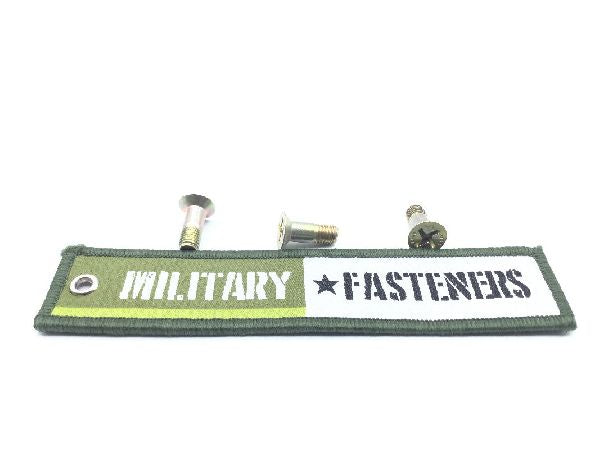

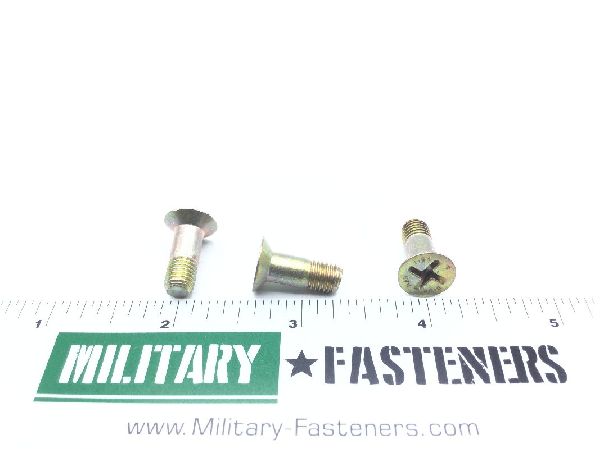

NAS1154-6 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.90

Units per Pack 50

Price per Pack $45.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $45.00

Add item to quote

Head Style

Flat countersunk

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.676 inches and 0.706 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: Between 0.365 inches and 0.385 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style: High-torque
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1154 professional/industrial association standard
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.291 inches and 0.341 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.449 inches and 0.507 inches
