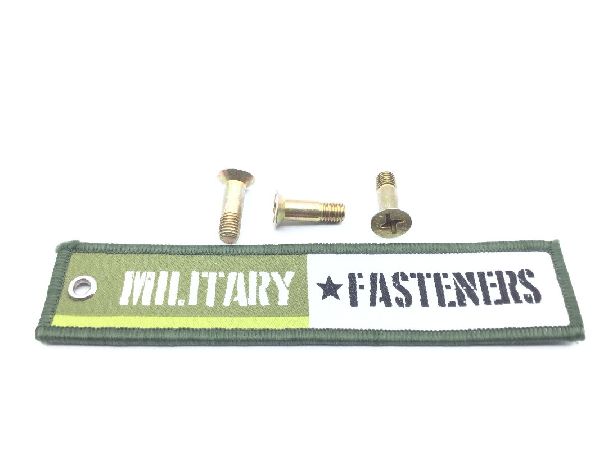

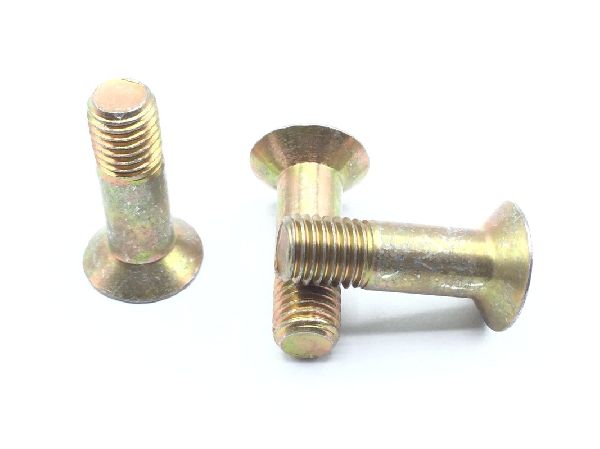

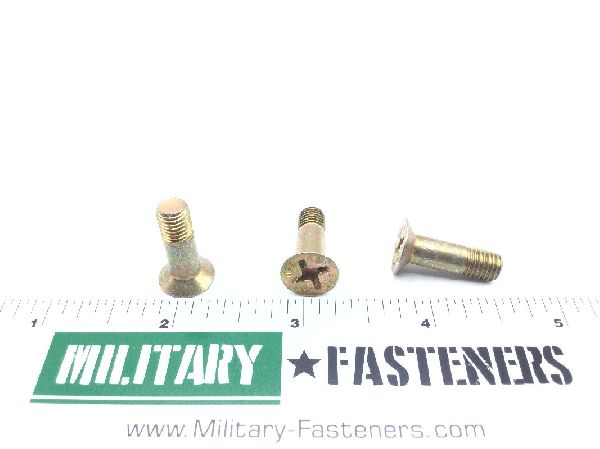

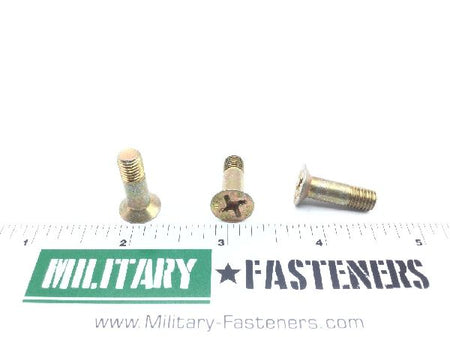

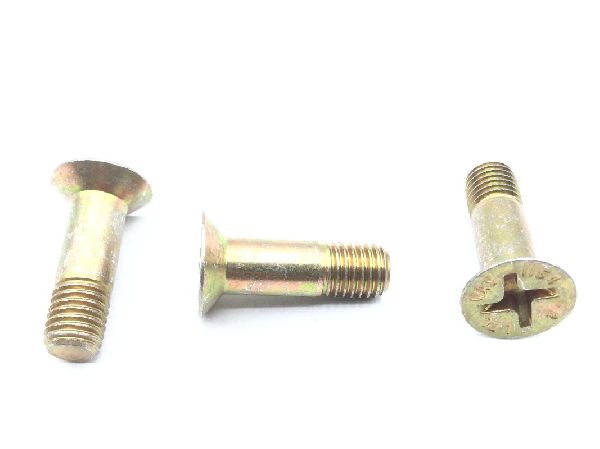

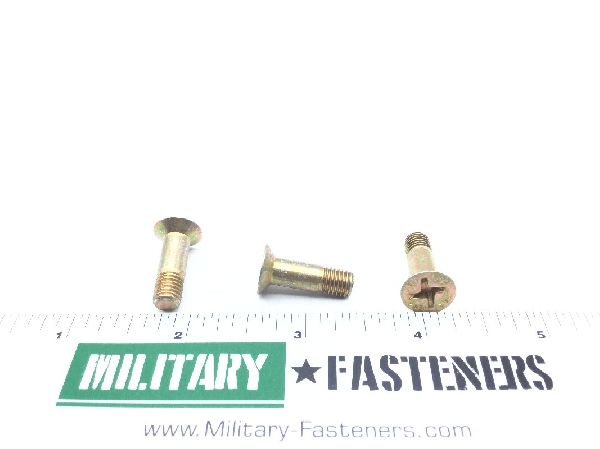

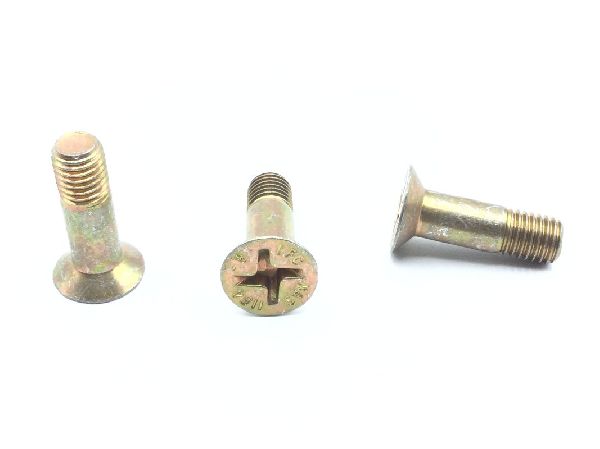

NAS1154-8 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.69

Units per Pack 50

Price per Pack $34.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $34.50

Add item to quote

Head Style

Flat countersunk

Material

Steel comp

Surface Treatment

type 2 class 3 federal specification all treatment responses qq-p-416

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.801 inches and 0.831 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: 0.500 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style: Offset cruciform (torque set)
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1154 professional/industrial association standard
Surface Finish: 32.0 microinches grip
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.316 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.449 inches and 0.507 inches
