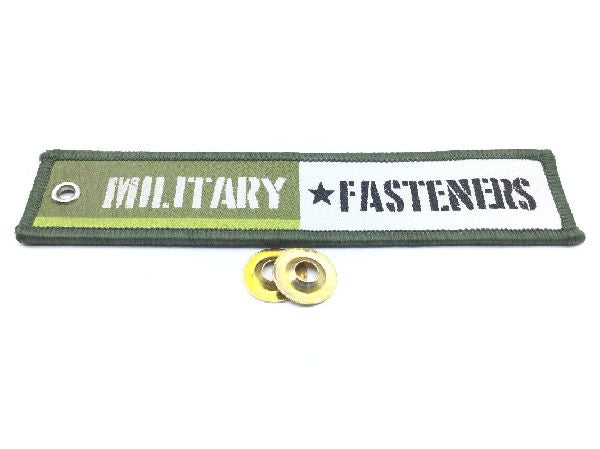

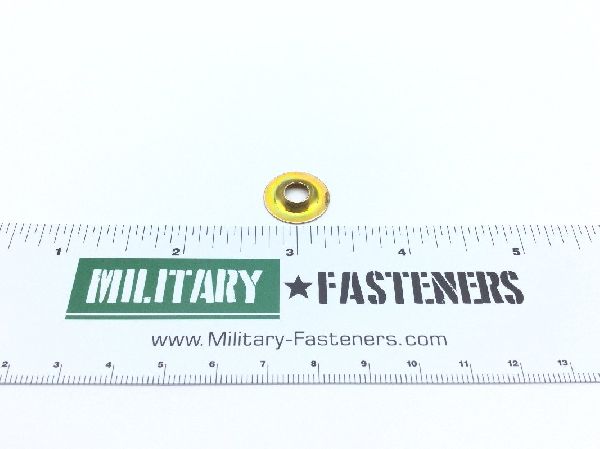

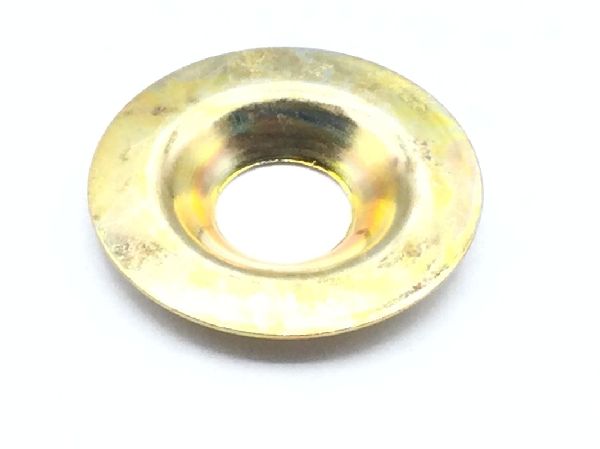

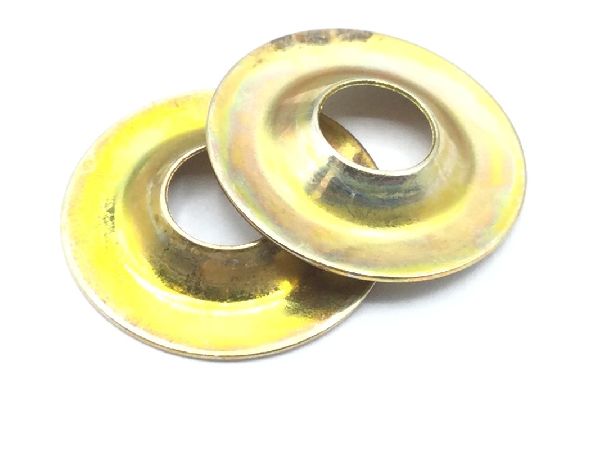

NAS1169-10L Finishing Washer

Product Series: NAS
ECCN: EAR99
Schedule: 7318.22.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Hardness Rating: Between 42.0 rockwell c and 47.0 rockwell c
Material Specification: Mil-s-7947 military specification single material response
Material Thickness: 0.016 inches
Outside Diameter: Between 0.620 inches and 0.645 inches
Overall Height: 0.099 inches
Recess Angle: Between 99.0 degrees and 103.0 degrees
Recess Diameter: Between 0.385 inches and 0.395 inches
Special Features: No. 10 screw size
Specification Data: 80205-nas1169 professional/industrial association standard
Style Designator: Finishing
Hole Diameter: Between 0.192 inches and 0.222 inches
