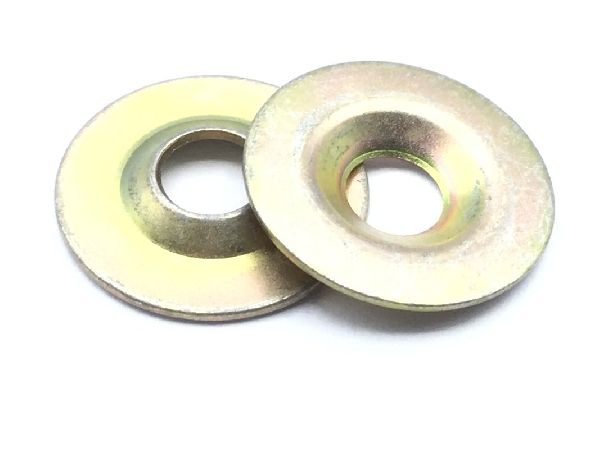

NAS1169-8 Finishing Washer

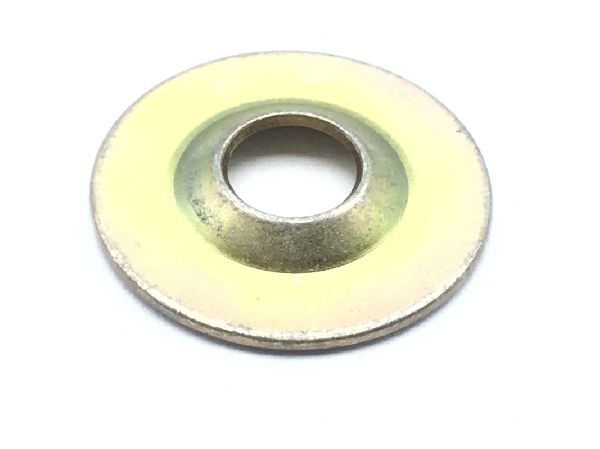

NAS1169-8 Finishing Washer (2)

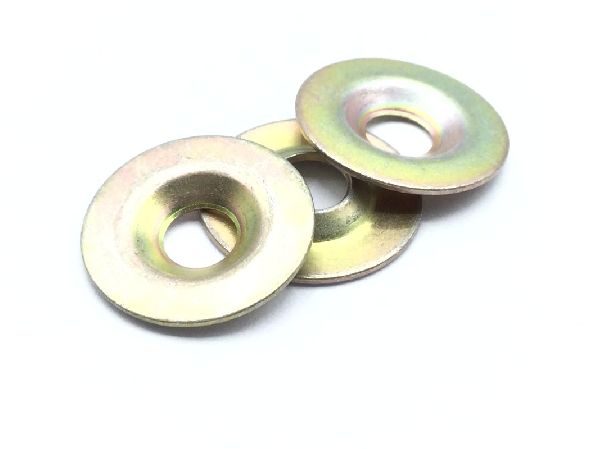

NAS1169-8 Finishing Washer (3)

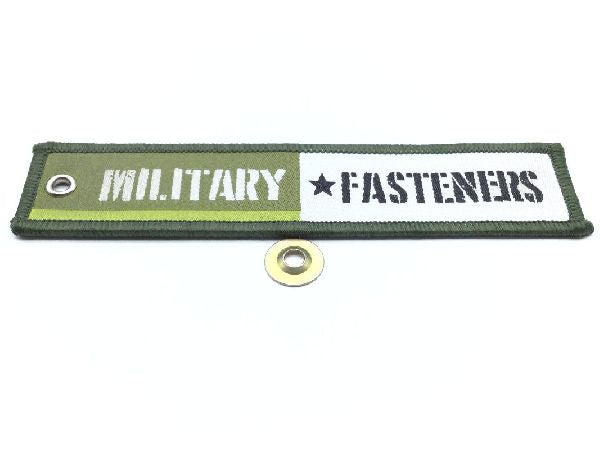

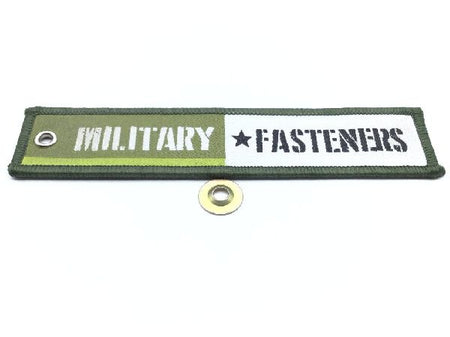

NAS1169-8 Finishing Washer (4)

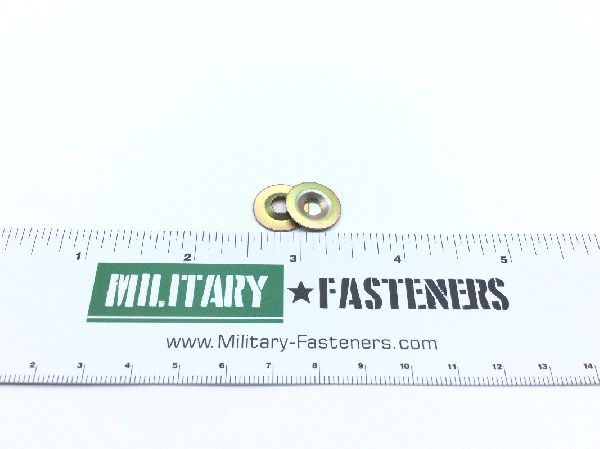

NAS1169-8 Finishing Washer (5)

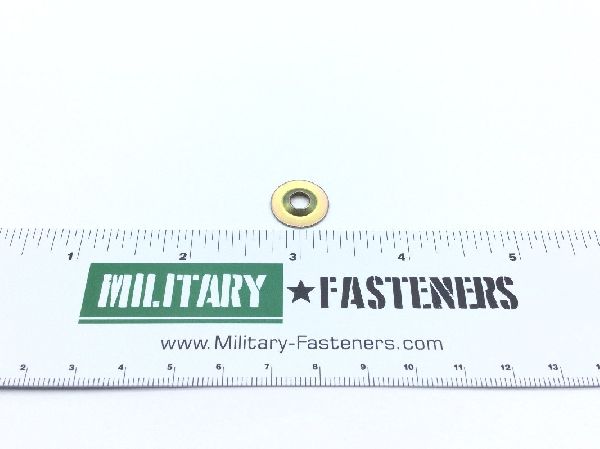

NAS1169-8 Finishing Washer (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1169-8 Finishing Washer

Product Series: NAS
ECCN: EAR99
Schedule: 7318.22.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Hardness Rating: Between 42.0 rockwell c and 47.0 rockwell c
Material Specification: Cond a military specification single material response mil-s-7947
Material Thickness: 0.025 inches
Outside Diameter: Between 0.557 inches and 0.582 inches
Overall Height: 0.094 inches
Recess Angle: Between 99.0 degrees and 103.0 degrees
Recess Diameter: Between 0.332 inches and 0.342 inches
Style Designator: Finishing
Hole Diameter: Between 0.166 inches and 0.196 inches
