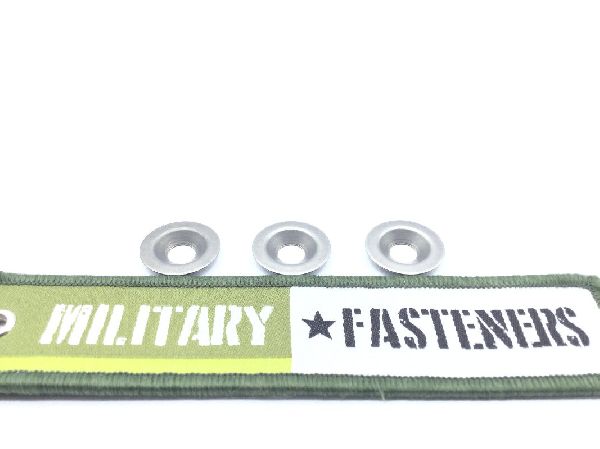

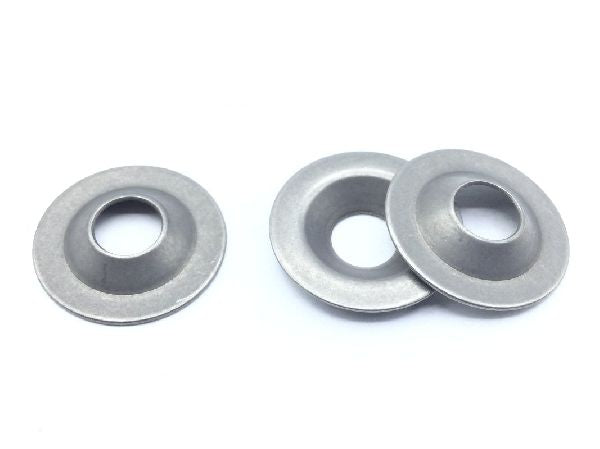

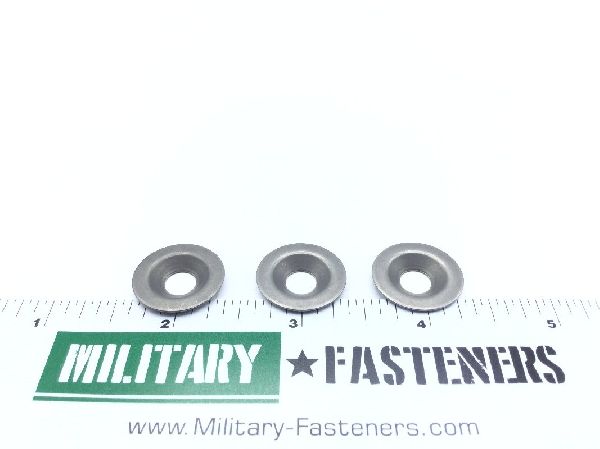

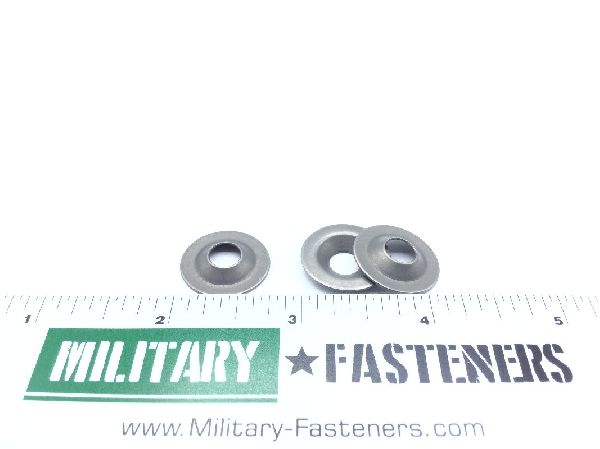

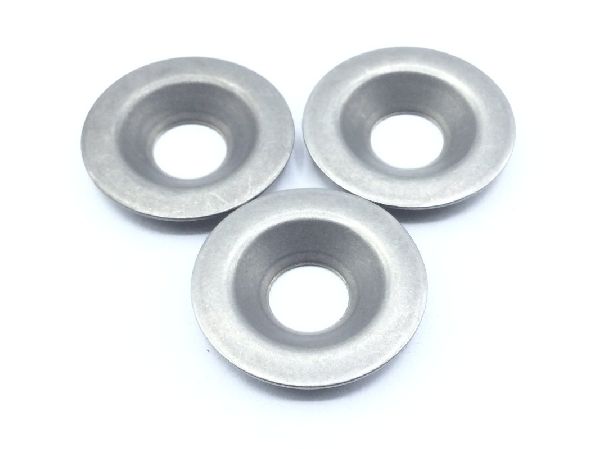

NAS1169C416 Finishing Washer

Product Series: NAS
ECCN: EAR99
Schedule: 8112.29.0000

Price per Unit $1.50

Units per Pack 25

Price per Pack $37.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $37.50

Add item to quote

Surface Treatment

Qq-p-35 federal specification single treatment response

Material Specification: Ams 5732 assn standard single material response
Material Thickness: Between 0.022 inches and 0.028 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Outside Diameter: Between 0.745 inches and 0.770 inches
Overall Height: 0.132 inches
Recess Angle: Between 99.0 degrees and 103.0 degrees
Recess Diameter: Between 0.507 inches and 0.517 inches
Specification Data: 80205-nas1169 professional/industrial association standard
Style Designator: Finishing
Hole Diameter: Between 0.252 inches and 0.282 inches
