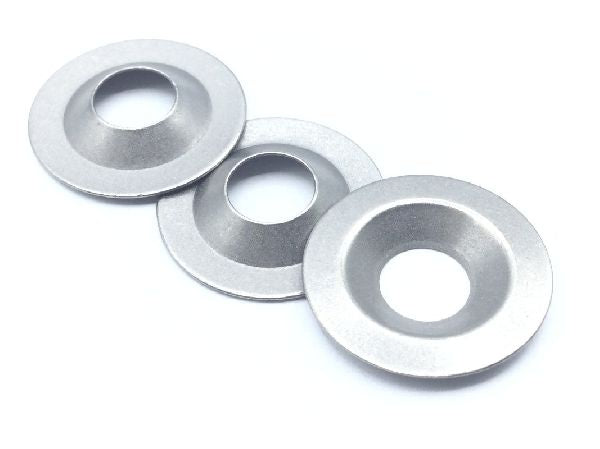

NAS1169C416L Finishing Washer

Product Series: NAS
ECCN: EAR99
Schedule: 8112.29.0000

Price per Unit $0.60

Units per Pack 100

Price per Pack $60.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $60.00

Add item to quote

Material

Stainless Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Material Specification: A286 per ams5735 assn standard single material response
Material Thickness: Between 0.014 inches and 0.018 inches
Outside Diameter: Between 0.745 inches and 0.770 inches
Overall Height: 0.125 inches
Recess Angle: Between 99.0 degrees and 103.0 degrees
Recess Diameter: Between 0.507 inches and 0.517 inches
Specification Data: 80205-nas1169 professional/industrial association standard
Style Designator: Finishing
Hole Diameter: Between 0.252 inches and 0.282 inches
