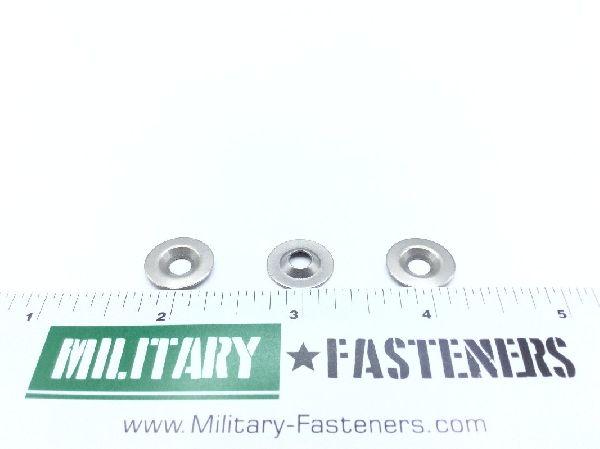

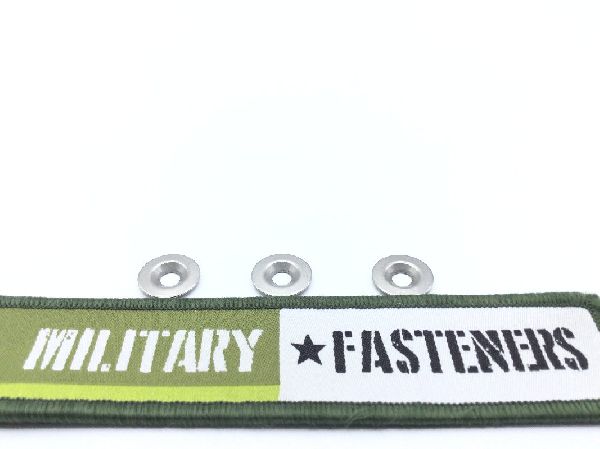

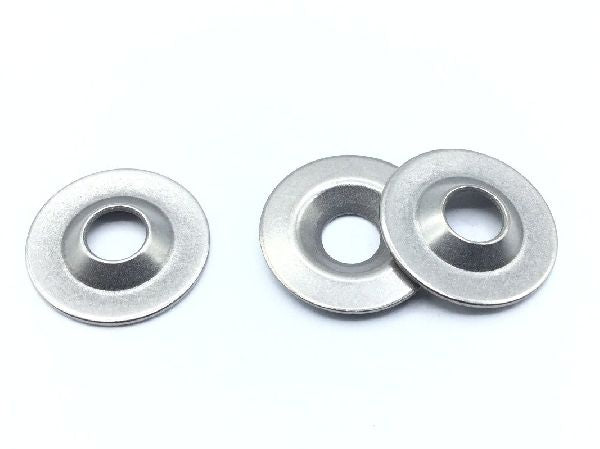

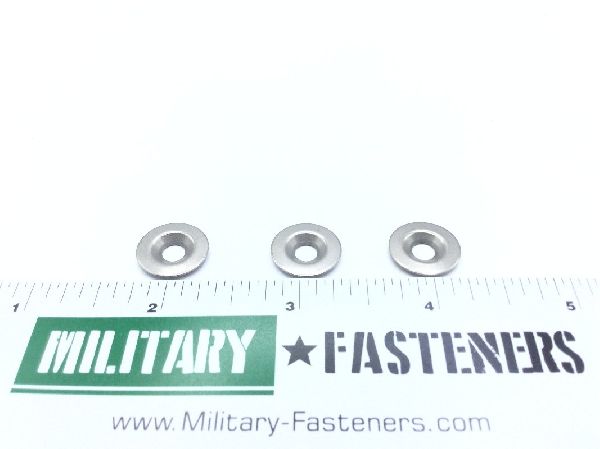

NAS1169C8 Finishing Washer

Product Series: NAS
ECCN: EAR99
Schedule: 7318.22.0000

Price per Unit $0.68

Units per Pack 50

Price per Pack $34.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $34.00

Add item to quote

Material

Steel comp 1095

Hardness Rating: Between 42.0 rockwell c and 47.0 rockwell c
Material Thickness: 0.016 inches
Outside Diameter: Between 0.557 inches and 0.582 inches
Overall Height: 0.087 inches
Recess Angle: Between 99.0 degrees and 103.0 degrees
Recess Diameter: Between 0.332 inches and 0.342 inches
Specification Data: 80205-nas1169c8 professional/industrial association standard
Style Designator: Finishing
Hole Diameter: Between 0.166 inches and 0.196 inches
