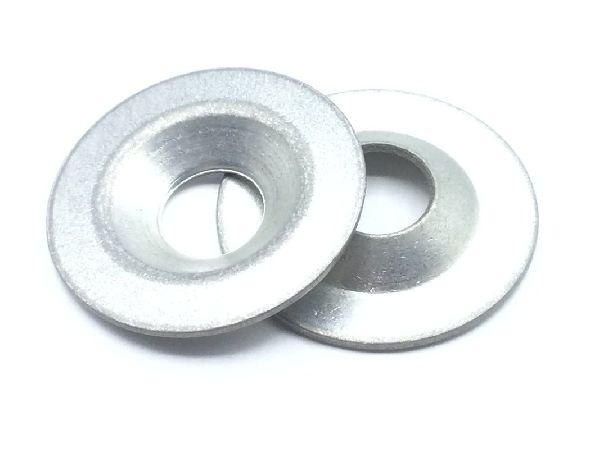

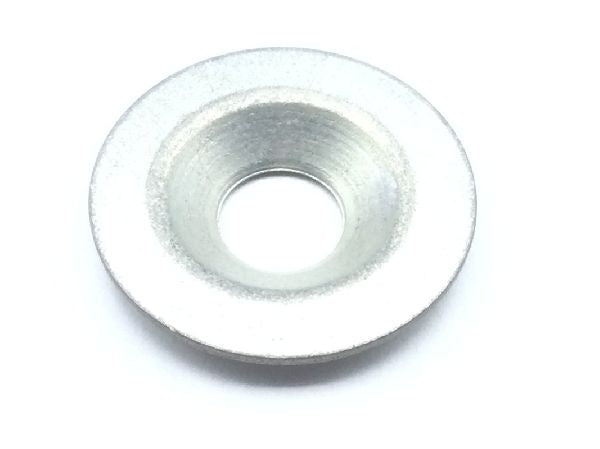

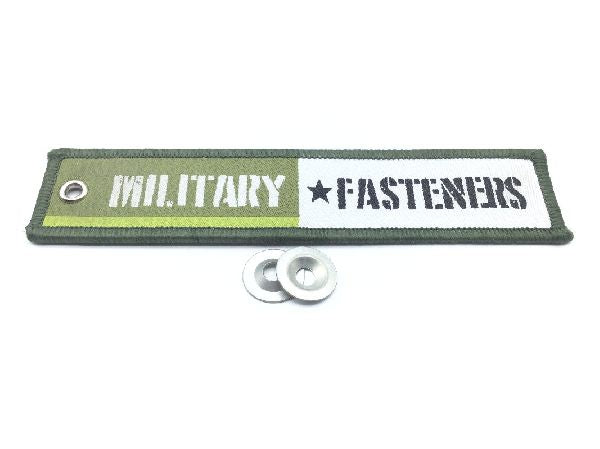

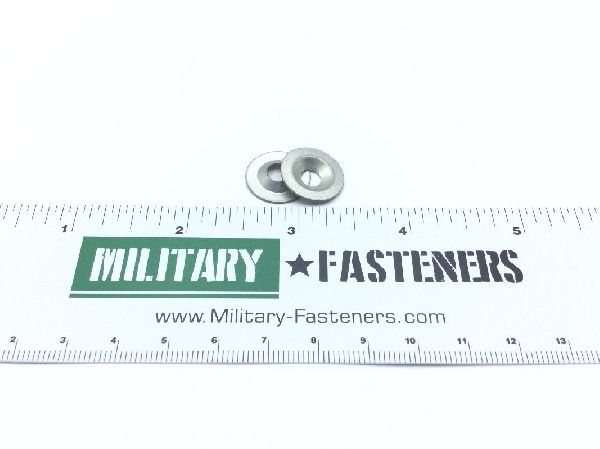

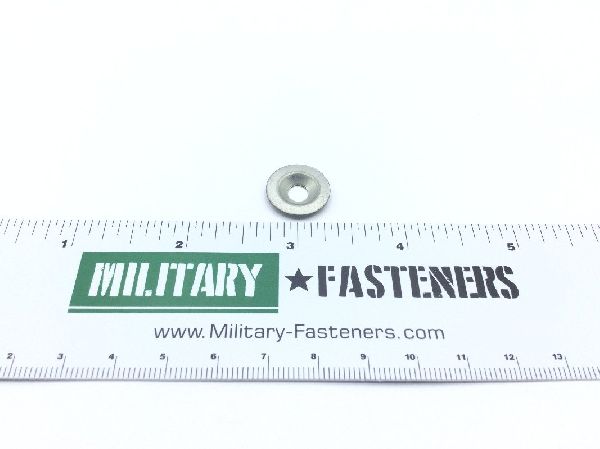

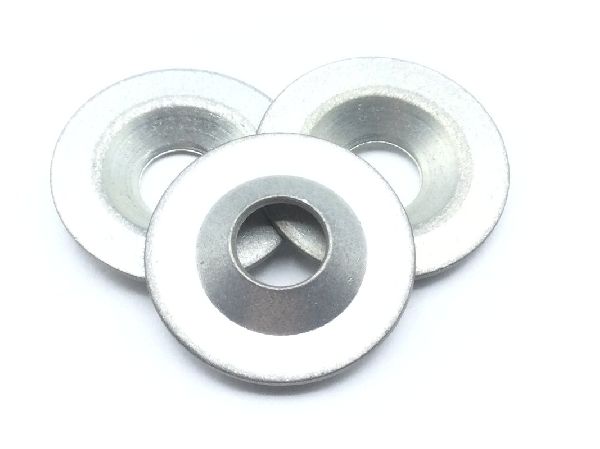

NAS1169DD10 Finishing Washer

NAS1169DD10 Finishing Washer (2)

NAS1169DD10 Finishing Washer (3)

NAS1169DD10 Finishing Washer (4)

NAS1169DD10 Finishing Washer (5)

NAS1169DD10 Finishing Washer (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1169DD10 Finishing Washer

Product Series: NAS
ECCN: EAR99
Schedule: 7318.22.0000

Price per Unit $0.44

Units per Pack 100

Price per Pack $44.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $44.00

Add item to quote

Material

Aluminum alloy 2024

Surface Treatment

Mil-a-8625 military specification single treatment response

Material Specification: Qq-a-250/5 t3 or t4 federal specification single material response
Material Thickness: 0.025 inches
Outside Diameter: Between 0.620 inches and 0.645 inches
Overall Height: 0.101 inches
Recess Angle: 103.0 degrees
Recess Diameter: Between 0.385 inches and 0.395 inches
Specification Data: 80205-nas1169 professional/industrial association standard
Style Designator: Finishing
Hole Diameter: Between 0.192 inches and 0.222 inches
